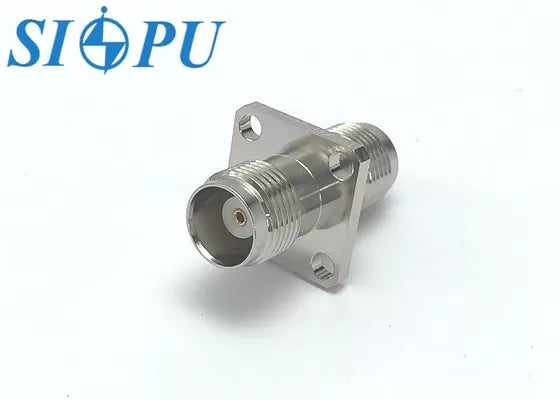

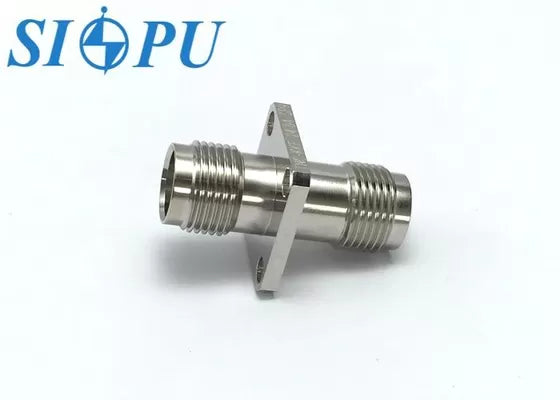

TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle

TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle

Model: TNC-KKF-1

Product Overview

RF coaxial adapters with various specifications ensure proper interconnection between different series or between connectors within the same series. These adapters typically serve as bridge components to maintain signal continuity and mechanical compatibility in RF systems.

Scope of Application
Used for system-level connection and conversion, commonly found in test cables, measurement setups, and RF instrumentation.

Product Features

• Both ends interface with standard TNC male connectors
• Flange mount receptacle design for secure installation
• Strong environmental resistance and mechanical durability
• High reliability and excellent electrical performance

🔧 Technical Specifications

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
	Outer conductor	≤0.2mΩ	Durability	500times

Materials and Surface Treatment

Center conductor	Beryllium bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, nickel plating	/	/

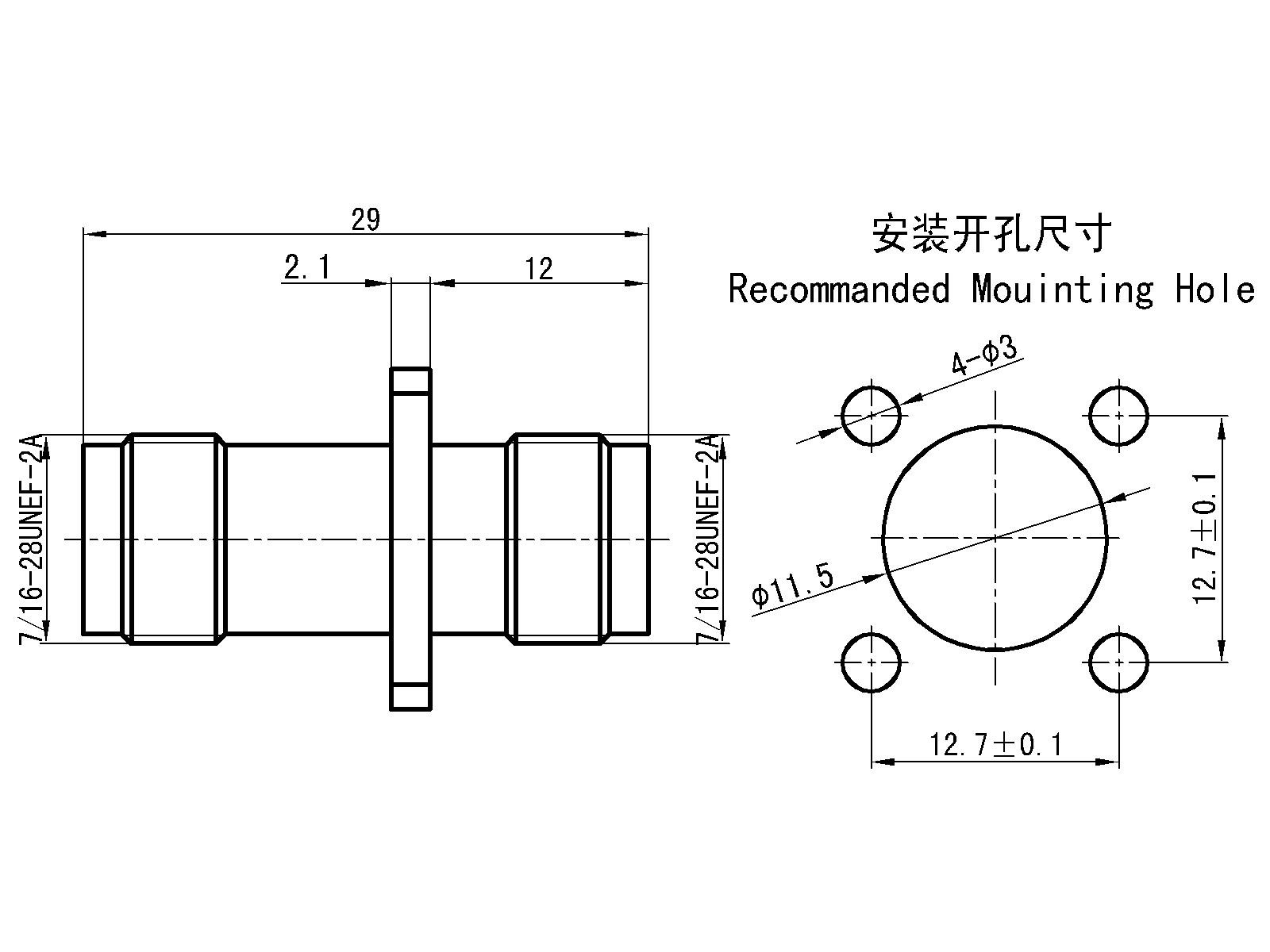

Product Specifications
