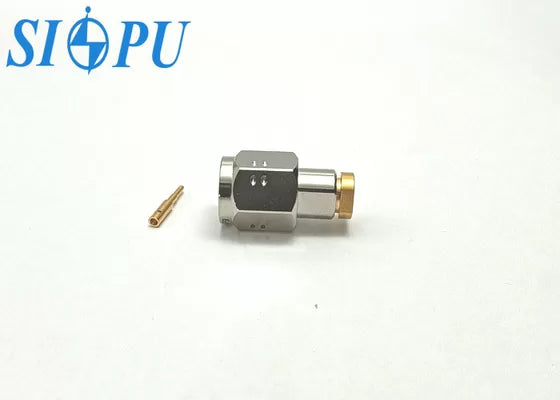

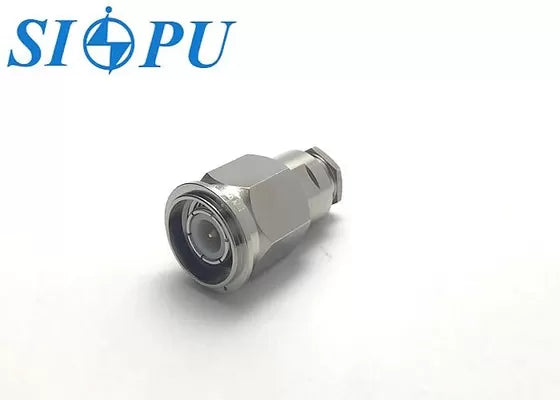

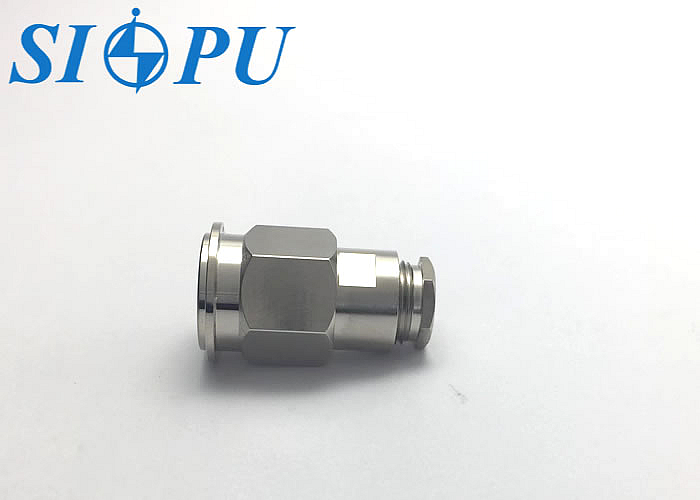

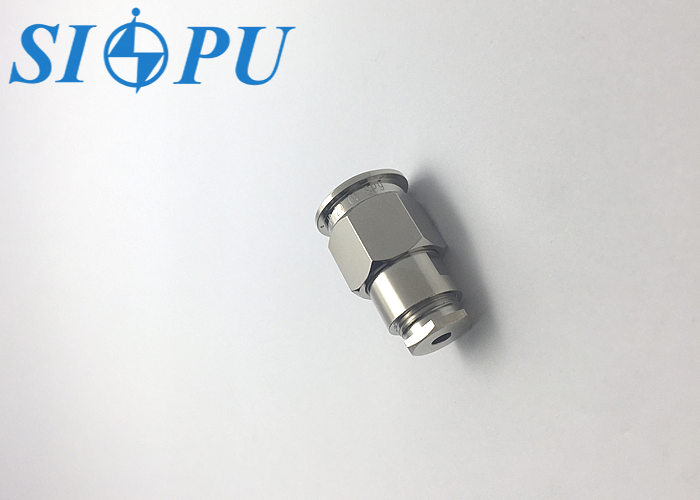

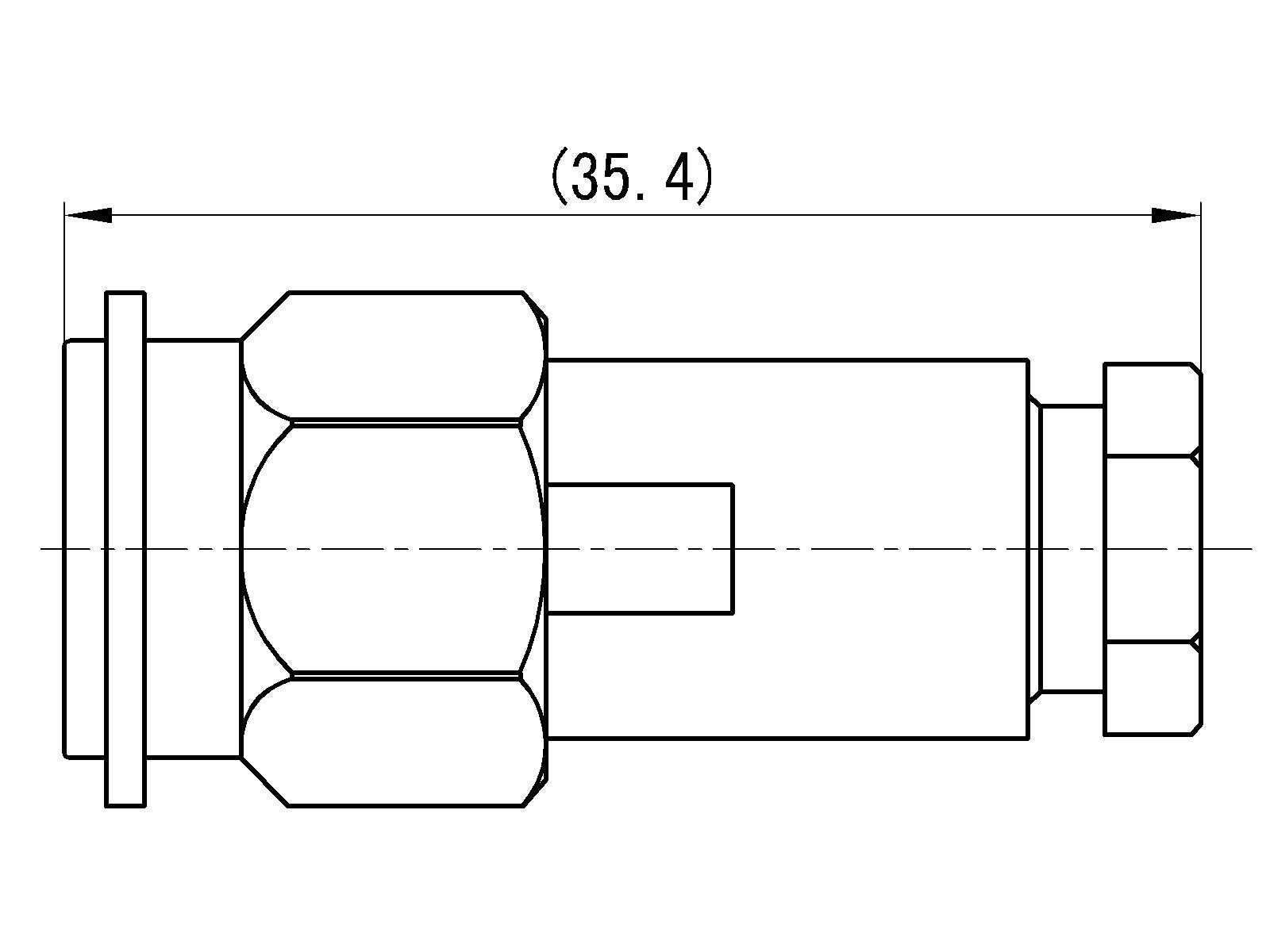

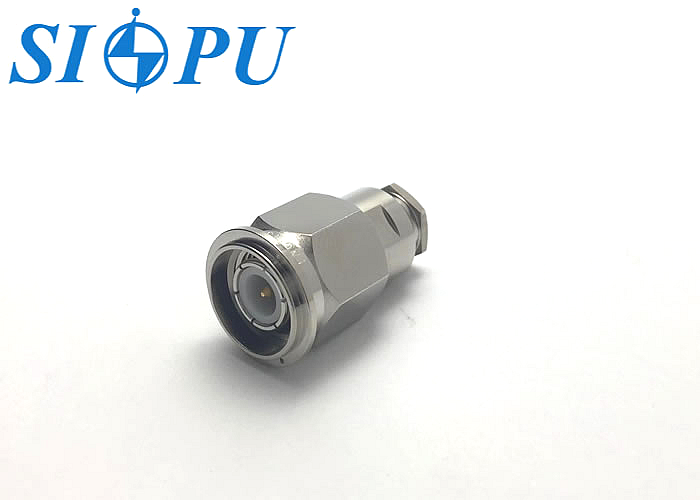

TNC Male RF Coaxial Connector – Nickel Plated, Compatible with RG316/U Cable

TNC Male RF Coaxial Connector – Nickel Plated, Compatible with RG316/U Cable

Model: TNC-J3-1

Product Overview

The TNC series is a threaded RF coaxial connector designed for small to medium-power applications. Developed in accordance with MIL-C-39012 and IEC 60169-17 standards, it is the threaded variant of the BNC series and is particularly well-suited for mobile communication equipment operating in high-vibration environments.

Application Scope:

Communication systems, radio equipment, instrumentation, and other RF applications.

Product Features:

•     Hexagonal threaded coupling for secure mechanical connection
•     Compatible with RG316/U coaxial cable
•     Wide operating frequency bandwidth
•     Reliable electrical contact and low signal loss
•     Excellent vibration resistance and long-term durability

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
	Outer conductor	≤0.2mΩ	Durability	500times

Materials and Surface Treatment

Center conductor	Bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, nickel plating	/	/
