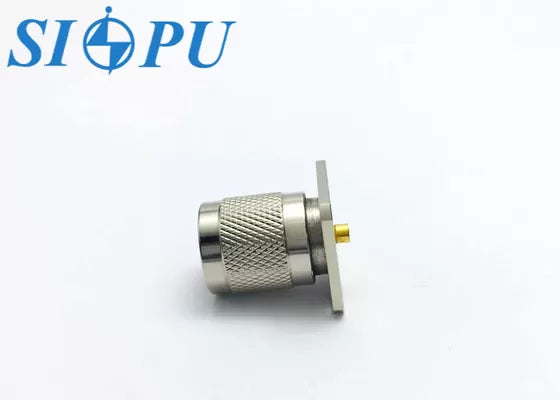

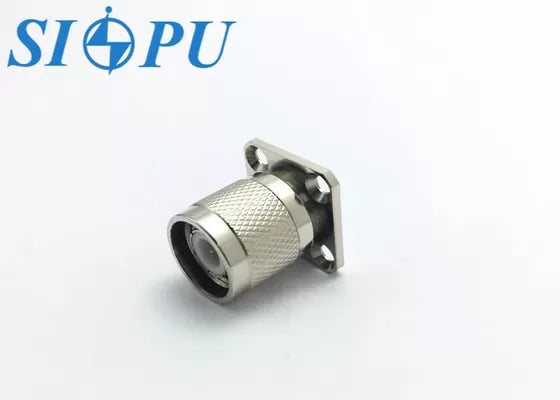

TNC Male RF Coaxial Connector – Flange Mount, Straight Type

TNC Male RF Coaxial Connector – Flange Mount, Straight Type

Model: TNC-50JFD-4

Product Overview

TNC series connectors are small to medium-power RF coaxial connectors with a threaded coupling mechanism, developed and manufactured in compliance with MIL-C-39012 and IEC 60169-17 standards. As the threaded variant of the BNC series, they offer excellent electrical performance, wide frequency bandwidth, and highly reliable connections. These connectors are fully interchangeable with similar international products.

Applications:
Ideal for use in instrumentation, communication systems, radio equipment, and other RF transmission environments.

Product Features:

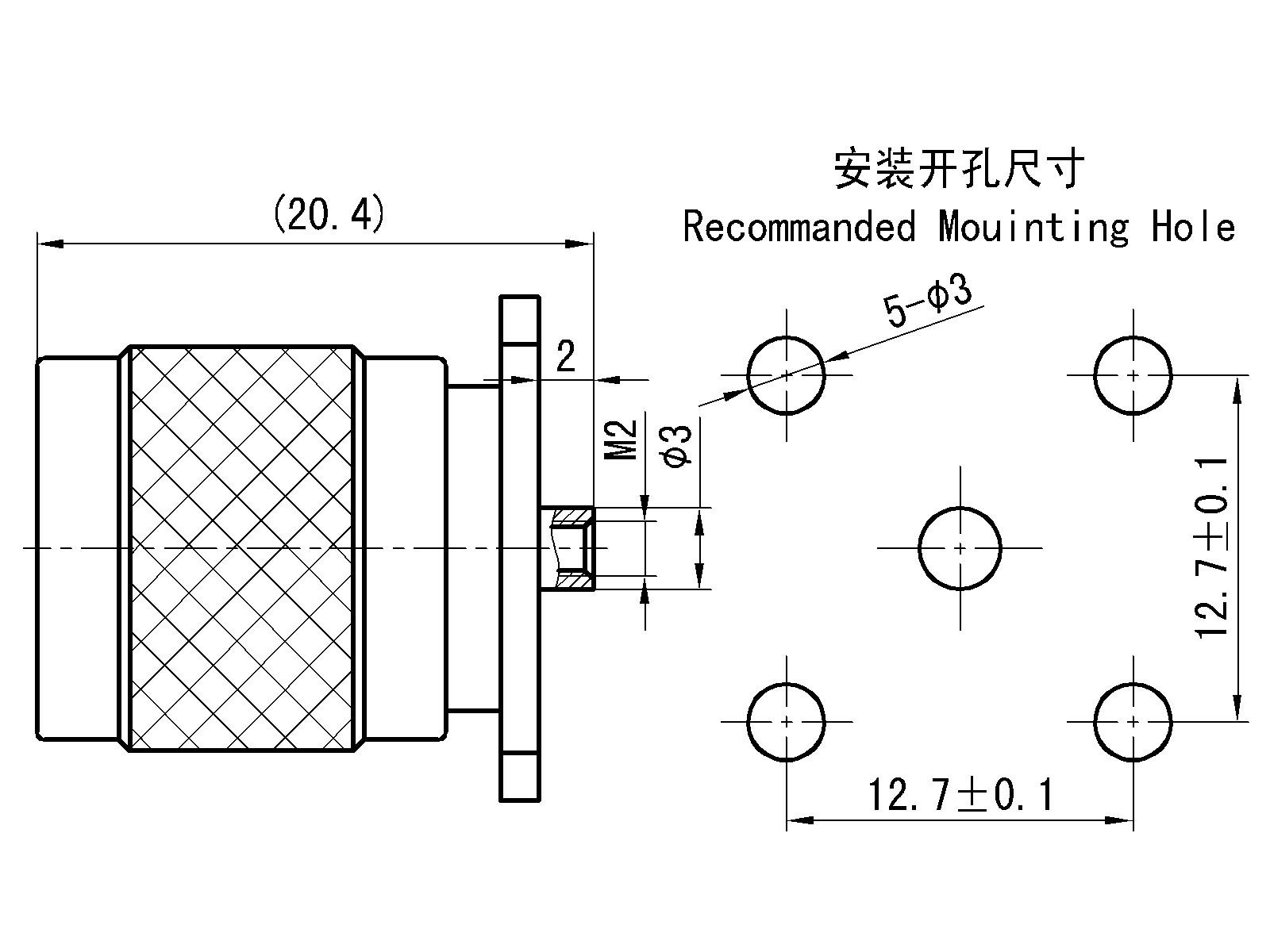

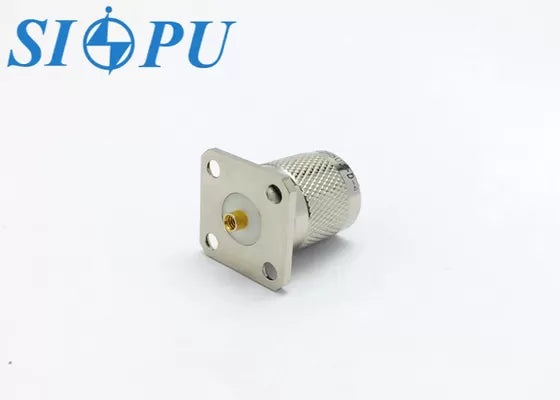

•     Four-hole flange-mounted male connector
•     Tail-end inner conductor with M2 threaded hole (5 mm depth)
•     Wide operating frequency range
•     Superior vibration resistance
•     Secure and stable connection
