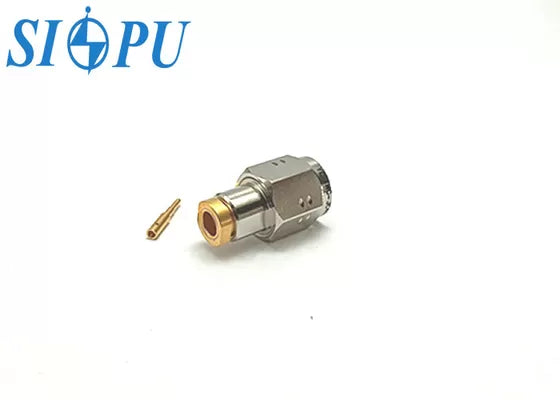

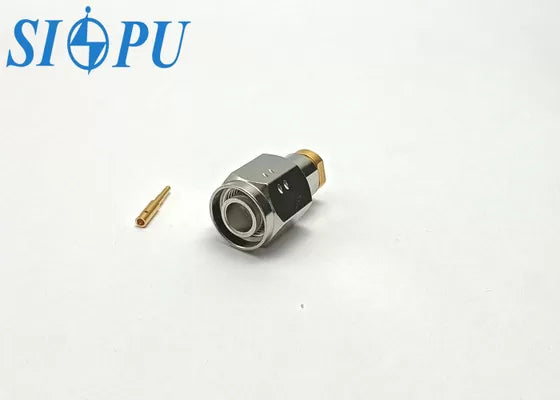

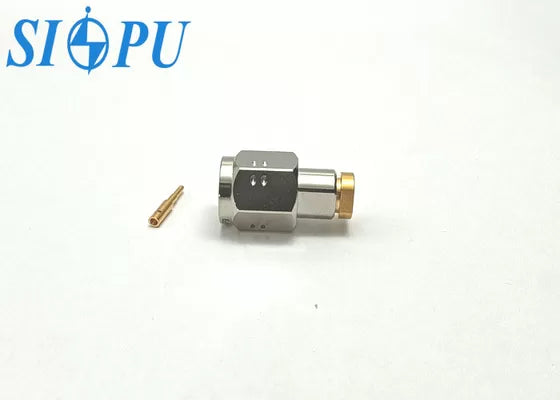

TNC Male RF Coaxial Connector – Compatible with CXN3449 Cable

TNC Male RF Coaxial Connector – Compatible with CXN3449 Cable

Model: TNC-JC48

Product Overview

The TNC series is a threaded RF coaxial connector designed for small to medium power applications. As the threaded variant of the BNC series, it offers enhanced vibration resistance, making it ideal for use in mobile communication systems and other environments subject to mechanical stress.

Applications:

Widely used in communication systems, antennas, radio equipment, and other RF transmission fields.

Product Features:

•     Threaded coupling design with microbore structure
•     Compatible with CXN3449 coaxial cable
•     Excellent vibration resistance and mechanical stability
•     Wide operating frequency bandwidth
•     Reliable electrical performance and durable connection integrity

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
	Outer conductor	≤0.2mΩ	Durability	500times

Materials and Surface Treatment

Center conductor	Bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, nickel plating	/	/
