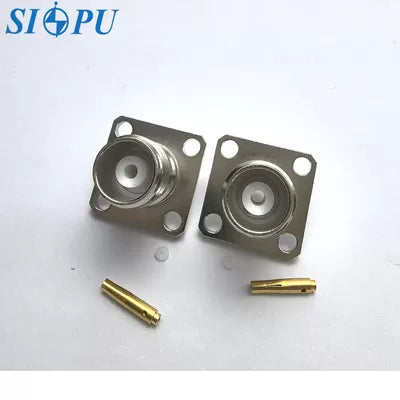

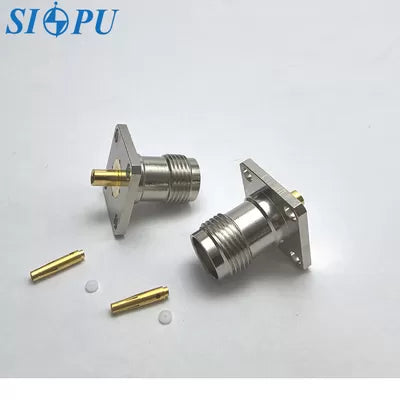

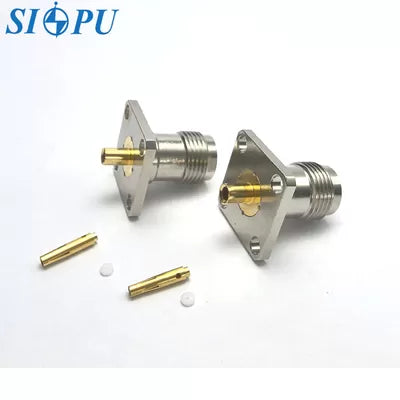

TNC Female RF Coaxial Connector – Flange Mount, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

TNC Female RF Coaxial Connector – Flange Mount, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

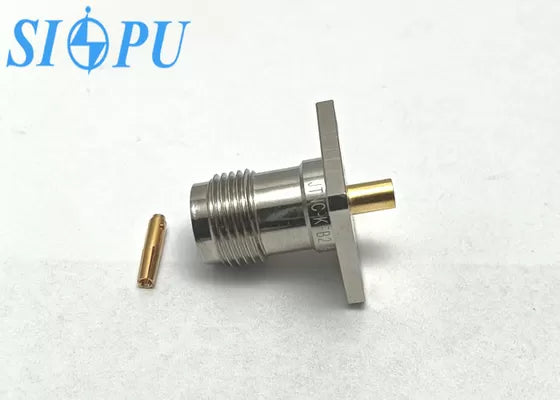

Model: TNC-KFB2

Product Overview

The TNC series is a small to medium-power RF coaxial connector featuring a threaded coupling mechanism. Developed in accordance with MIL-C-39012 and IEC 60169-17 standards, it offers excellent electrical performance, wide frequency bandwidth, and high connection reliability. It is especially suitable for use in mobile communication equipment operating under vibration and is interchangeable with similar international products.

Applications

•     Radio communication equipment
•     Instrumentation
•     Wireless and mobile communication systems

Product Features

•     Four-hole flange mounting structure
•     Compatible with 2# semi-rigid / semi-flexible RF coaxial cable
•     Reliable threaded connection with strong vibration resistance
•     Wide operating bandwidth
•     Excellent and stable electrical performance

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
	Outer conductor	≤0.2mΩ	Durability	500times



Materials and Surface Treatment

Center conductor	Bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, nickel plating	/	/

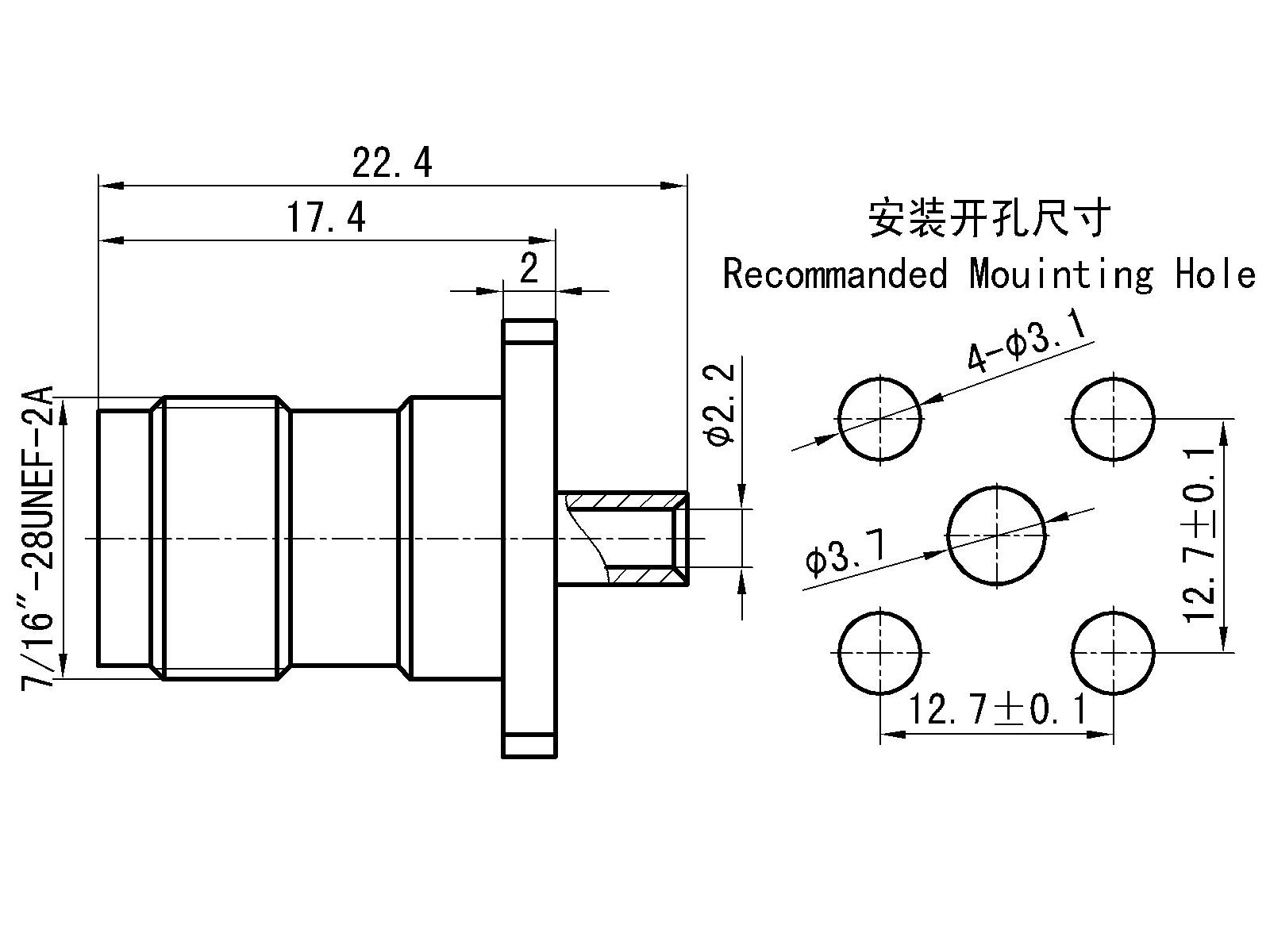

Product Specifications
