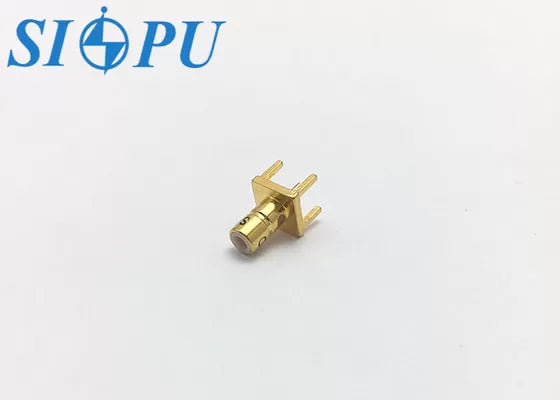

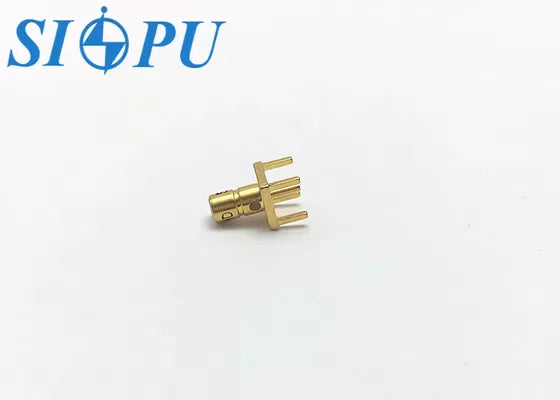

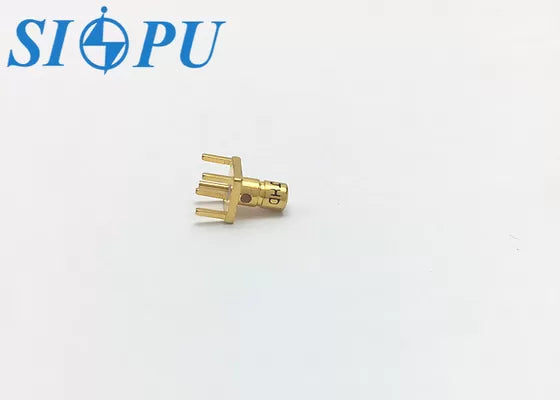

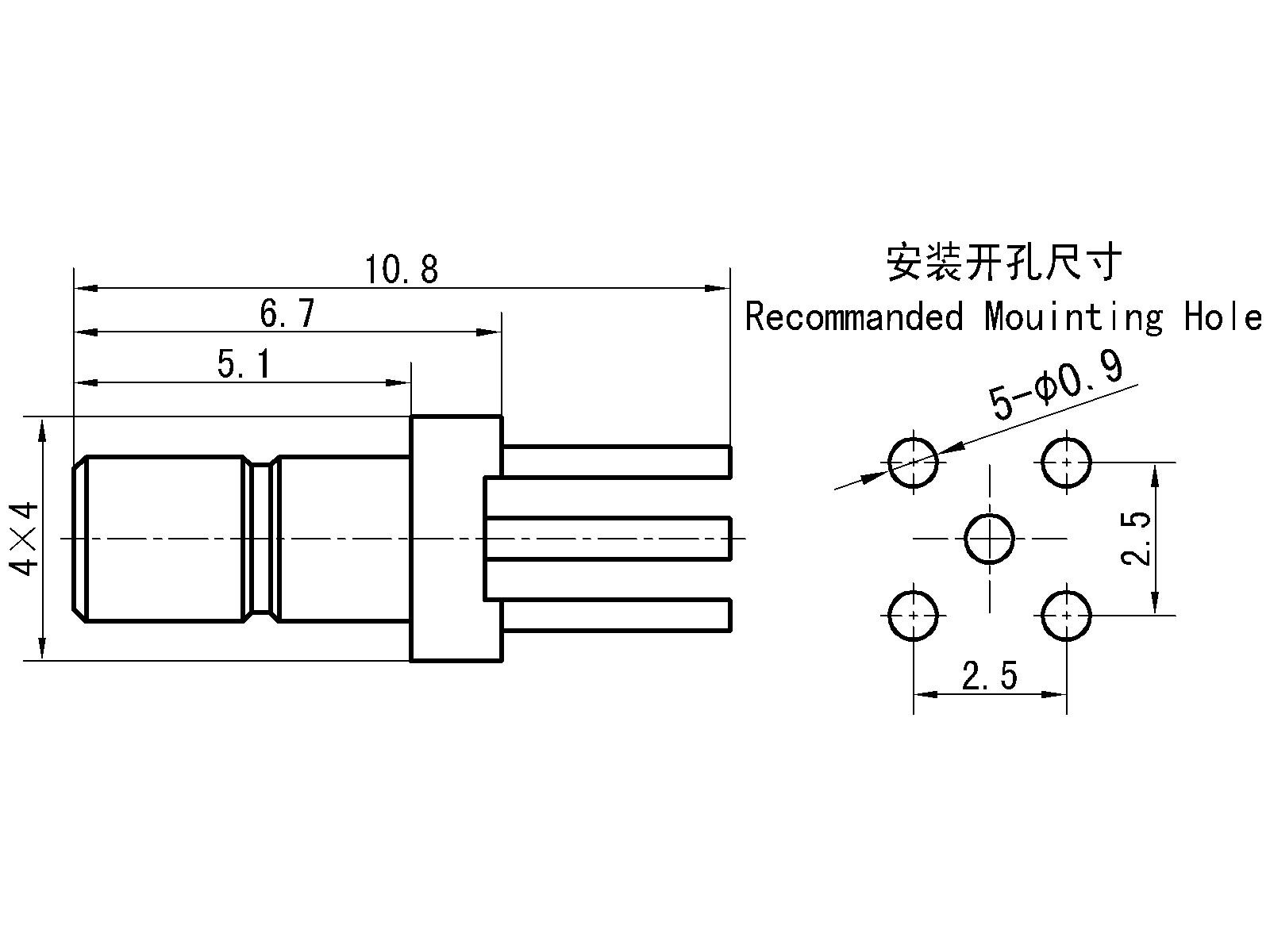

SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount

SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount

Model: SSMB-JHD

The SSMB series RF coaxial connector is a miniature push-in connector that shares structural similarities with the SMB series but features a smaller form factor. It offers the advantages of compact size, light weight, and easy, reliable connection. This series is ideal for RF coaxial cable connections in micro radio devices and electronic instruments.

Applications

• Wireless communication equipment
• Electronic instruments
• Compact RF systems and modules

Product Features

• Straight PCB soldering structure
• Lightweight and space-saving design
• Quick insertion and removal via snap-on mechanism
• High reliability and ease of integration in dense circuit layouts

🔧 Technical Specifications

Electrical property			Temperature range	-55～+155℃
Characteristic impedance		50Ω	Frequency range	DC-3GHz
Dielectric withstanding voltage		500V	VSWR	≤1.35
Insulation resistance		≥1000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
	Outer conductor	≤2.5mΩ	Durability	500times

⚙ Materials & Finish



Center conductor	Bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, gold plating	/	/
