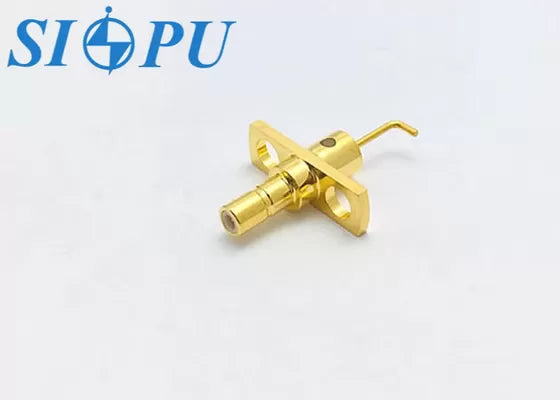

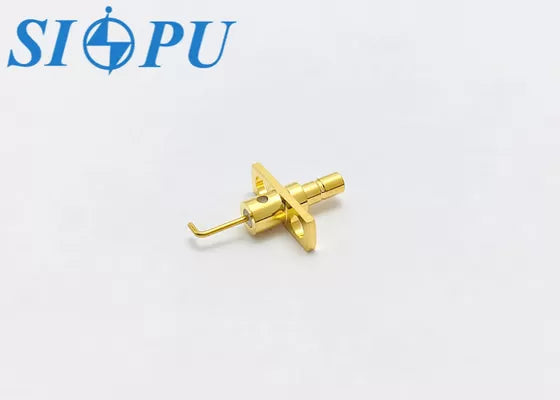

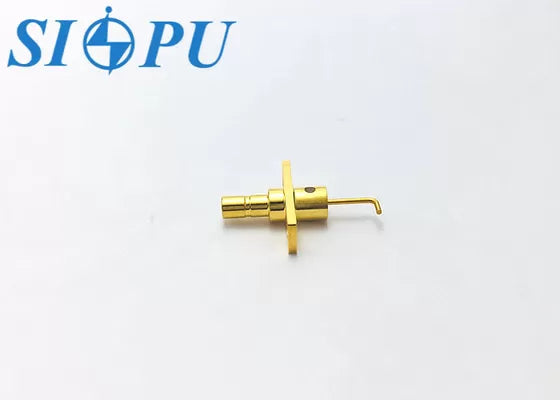

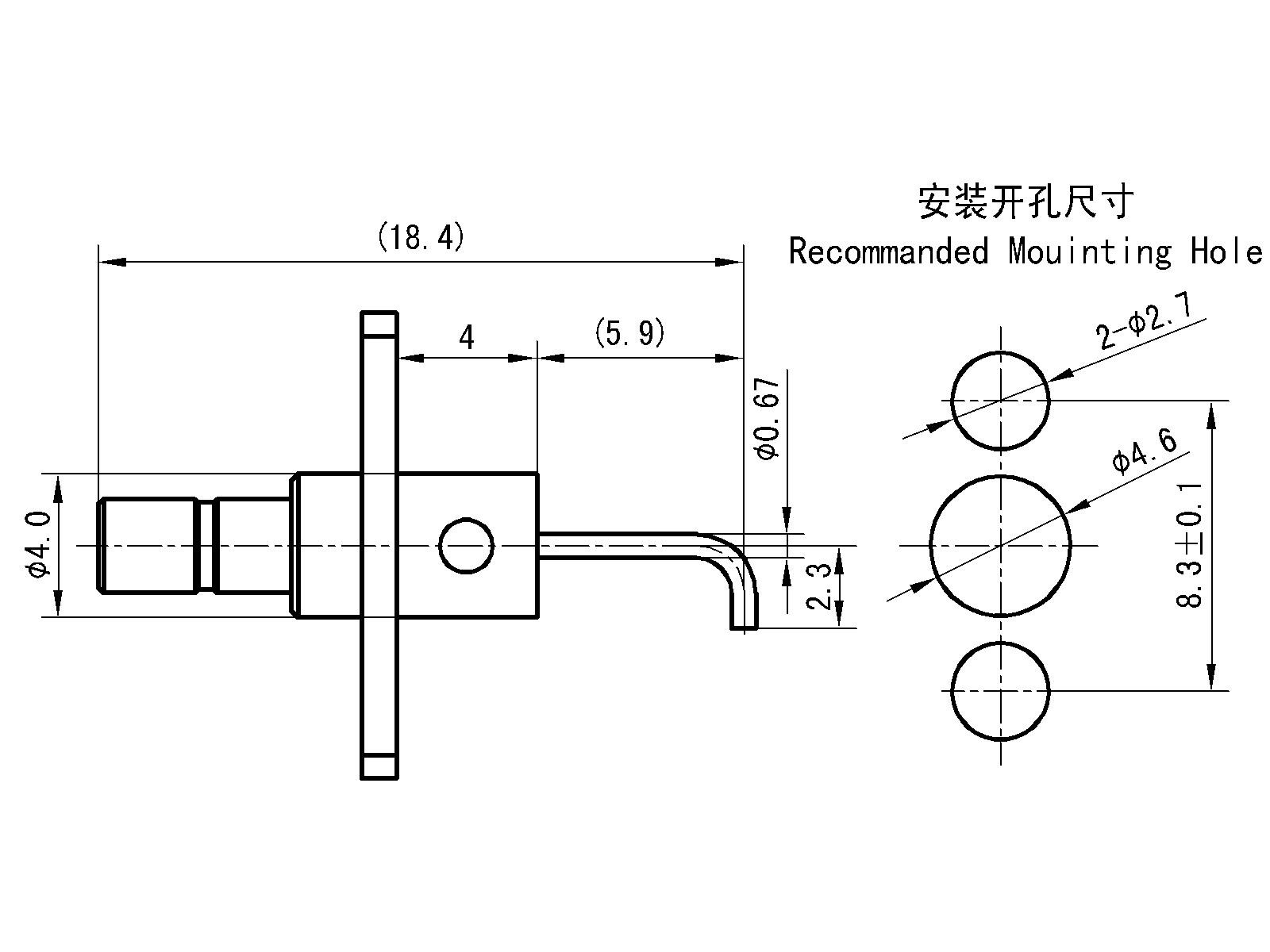

Model: SSMB-JFD1

The SSMB series coaxial connector is a miniature push-in connector known for its small size, light weight, ease of use, and good shock resistance. Compliant with IEC 60169-19, it is compatible with internationally standardized counterparts, making it suitable for global applications in high-frequency systems.

Applications

• Wireless communication equipment
• Electronic instruments
• Compact RF devices and modules

Product Features

• Two-hole flange mount for secure installation
• Straight microstrip design
• Compact and lightweight
• Easy and reliable push-in connection
• Excellent solderability and mechanical stability

🔧 Technical Specifications

Electrical property			Temperature range	-55～+155℃
Characteristic impedance		50Ω	Frequency range	DC-3GHz
Dielectric withstanding voltage		500V	VSWR	≤1.35
Insulation resistance		≥1000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
	Outer conductor	≤2.5mΩ	Durability	500times

⚙ Materials & Finish



Center conductor	Beryllium bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, gold plating	/	/
