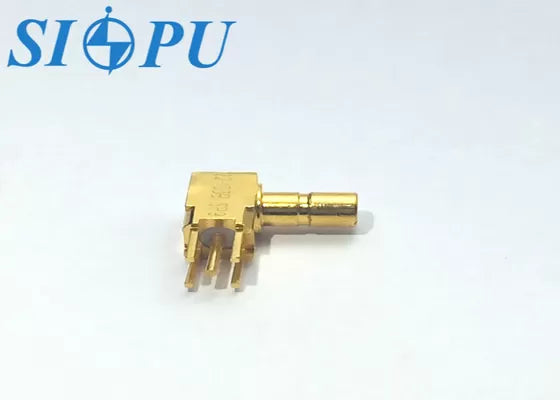

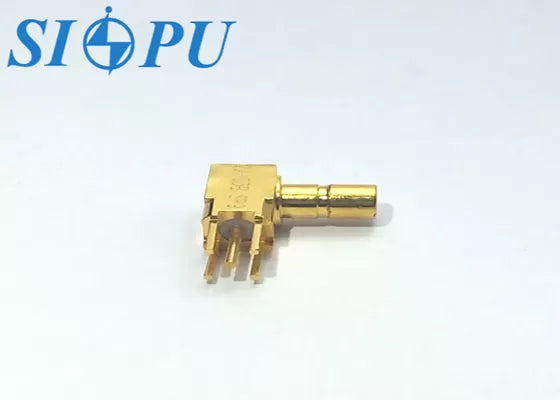

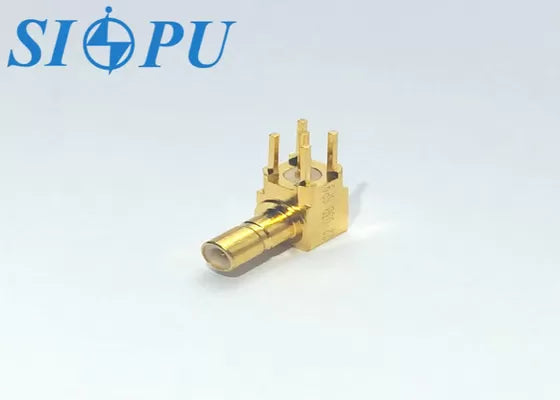

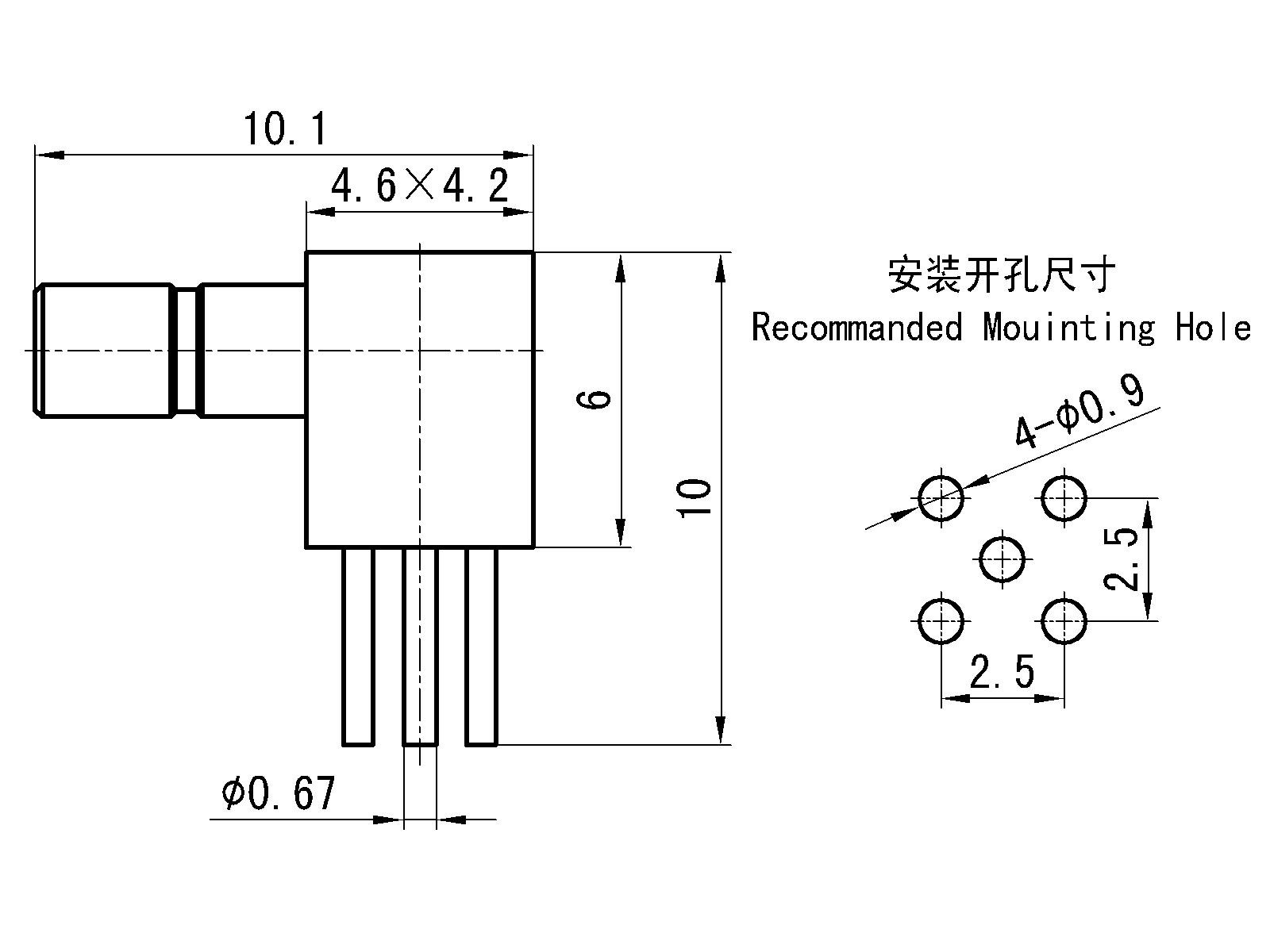

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

Model: SSMB-JWHD1

The SSMB series is a miniature push-in RF connector known for its compact size, light weight, fast and convenient connection, and good shock resistance. It is especially suitable for connecting RF coaxial cables in micro radio devices and electronic instruments where space and reliability are critical.

Applications

• Electronic instruments
• Radio communication equipment
• Compact RF modules

Product Features

• Right-angle (bent) PCB soldering structure
• Small size and lightweight design
• Good vibration and shock resistance
• Easy installation with reliable push-in connection
• Excellent soldering performance and electrical stability

🔧 Technical Specifications

Electrical property			Temperature range	-55～+155℃
Characteristic impedance		50Ω	Frequency range	DC-3GHz
Dielectric withstanding voltage		500V	VSWR	≤1.5
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
	Outer conductor	≤2.5mΩ	Durability	500times

⚙ Materials & Finish



Center conductor	Brass,gold plating	Insulating medium	PTFE
Outer conductor	Brass,gold plating	/	/
