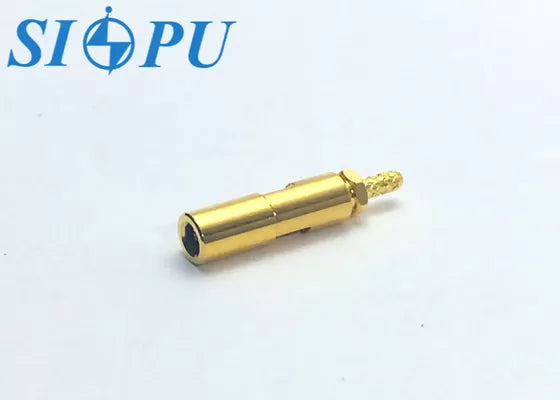

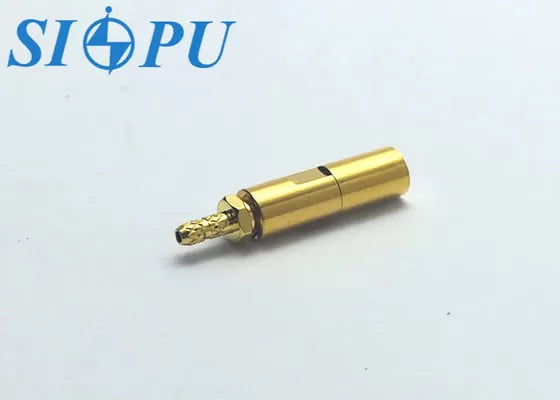

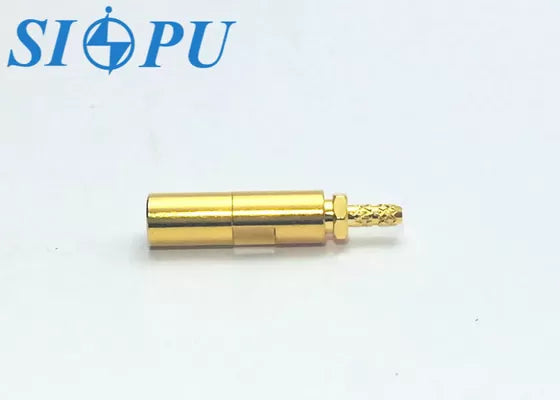

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Model: SSMB-K2Y

The SSMB series is a miniature push-in locking RF connector known for its compact size, light weight, fast and convenient connection, and strong shock resistance. It is internationally compatible with similar standard products, making it a reliable choice for global applications.

Applications

• Electronic instruments
• Radio communication equipment
• Compact RF modules and devices

Product Features

• Push-in snap-lock design for quick and secure connection
• Compatible with RG178/U coaxial cable
• Small size and lightweight
• High connection reliability and ease of use
• Good resistance to vibration and mechanical stress

🔧 Technical Specifications

Electrical property			Temperature range	-55～+155℃
Characteristic impedance		50Ω	Frequency range	DC-3GHz
Dielectric withstanding voltage		500V	VSWR	≤1.5
Insulation resistance		≥1000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
	Outer conductor	≤2.5mΩ	Durability	500times

⚙ Materials & Finish



Center conductor	Beryllium bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, gold plating	/	/
