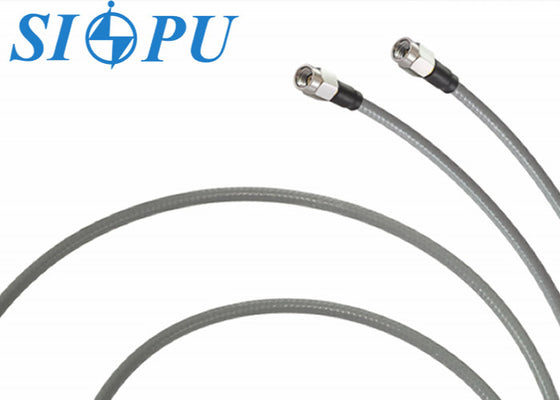

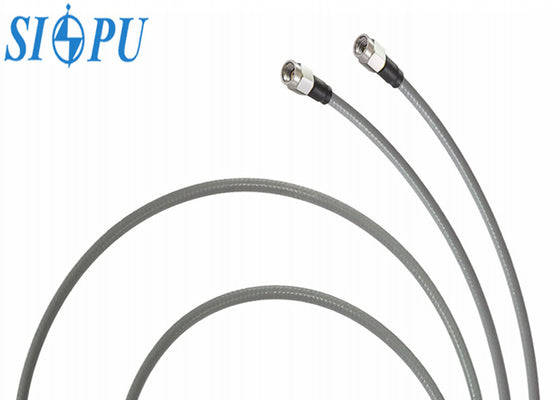

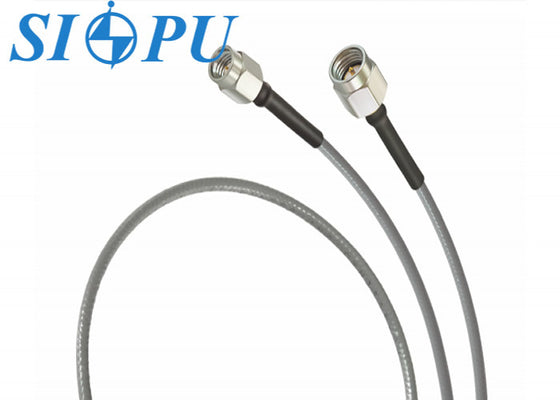

SSMA Male Cable Assembly – Welded Type (Compatible with AA1836 / CXN3507 Cable)
Model Number: SSMA-J3507G-T / SSMA-J3507G-T-AA1836-L
This precision-engineered SSMA male RF coaxial cable assembly features a welded structure, using high-performance CXN3507 or AA1836-compatible flexible coaxial cable. Designed for low-loss, phase-stable, and shielded transmission, it is ideal for radar, navigation, and communication systems that demand reliability under vibration and thermal variation.
📐 Key Technical Specifications
| Parameter | Value |
|---|---|
| Connector Type | SSMA Male (Both Ends) |
| Cable Type | CXN3507 / AA1836 (Flexible) |
| Structure | Welded Type |
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC to 1.13 GHz |
| VSWR | ≤ 1.3 |
| Dielectric Withstanding Voltage | 750 V |
| Insulation Resistance | ≥ 5000 MΩ |
| Insertion Loss | ≤ 0.7 dB @ L = 200 mm |
| Insertion Loss Consistency | ≤ ±0.1 dB |
| Phase Equalization | ≤ ±3° |
| Operating Temperature Range | -55°C to +125°C |
| Standard Cable Length | 150mm (customizable on request) |
⚙ Mechanical & Material Highlights
Connector Material: Brass or stainless steel (optional), gold-plated
Cable Jacket: Low-loss flexible RF material
Welded Connection: Ensures mechanical integrity and shielding continuity
Durability: ≥ 500 mating cycles
Shielding Effectiveness: > 90 dB
🔍 Application Areas
Radar and guidance systems
Aerospace and navigation instrumentation
Communication base stations and terminals
Laboratory RF test setups
