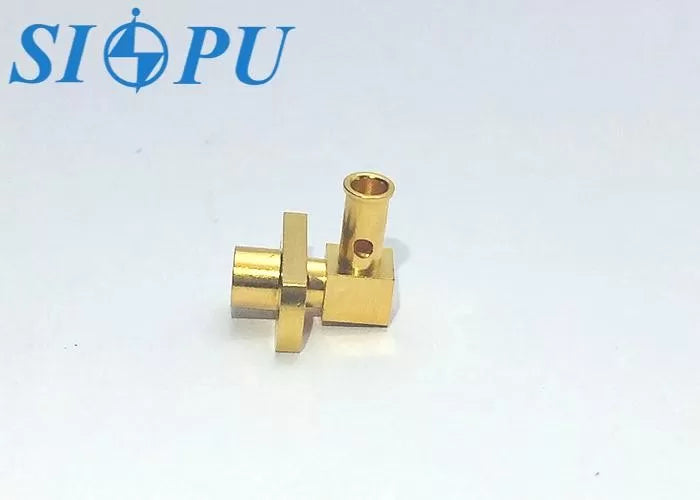

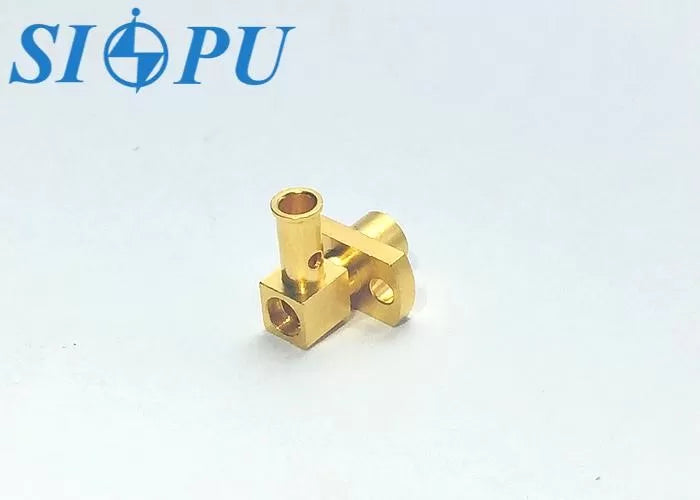

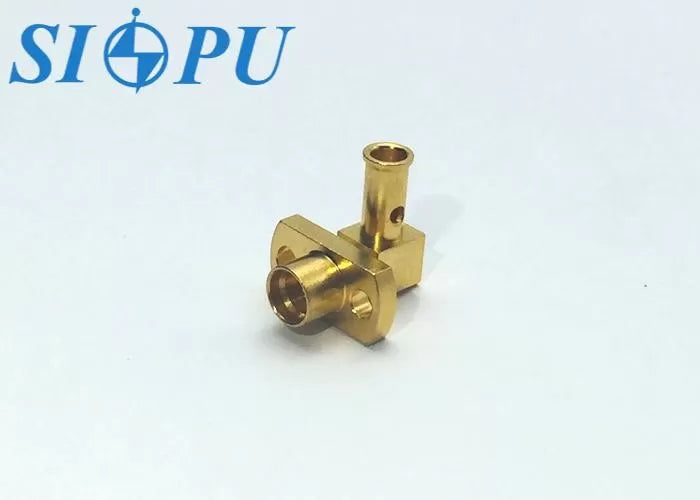

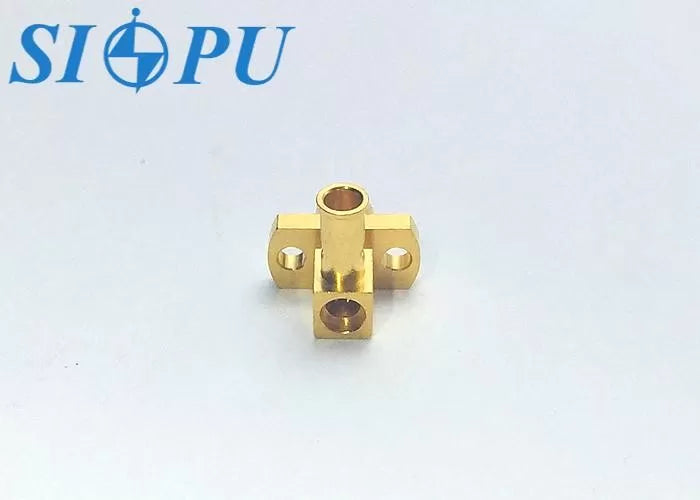

SMP Male Right-Angle RF Connector With Flange Mount – For CXN3506 Cable

SMP Male Right-Angle RF Connector With Flange Mount – For CXN3506 Cable

Model: SMP-JWF3506-S

Product Overview

The SMP series is a high-performance blind-mating RF coaxial connector, designed for compact and high-density installations. It features a push-in mating interface that allows for axial and radial misalignment, making it ideal for modular and blind-mate systems.

Key Features

•     Right-angle structure with two-hole flange mount
•     Compatible with CXN3506 RF coaxial cable
•     Frequency support up to 40GHz (depending on system design)
•     Excellent electrical performance with low VSWR
•     Secure and quick connection, with strong vibration resistance
•     Compact and lightweight design for space-constrained applications

Applications

•     Radar systems
•     Aerospace and avionics
•     Telecommunications & antennas
•     High-density communication modules

Whether you're building next-gen aerospace systems or integrating advanced radar or 5G modules, this SMP right-angle connector offers the speed, durability, and signal integrity your design demands.

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-26.5GHz
Dielectric withstanding voltage		500V	VSWR	≤1.4
Insulation resistance		≥5000MΩ	Insertion loss	≤0.07√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
	Outer conductor	≤2.0mΩ	Durability	500times



Materials and Surface Treatment

Center conductor	Beryllium bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, gold plating	/	/
