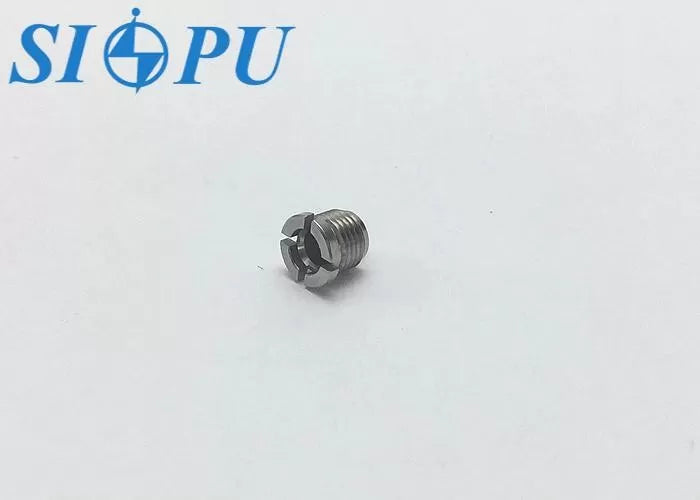

SMP Male RF Coaxial Connector – Straight, Thread Mount For Microstrip Applications
Model: SMP-JYD14G
Product Overview
SMP series connectors are compact RF coaxial connectors designed for high-frequency performance and modular, high-density applications. They offer fast and secure connections, excellent vibration resistance, and support limited axial and radial misalignment—ideal for space-constrained designs.
Applications
Quantum computing, antennas, radar systems, aerospace, and other high-frequency modules.
Product features:
- Limited escapement interface
- Threaded mounting
- Compact and lightweight
- High durability in demanding environments
- Excellent electrical performance
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-40GHz | |
|
Dielectric withstanding voltage
|
500V | VSWR | ≤1.1+0.01F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.07√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤6.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
|
Limited detent
|
(max) Engagement force |
45N |
(min) Separation force |
9N |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Stainless steel, passivating | / | / |
