SMP Male RF Coaxial Connector – Straight, Thread Mount for Microstrip Applications, up to 40 GHz
SMP Male RF Coaxial Connector – Straight, Thread Mount for Microstrip Applications, up to 40 GHz
Regular price
$0.98 USD
Regular price
Sale price
$0.98 USD
Quantity
Couldn't load pickup availability
SMP Male RF Coaxial Connector – Straight, Thread Mount for Microstrip Applications, up to 40 GHz

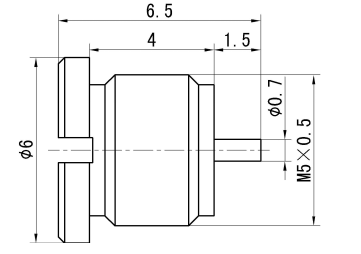

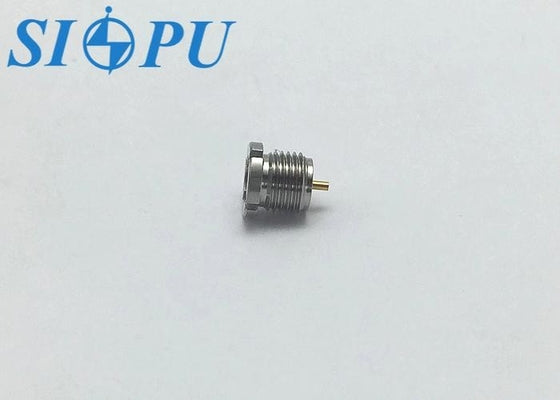

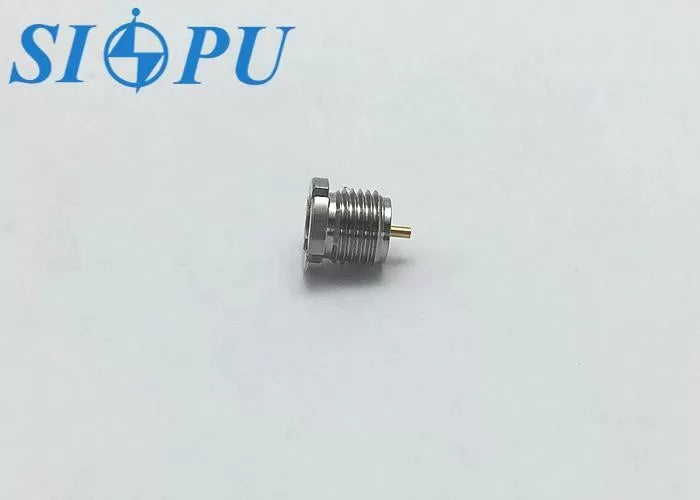

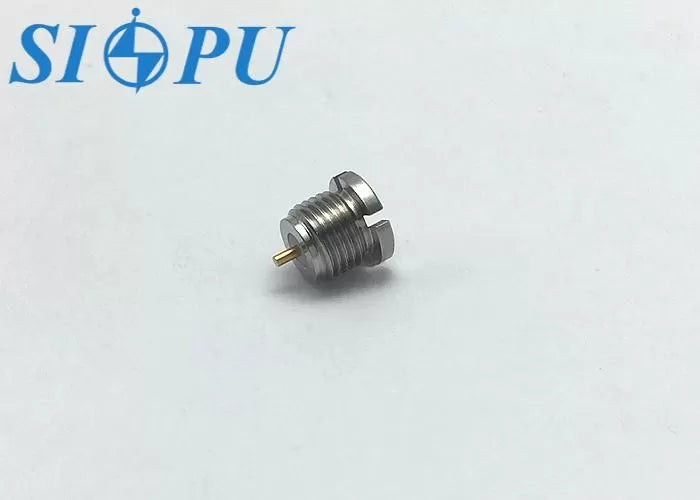

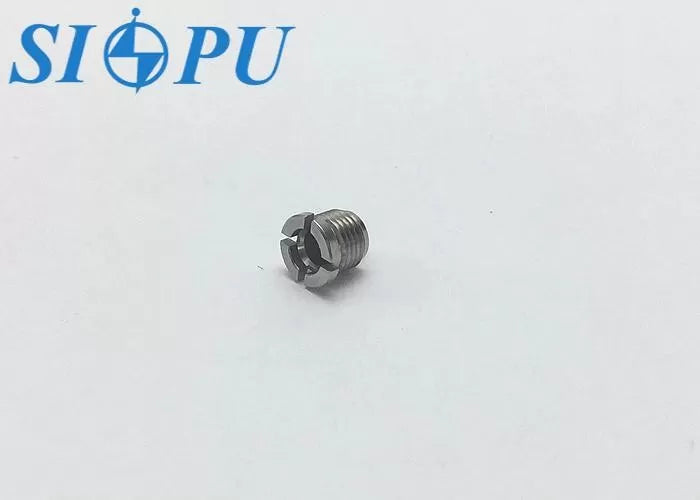

Model: SMP-JYD14G
The SMP-JYD14G from SIPU is a thread-mount SMP male connector designed for microstrip-based high-frequency systems. Featuring a straight configuration and limited detent interface, this compact connector supports stable signal transmission up to 40 GHz while allowing for slight axial and radial misalignment—making it ideal for dense RF modules in demanding environments.
Constructed from passivated stainless steel with a gold-plated beryllium bronze center conductor, the connector ensures high durability and excellent electrical performance across 500 mating cycles.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMP Male RF Coaxial Connector |
| Model Number | SMP-JYD14G |
| Mounting Style | Thread Mount, Microstrip |
| Gender | Male |
| Configuration | Straight |
| Interface Type | Limited Detent |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.1 + 0.01F(GHz) |
| Insertion Loss | ≤ 0.07√F(GHz) dB |
| Contact Resistance | Center ≤ 6.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
| Engagement Force (max) | ≤ 45 N |
| Separation Force (min) | ≥ 9 N |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Stainless Steel | Passivated |
| Insulating Medium | PTFE | – |
