SMP Male RF Coaxial Connector – PCB Mount, Solder Type, up to 40 GHz
SMP Male RF Coaxial Connector – PCB Mount, Solder Type, up to 40 GHz
Regular price
$1.12 USD
Regular price
Sale price
$1.12 USD
Quantity
Couldn't load pickup availability
SMP Male RF Coaxial Connector – PCB Mount, Solder Type, up to 40 GHz
Model: SMP-JHD21-S

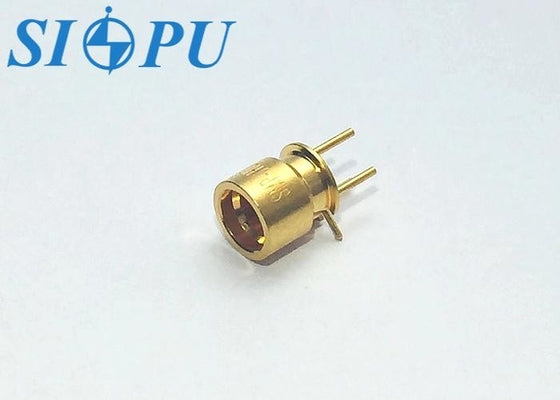

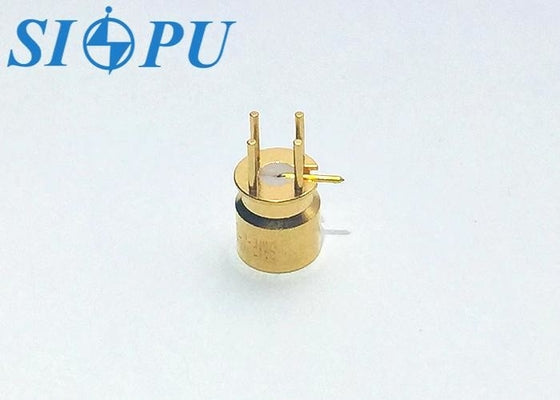

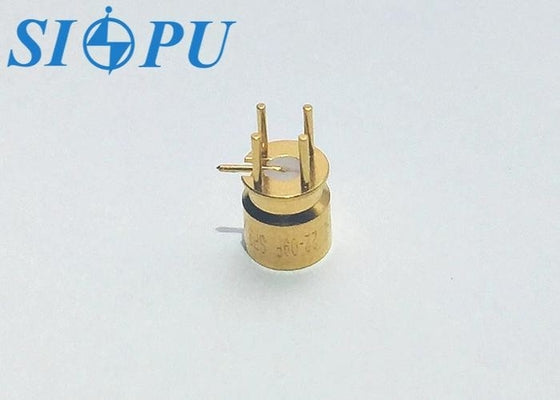

The SMP-JHD21-S from SIPU is a compact SMP male RF connector designed for PCB soldering applications. Featuring a push-on interface and straight configuration, this connector offers fast, reliable, and high-frequency signal transmission up to 40 GHz, making it ideal for dense modular designs in advanced RF systems.
With its gold-plated brass body, gold-plated beryllium bronze center contact, and PTFE dielectric, the connector delivers excellent durability, low insertion loss, and superior environmental resistance over 500 mating cycles.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMP Male RF Coaxial Connector |
| Model Number | SMP-JHD21-S |

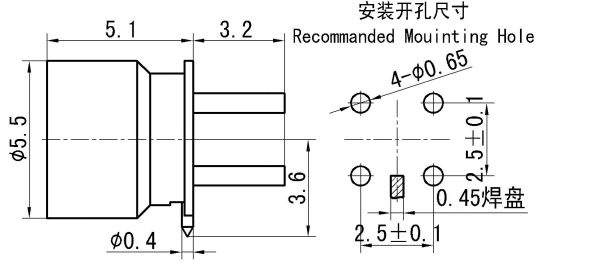

| Mounting Style | PCB Mount, Solder Type |
| Gender | Male |
| Configuration | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.5 |
| Insertion Loss | ≤ 0.07√F(GHz) dB |
| Contact Resistance | Center ≤ 6.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Brass | Gold Plated |
| Insulating Medium | PTFE | – |
