Model: SMP-JHD6
Product Overview
The SMP connector is an ultra-compact, push-on, self-aligning RF coaxial connector designed for high-frequency applications. It features fast mating, strong vibration resistance, and the ability to accommodate limited axial and radial misalignment, making it ideal for high-density modular installations.
Scope of Application:
Commonly used in quantum computing, antennas, broadband systems, and test & measurement equipment.
Product Features:
Constructed with a two-piece housing made of stainless steel and brass. Supports plug-side solder termination. Compact and lightweight with excellent electrical performance and strong environmental durability.
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-40GHz | |
|
Dielectric withstanding voltage
|
500V | VSWR | ≤1.1+0.01F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.07√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤6.0mΩ | Mechanical property | |
|
Outer conductor
|
≤2.0mΩ | Durability | 500times | |
|
Limited detent
|
(max) Engagement force |
45N |
(min) Separation force |
9N |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Stainless steel, passivating Brass, gold plating |
/ | / |

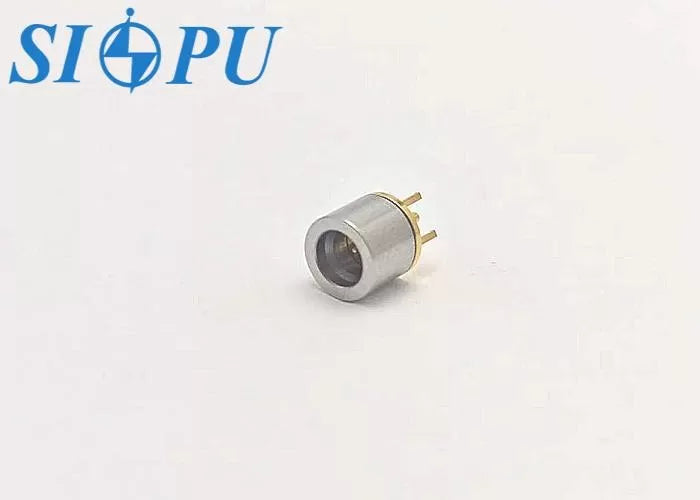

Product Appearance
