SIPU RF Technology
SMP Male RF Coaxial Connector – Limited Detent, PCB Mount, Solder Type, up to 40 GHz
SMP Male RF Coaxial Connector – Limited Detent, PCB Mount, Solder Type, up to 40 GHz
Regular price
$1.72 USD
Regular price
Sale price
$1.72 USD
Quantity
Couldn't load pickup availability

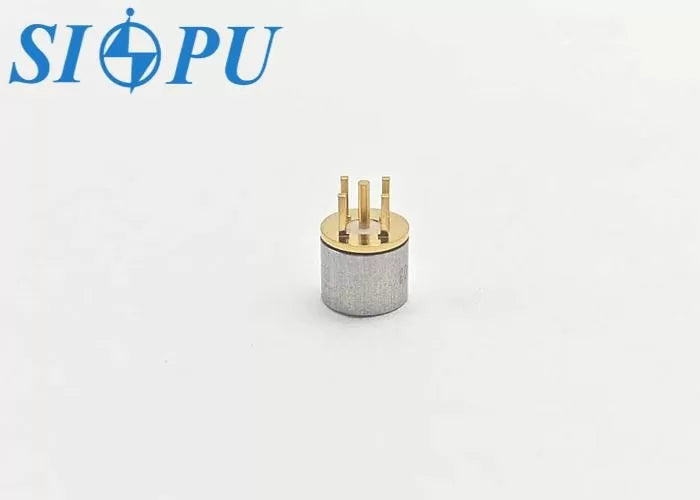

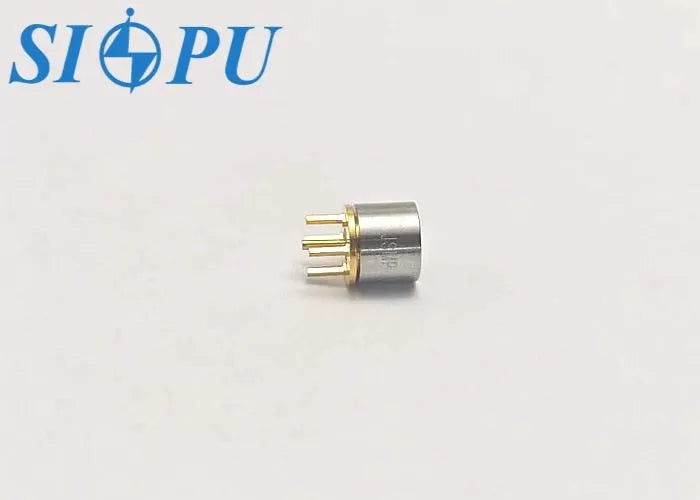

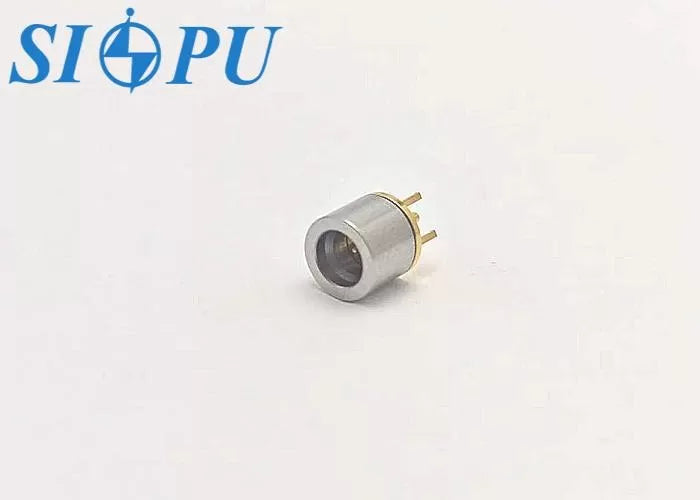

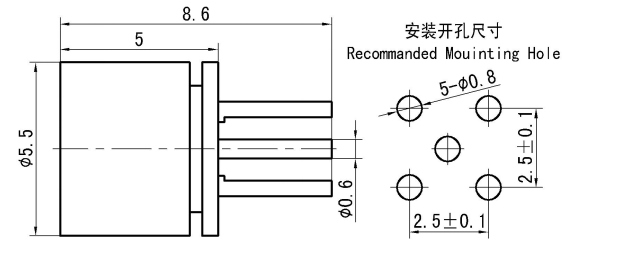

SMP Male RF Coaxial Connector – Limited Detent, PCB Mount, Solder Type, up to 40 GHz (Model: SMP-JHD6)
The SMP-JHD6 is a high-frequency SMP male connector designed for PCB solder mounting with a limited detent interface. It features a push-on, self-aligning design, making it ideal for modular, space-constrained RF systems. Built with high-precision materials and tight electrical tolerances, this connector supports signal integrity up to 40 GHz.
Engineered for durability and superior performance in demanding environments, the SMP-JHD6 is a reliable choice for applications such as quantum computing, microwave modules, and high-speed digital systems.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMP Male RF Coaxial Connector |
| Model Number | SMP-JHD6 |
| Mounting Style | PCB Mount, Solder Type |
| Gender | Male |
| Configuration | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.1 + 0.01F(GHz) |
| Insertion Loss | ≤ 0.07√F(GHz) dB |
| Contact Resistance | Center ≤ 6.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Stainless Steel + Brass | Passivation + Gold |
| Insulating Medium | PTFE | – |
📌 Limited Detent Engagement Properties
| Parameter | Value |
|---|---|
| Engagement Force | ≤ 45 N |
| Separation Force | ≥ 9 N |
