SIPU CONNECTORS

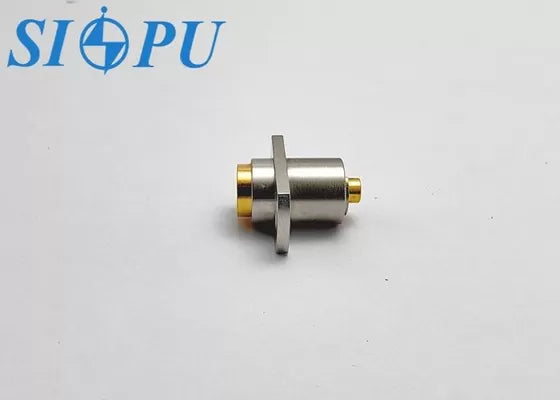

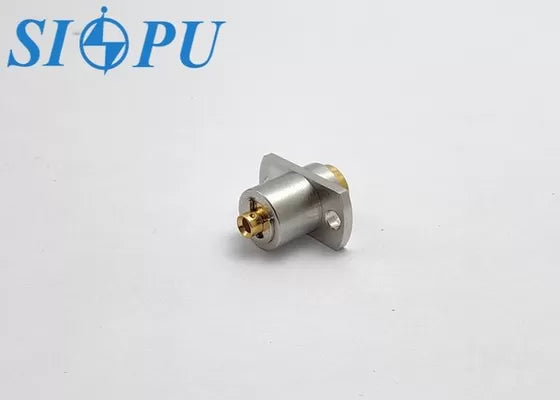

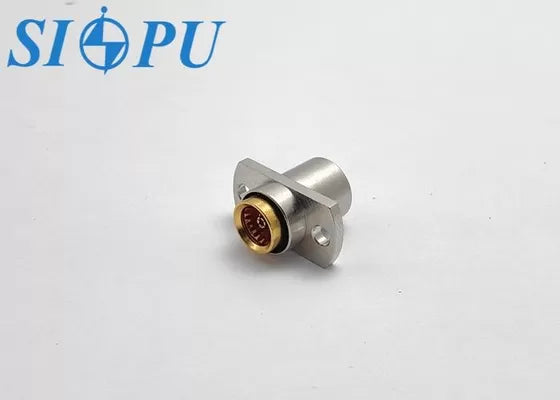

BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable
Regular price
$12.60 USD
Regular price
Sale price
$12.60 USD
Quantity
Couldn't load pickup availability
BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable (Model: BMA-KFB2-8)
The BMA series RF coaxial connectors, also known as blind-mate connectors, are specifically designed for high-frequency applications that require reliable and repeatable connections without visual alignment. Fully compliant with IEC 61169-33, they are ideal for chassis-to-chassis and cabinet-level connections, supporting the modular design of radar systems and other integrated equipment.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC–22 GHz |
| Dielectric Withstanding Voltage | 1000 V |
| VSWR | ≤ 1.15 + 0.012F(GHz) |
| Insertion Loss | ≤ 0.08√F(GHz) dB |
| Insulation Resistance | ≥ 5000 MΩ |
| Contact Resistance – Center Conductor | ≤ 3.0 mΩ |
| Contact Resistance – Outer Conductor | ≤ 2.0 mΩ |
| Durability (Mating Cycles) | 500 times |
| Temperature Range | –55°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating / Finish |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Brass | Gold Plated |
| Insulating Medium | PTFE | – |
