SIPU CONNECTORS
SMP Female to SMP Female RF Coaxial Adapter – 12.9mm Length
SMP Female to SMP Female RF Coaxial Adapter – 12.9mm Length
Regular price
$6.96 USD
Regular price
Sale price
$6.96 USD
Quantity
Couldn't load pickup availability

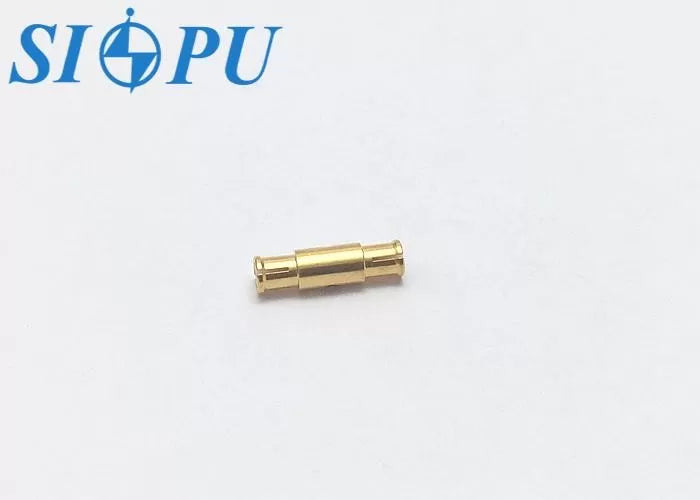

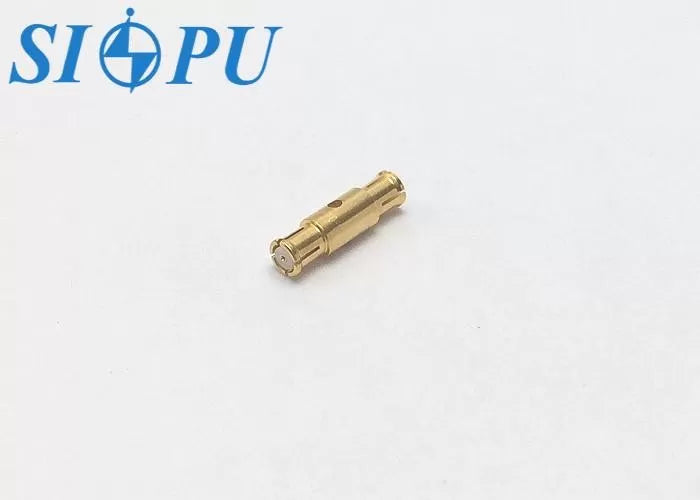

SMP Female to SMP Female RF Coaxial Adapter – 12.9mm (Model: SMP-KK129)
The SMP-KK129 from SIPU is a high-performance RF coaxial adapter designed for blind-mate applications requiring compact size, high frequency, and mechanical reliability. This adapter features dual SMP female interfaces in a straight configuration, with an overall length of 12.9mm, making it ideal for tight-space modular RF assemblies.
Manufactured using gold-plated beryllium bronze and PTFE dielectric, the adapter offers excellent signal integrity, wide bandwidth operation up to 40GHz, and durability for 500 mating cycles. It is compliant with ISO 9001:2017, RoHS, and CE standards.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMP Female to SMP Female Adapter |
| Model Number | SMP-KK129 |
| Length | 12.9 mm |
| Gender | Female to Female |
| Configuration | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.5 |
| Insertion Loss | ≤ 0.07√F(GHz) dB |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Beryllium Bronze | Gold Plated |
| Insulating Medium | PTFE | – |
