SIPU RF Technology
SMP Female to Female RF Coaxial Adapter – 8.2 mm Length
SMP Female to Female RF Coaxial Adapter – 8.2 mm Length
Regular price
$5.56 USD
Regular price
Sale price
$5.56 USD
Quantity
Couldn't load pickup availability

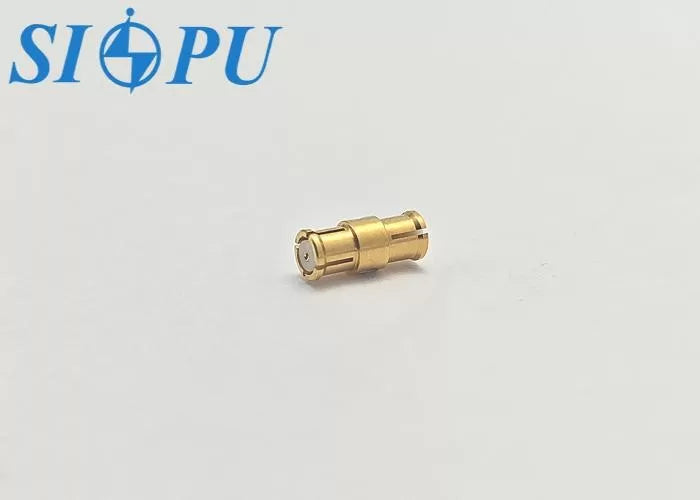

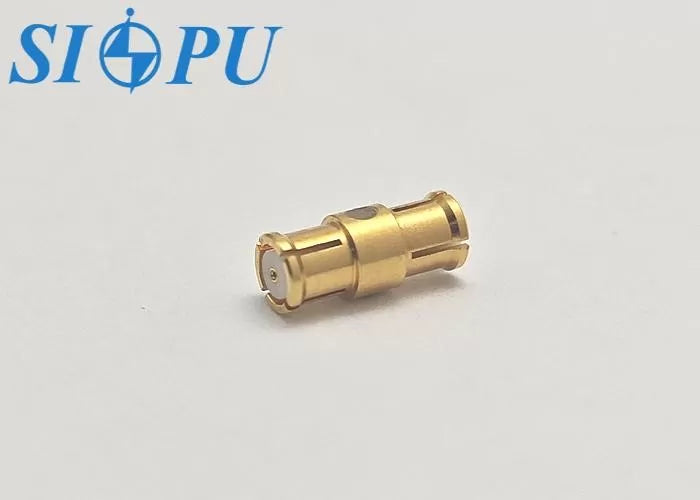

SMP Female to Female RF Coaxial Adapter – 8.2 mm Length (Model: SMP-KK7)
The SMP-KK7 is a compact SMP female-to-female adapter with an overall length of 8.2 mm, designed for high-frequency, high-density blind-mate RF systems. This adapter features push-on coupling and supports limited axial and radial misalignment, making it ideal for board-to-board and module interconnects.
Engineered with beryllium bronze and gold-plated finishes, it ensures stable performance up to 40 GHz, offering excellent reliability and electrical performance in critical environments.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMP Female-to-Female RF Adapter |
| Model Number | SMP-KK7 |

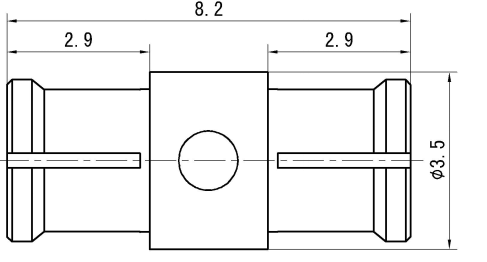

| Length | 8.2 mm |
| Gender | Female to Female |
| Configuration | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.5 |
| Insertion Loss | ≤ 0.07√F(GHz) dB |
| Contact Resistance | Center ≤ 6.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Beryllium Bronze | Gold Plated |
| Insulating Medium | PTFE | – |
