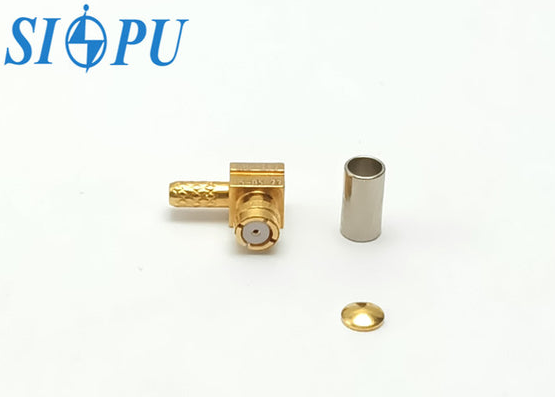

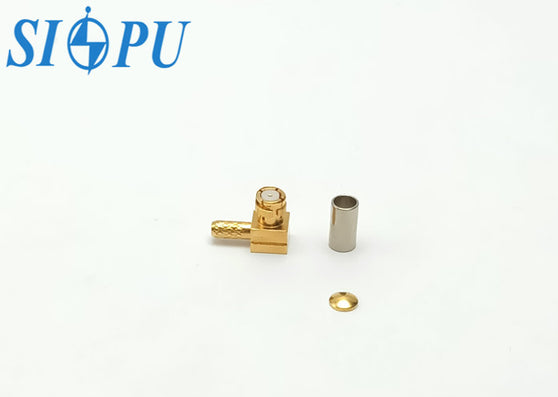

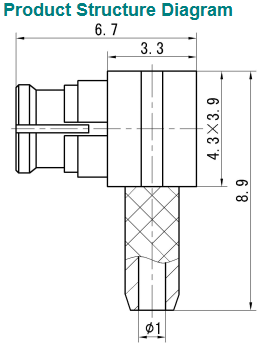

SMP Female RF Coaxial Connector – Right Angle, Compatible with RG178/U Cable (Model: SMP-KW2)
The SMP-KW2 from SIPU is a precision-engineered right-angle SMP female RF coaxial connector designed for use with RG178/U cable. Compact and lightweight, this connector is ideal for high-frequency signal transmission in tight spaces where cable routing flexibility and mechanical reliability are critical.
Constructed from gold-plated beryllium bronze and insulated with PTFE, the connector offers excellent electrical performance, stable operation under vibration, and supports frequencies up to 12.4 GHz. Its blind-mating capability and rugged structure make it suitable for mission-critical applications in aerospace, defense, and telecommunications.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMP Female RF Coaxial Connector |
| Model Number | SMP-KW2 |
| Configuration | Right Angle |
| Compatible Cable | RG178/U |
| Gender | Female |
| Impedance | 50 Ω |
| Frequency Range | DC to 12.4 GHz |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.15 + 0.02F(GHz) |
| Insertion Loss | ≤ 0.07√F(GHz) dB |
| Contact Resistance | Center ≤ 6.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Beryllium Bronze | Gold Plated |
| Insulating Medium | PTFE | – |
| Sealing Ring | – | Not Applicable |
