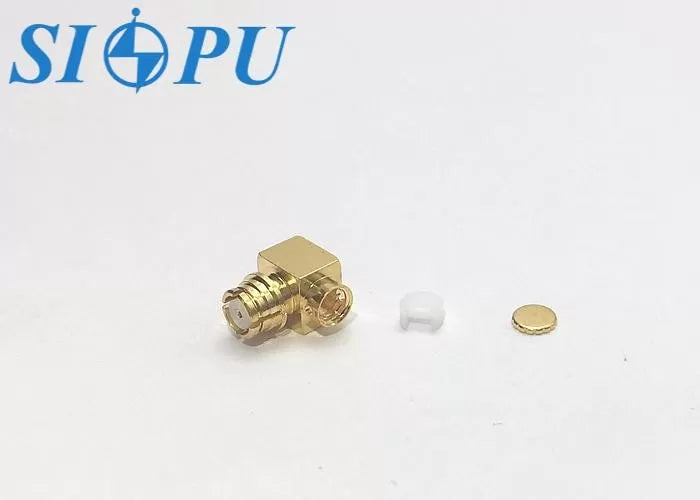

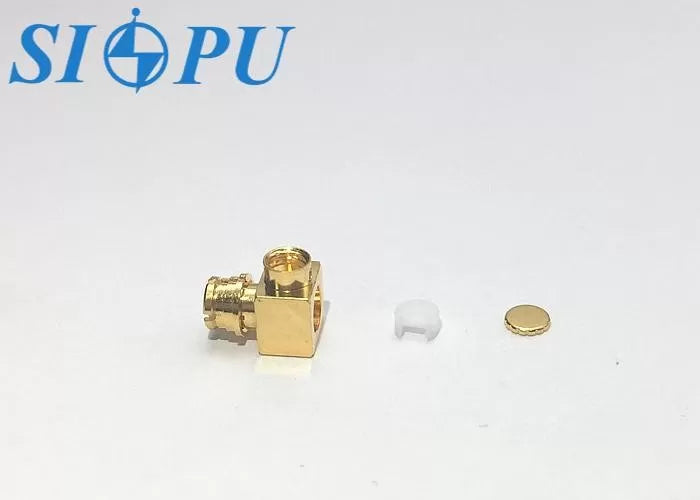

Model: SMP-KWB2A
Product Overview
The SMP series connector is an ultra-miniature RF coaxial connector featuring a plug-in, self-locking design. It is characterized by its compact size, light weight, high-frequency performance, quick-connect capability, and strong vibration resistance. The design allows for slight axial and radial misalignment, making it an excellent solution for modular, high-density installations.
Applications:
Broadband systems, antennas, test and measurement equipment, radar, and other high-frequency applications.
Product Features:
- Right-angle structure
- Compatible with 2# semi-rigid or semi-flexible cable
- Compact and lightweight design
- Strong shock and vibration resistance
- Excellent electrical performance
- Easy to solder and install
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-26.5GHz | |
|
Dielectric withstanding voltage
|
500V |
VSWR |
≤1.1+0.02F(GHz) | |
|
Insulation resistance
|
≥5000MΩ |
Insertion loss |
≤0.07√F(GHz)dB | |
|
Contact resistance |
Center conductor |
≤6.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.0mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Beryllium bronze, gold plating |
/ | / |
Product Specifications
