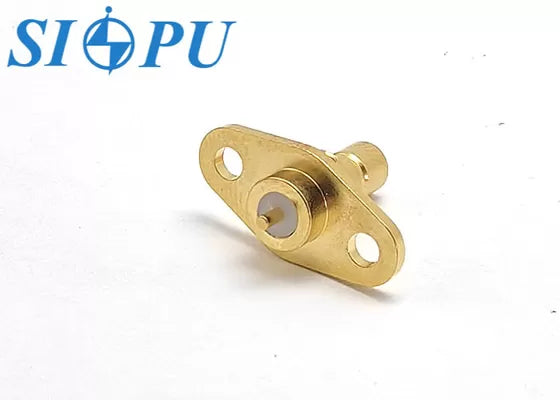

SMB Male RF Coaxial Connector – Microstrip, Flange Mounted

SMB Male RF Coaxial Connector – Microstrip, Flange Mounted

Model: SMB-JFD

The SMB series is a push-in locking RF coaxial connector known for its small size, light weight, ease of use, and excellent electrical performance. It is commonly used to connect RF coaxial cables in high-frequency circuits of radio equipment and electronic instruments.

Applications

• Communication base stations
• Wireless communication equipment
• High-frequency loop connections in electronic instruments

Product Features

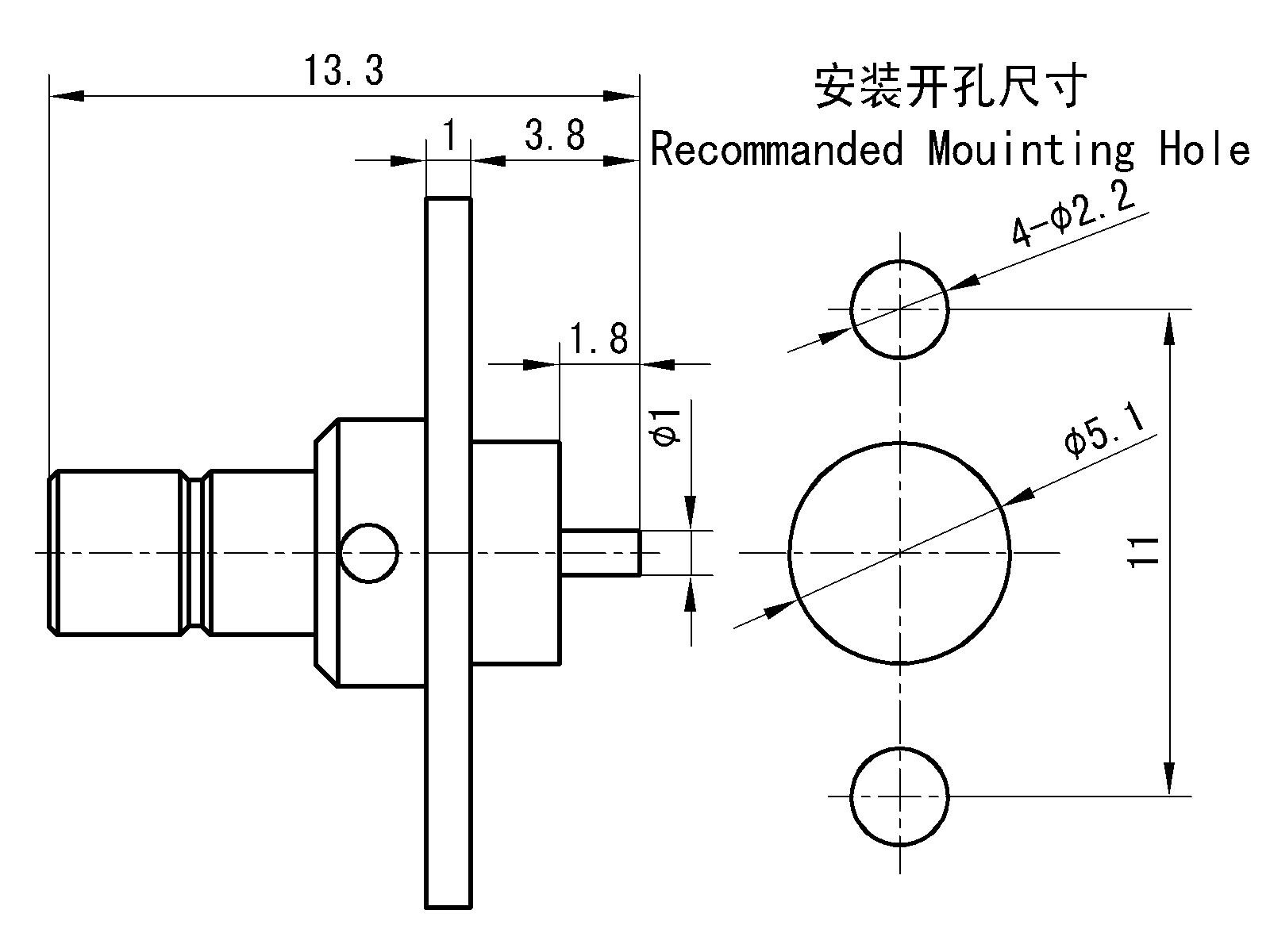

• Two-hole flange-mounted microstrip connector
• Compact and lightweight design
• Easy and fast connection
• Reliable electrical performance for high-frequency applications

🔧 Technical Specifications

Electrical property			Temperature range	-65～+165℃
Characteristic impedance		50Ω	Frequency range	DC-4GHz
Dielectric withstanding voltage		750V	VSWR	≤1.3
Insulation resistance		≥1000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
	Outer conductor	≤1.0mΩ	Durability	500Times

⚙ Materials & Finish



Center conductor	Brass, gold plating	Insulating medium	PTFE
Outer conductor	Brass, gold plating	/	/
