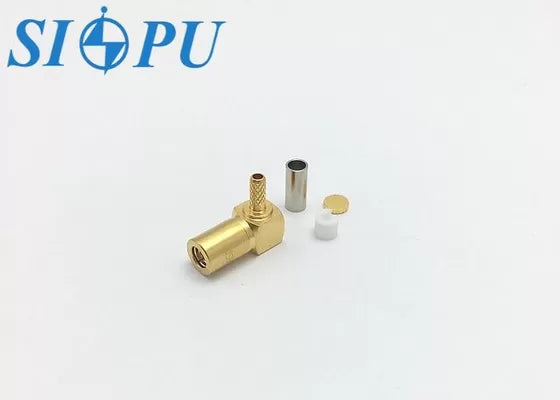

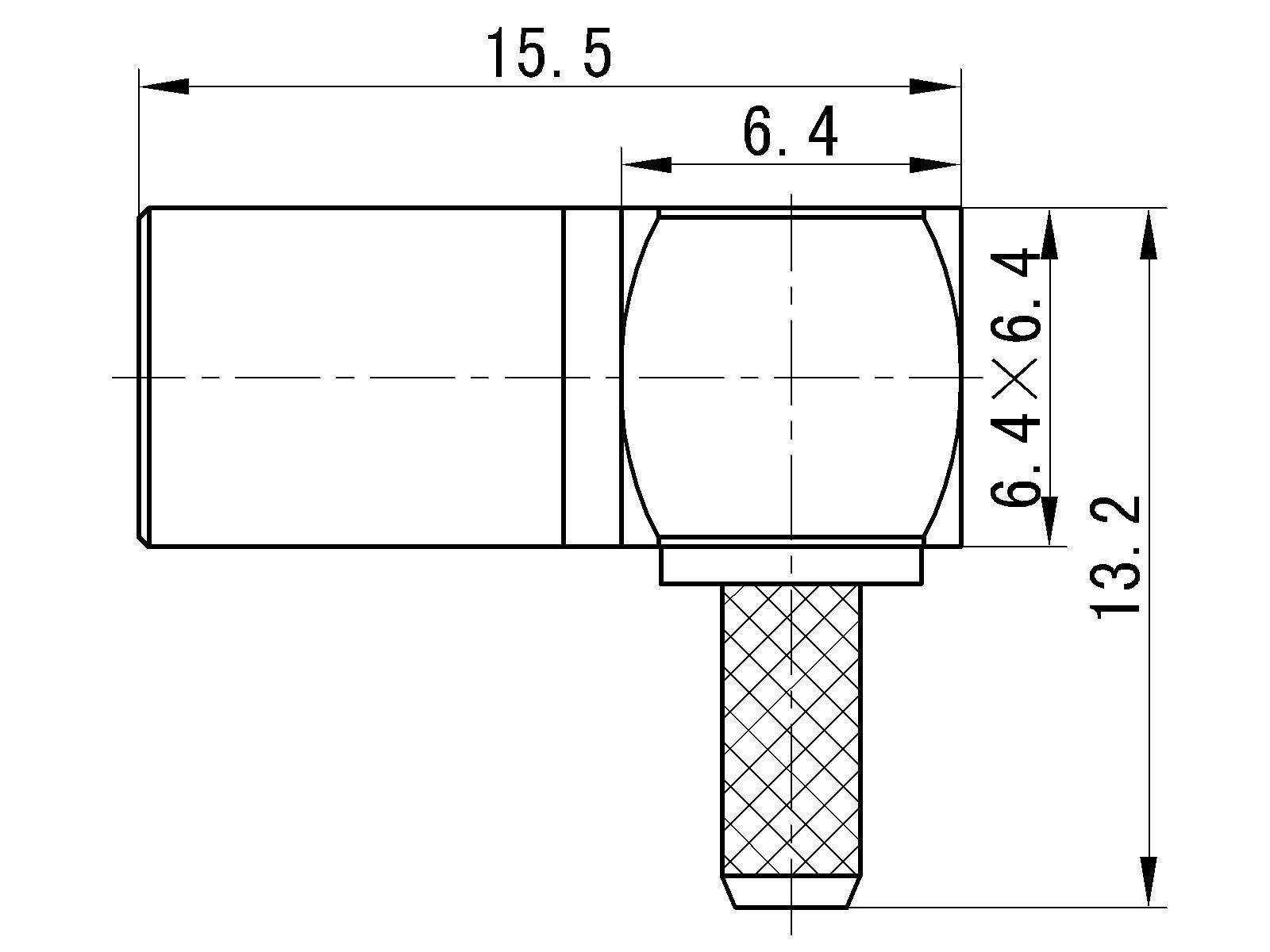

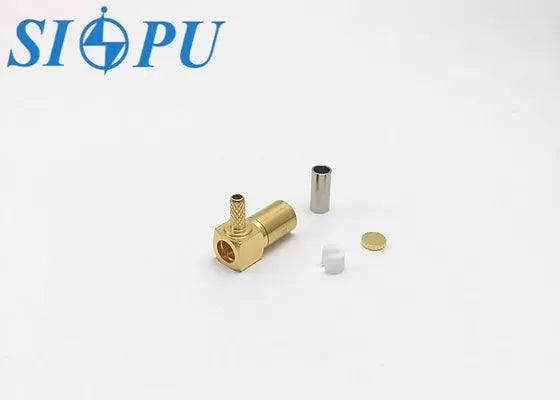

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Model: SMB-KW3

The SMB connector is a compact push-in locking RF connector designed primarily for connecting coaxial cables in high-frequency circuits. It is widely used in radio equipment and electronic instruments due to its small size, light weight, and reliable performance.

Applications

• Electronic instruments
• Radio communication equipment
• RF systems and modules

Product Features

• Right-angle (bent) SMB female interface
• Compatible with RG316/U coaxial cable
• Compact and lightweight design
• Excellent electrical performance
• Easy and secure snap-on connection

🔧 Technical Specifications

Electrical property			Temperature range	-65～+165℃
Characteristic impedance		50Ω	Frequency range	DC-4GHz
Dielectric withstanding voltage		750V	VSWR	≤1.5
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
	Outer conductor	≤1.0mΩ	Durability	500times

⚙ Materials & Finish



Center conductor	Beryllium bronze,gold plating	Insulating medium	PTFE
Outer conductor	Brass,gold plating	/	/
