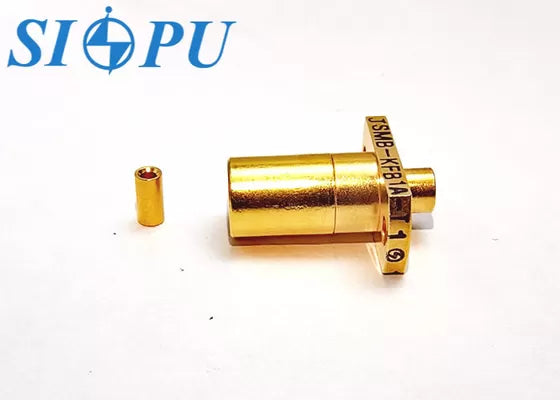

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Model: SMB-KFB1A-T1

The SMB series is a push-in locking RF coaxial connector known for its compact size, light weight, ease of use, and excellent electrical performance. It complies with MIL-C-39012 and IEC60169-10 standards, ensuring international compatibility.

Applications

Widely used in communication base stations, wireless communication equipment, and high-frequency loop connections in electronic instruments.

Product Features

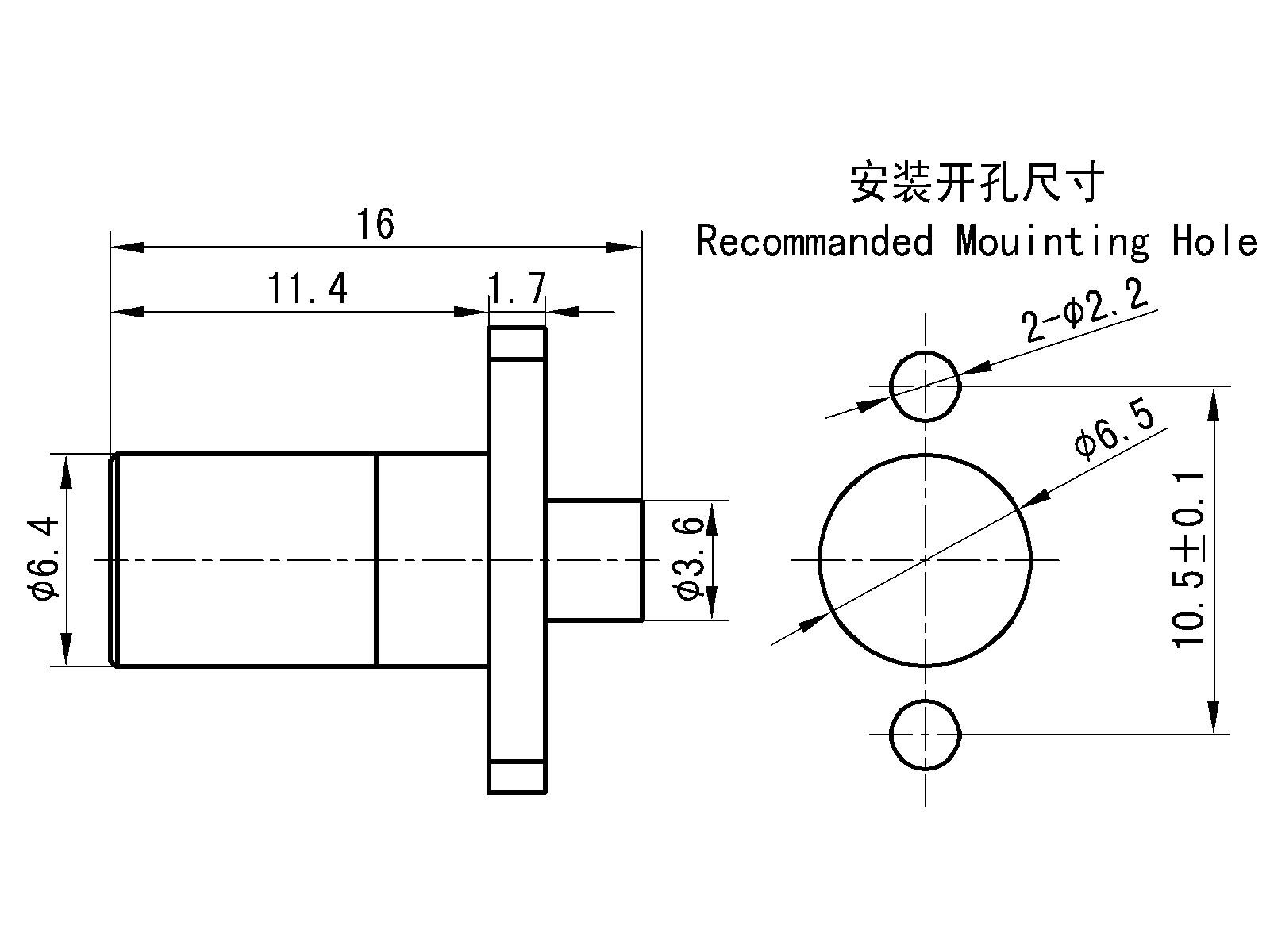

• Two-hole flange mount structure
• Mates with 1# semi-rigid or semi-flexible coaxial cables
• Compact and lightweight design
• Easy to install and use
• Excellent salt spray resistance
• Reliable electrical performance in demanding environments

🔧 Technical Specifications

Electrical property			Temperature range	-65～+165℃
Characteristic impedance		50Ω	Frequency range	DC-4GHz
Dielectric withstanding voltage		750V	VSWR	≤1.34
Insulation resistance		≥1000MΩ	Insertion loss	≤0.3√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
	Outer conductor	≤1.0mΩ	Durability	500times

⚙ Materials & Finish



Center conductor	Beryllium bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, gold plating	/	/
