SIPU RF Technology

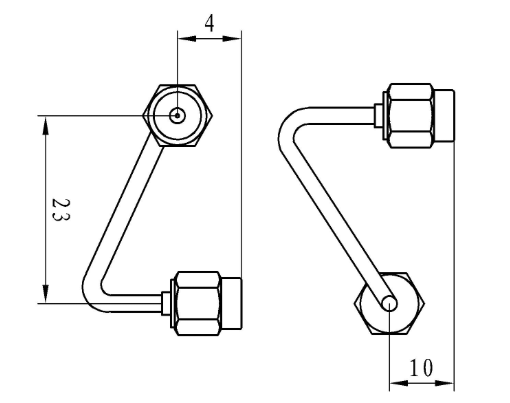

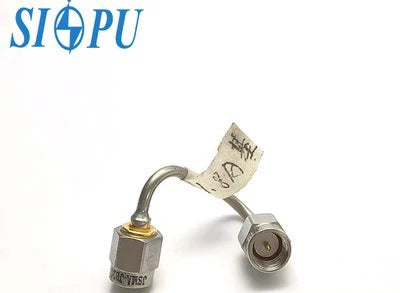

SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type, 150mm Length)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type, 150mm Length)
Regular price
$20.88 USD
Regular price
Sale price
$20.88 USD
Quantity
Couldn't load pickup availability
SMA Male Right-Angle RF Cable Assembly – SFT-50-2-1, Semi-Steel, Solder Type
Model Number: SMA-JB2G / SMA-JB2G-SFT-50-2-1-L
This SMA male right-angle RF cable assembly is built using SFT-50-2-1 semi-rigid coaxial cable, designed for low-loss, high-reliability signal transmission in demanding RF environments. Featuring a right-angle SMA male connector and semi-steel (semi-rigid) cable structure, this assembly is ideal for fixed installations requiring excellent phase stability and EMI protection.
🔧 Key Technical Specifications
| Parameter | Value |
|---|---|
| Connector Type | SMA Male, Right-Angle |
| Cable Type | SFT-50-2-1 (Semi-Steel) |
| Mounting Method | Solder Type |
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC to 610 MHz |
| VSWR | ≤ 1.3 |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | ≥ 5000 MΩ |
| Insertion Loss | ≤ 0.5 dB |
| Insertion Loss Consistency | ≤ ±0.1 dB |
| Phase Consistency | ≤ ±3° |
| Durability (Mating Cycles) | ≥ 500 |
| Operating Temperature Range | -65°C to +125°C |
| Standard Cable Length | 150 mm (customizable on request) |
⚙ Materials & Finish
| Component | Material | Surface Treatment |
|---|---|---|
| Connector Body | Brass or Stainless Steel | Gold Plated / Passivated |
| Cable Shielding | Semi-Steel | – |
| Insulating Medium | PTFE | – |
