SIPU RF Technology
SMA Male RF Coaxial Connector with Flange Mount, Stainless Steel, for Microstrip Applications
SMA Male RF Coaxial Connector with Flange Mount, Stainless Steel, for Microstrip Applications
Regular price
$5.92 USD
Regular price
Sale price
$5.92 USD
Quantity
Couldn't load pickup availability

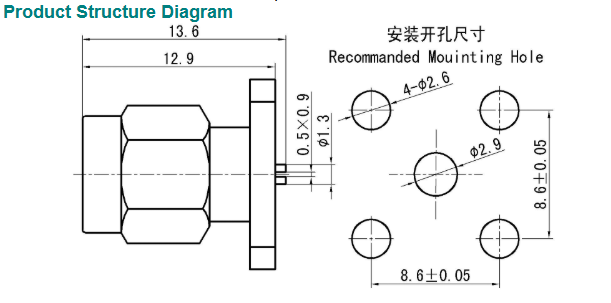

SMA Male RF Coaxial Connector – Flange Mount, Stainless Steel, for Microstrip Applications (Model: SMA-JFD186G)
The SMA-JFD186G is a SMA male RF connector featuring a flange-mount design and durable stainless steel construction, optimized for microstrip line applications. With excellent mechanical stability and electrical performance up to 18 GHz, this connector is ideal for integration in RF modules, wireless systems, and communication infrastructure.
Built to meet MIL-C-39012 and IEC 60169-15 standards, it ensures global compatibility and long-term reliability in demanding environments.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMA Male RF Coaxial Connector |
| Model Number | SMA-JFD186G |
| Mounting Type | 4-Hole Flange Mount |
| Tail Slot Size | 0.5 mm width × 0.9 mm depth |
| Gender | Male |
| Orientation | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 18 GHz |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.05 + 0.012 × F(GHz) |
| Insertion Loss | ≤ 0.05 × √F(GHz) dB |
| Contact Resistance | Center ≤ 3.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Finish / Remarks |
|---|---|---|
| Center Conductor | Brass | Gold Plated |
| Outer Conductor | Stainless Steel | Passivation Treatment |
| Insulating Medium | PTFE | – |
| Sealing Ring | Silicon Rubber | – |
