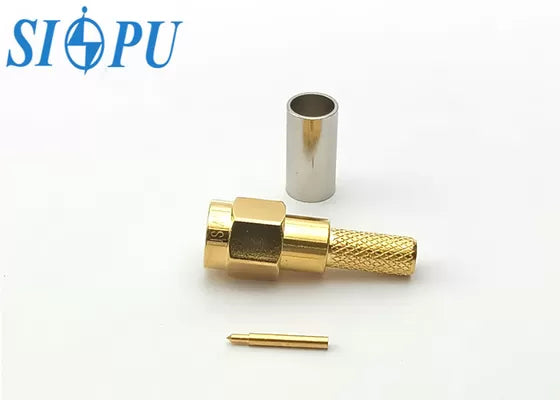

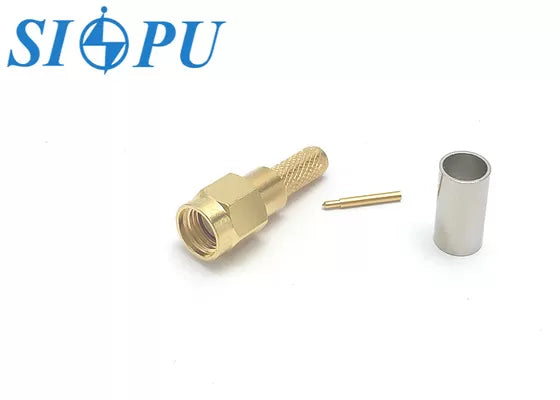

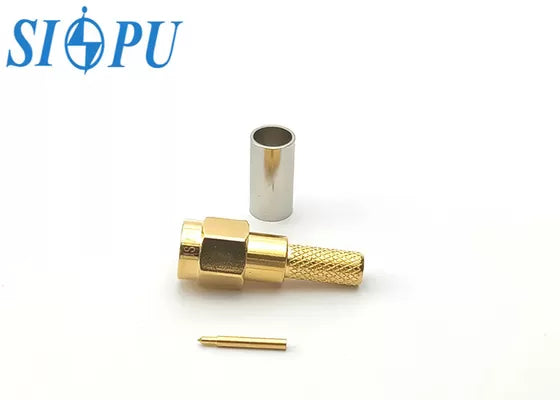

Model: SMA-J3
The SMA-J3 from SIPU is a Male SMA RF Coaxial Connector designed for reliable termination with RG316/U coaxial cable. As part of the widely adopted SMA connector family, it features a compact threaded interface that delivers excellent electrical performance and mechanical stability for high-frequency RF applications.
Manufactured with a gold-plated brass body, gold-plated brass center conductor, and PTFE dielectric, the SMA-J3 provides low VSWR, low insertion loss, and long service life. Its straight-type SMA male interface ensures secure mating and stable signal transmission in demanding RF environments.
The SMA-J3 is commonly used in wireless communication systems, telecommunication infrastructure, RF modules, network equipment, and test & measurement instruments, where consistent impedance matching and reliable RF connectivity are required.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMA RF Coaxial Connector |
| Model Number | SMA-J3 |
| Product Name | SMA Male RF Coaxial Connector – Compatible with RG316/U Cable |
| Gender | Male |
| Type | Straight |
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC–12.4 GHz |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.15 + 0.02F (GHz) |
| Insertion Loss | ≤ 0.05√F (GHz) dB |
| Contact Resistance (Center) | ≤ 3.0 mΩ |
| Contact Resistance (Outer) | ≤ 2.0 mΩ |
| Durability (Mating Cycles) | 500 times |
| Temperature Range | –65 °C to +125 °C |
⚙ Materials & Surface Treatment
| Component | Material | Plating / Remarks |
|---|---|---|
| Center Conductor | Brass | Gold Plated |
| Outer Conductor | Brass | Gold Plated |
| Insulating Medium | PTFE | – |
| Sealing Ring | Silicon Rubber | Environmental Sealing |
