SIPU CONNECTORS

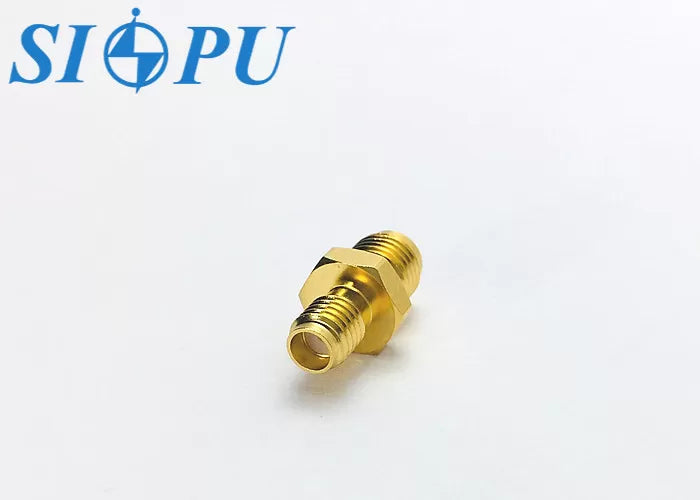

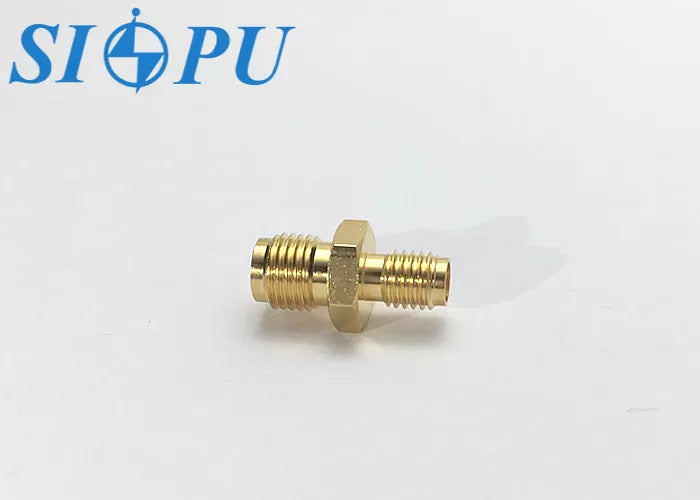

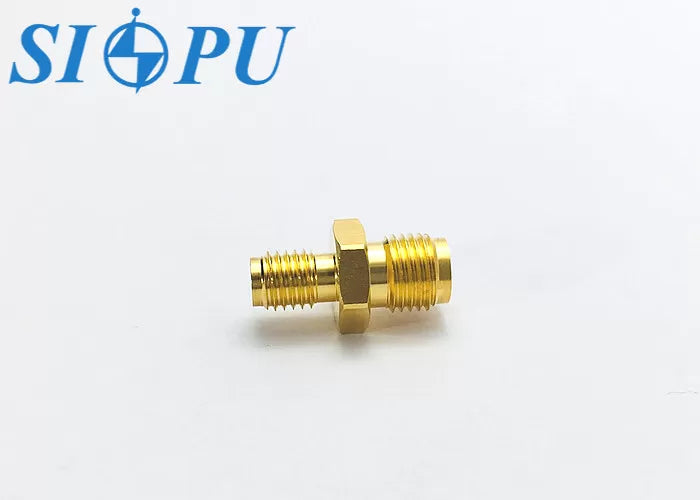

SMA Female To SSMA Female RF Coaxial Adapter – SMA(K) To SSMA(K)

SMA Female To SSMA Female RF Coaxial Adapter – SMA(K) To SSMA(K)

$1.67 USD
$1.67 USD
Sale Sold out

SMA Female To SSMA Female RF Coaxial Adapter – SMA(K) To SSMA(K)

Model:SMA/SSMA-KK

Product Overview

RF coaxial adapters of various specifications serve as essential bridging components to ensure proper connectivity between different connector series or within the same series. They are designed to maintain signal integrity during transitions between interfaces.

Applications:
Primarily used in system conversions and interconnections, particularly in test cables, RF measurement setups, and instrumentation environments.

Product Features:

  •     Interface: SMA male to SSMA female
  •     Compact size, ideal for dense installations
  •     High reliability and mechanical durability
  •     Excellent electrical performance with low insertion loss
  •     Suitable for high-frequency signal transmission and precision testing scenarios

🔧 Technical Specifications

Important Technical Parameter



Electrical property



 Temperature range -65～+125℃



Characteristic impedance



 50Ω Frequency range DC-18GHz



Dielectric withstanding voltage



 750V VSWR ≤1.05+0.012F(GHz)



Insulation resistance



 ≥5000MΩ Insertion loss

≤0.05√F(GHz)dB



Contact resistance



 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment



Center conductor



 Beryllium bronze,gold plating Insulating medium PTFE



Outer conductor



 Brass,gold plating Sealing ring /

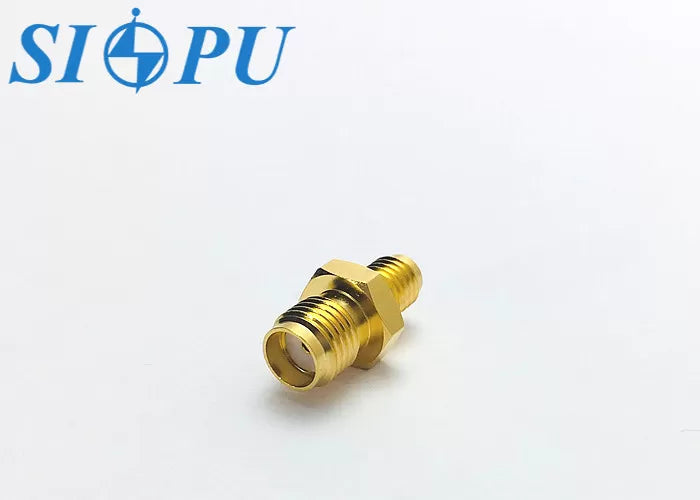

Product Appearance   SMA Female to SSMA Female RF Coaxial Adapter – SMA(K) to SSMA(K) 0
