SIPU CONNECTORS

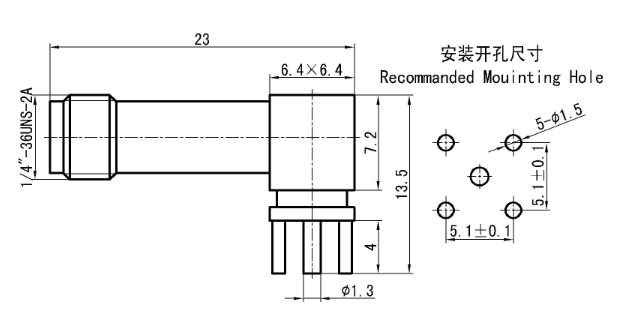

SMA Female RF Connector, Right Angle, PCB Mount Microstrip, Solder Type, up to 18 GHz
SMA Female RF Connector, Right Angle, PCB Mount Microstrip, Solder Type, up to 18 GHz
Regular price
$2.87 USD
Regular price
Sale price
$2.87 USD
Quantity
Couldn't load pickup availability
SMA Female RF Connector – Right Angle, PCB Microstrip Mount, Solder Type, up to 18 GHz
Model: SMA-KWHD5
The SMA-KWHD5 from SIPU is a right-angle SMA female RF connector designed for PCB microstrip solder mounting. It is engineered for compact RF circuits where space constraints, signal integrity, and long-term reliability are key. Supporting frequencies up to 18 GHz, this connector is ideal for microstrip line transitions in high-frequency applications.
Built with a gold-plated brass housing and gold-plated beryllium bronze center conductor, the connector provides excellent mechanical and electrical performance with low insertion loss and consistent mating durability.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMA Female RF Connector |
| Model Number | SMA-KWHD5 |
| Mounting Style | PCB Microstrip, Right Angle, Solder Type |
| Gender | Female |
| Configuration | Right Angle |
| Impedance | 50 Ω |
| Frequency Range | DC to 18 GHz |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.06 + 0.015F(GHz) |
| Insertion Loss | ≤ 0.08√F(GHz) dB |
| Contact Resistance | Center ≤ 3.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
| Microstrip Slot Dimensions | 0.5 mm (width) × 0.9 mm (depth) |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Brass | Gold Plated |
| Insulating Medium | PTFE | – |
