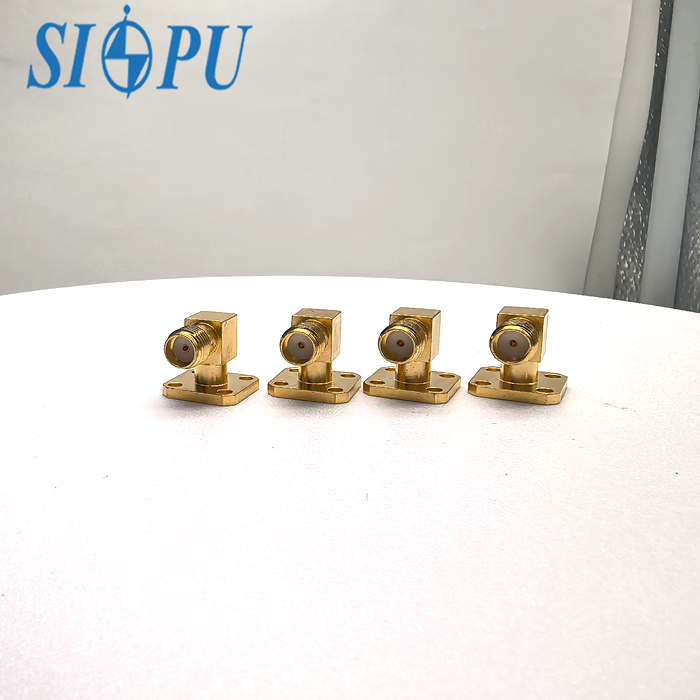

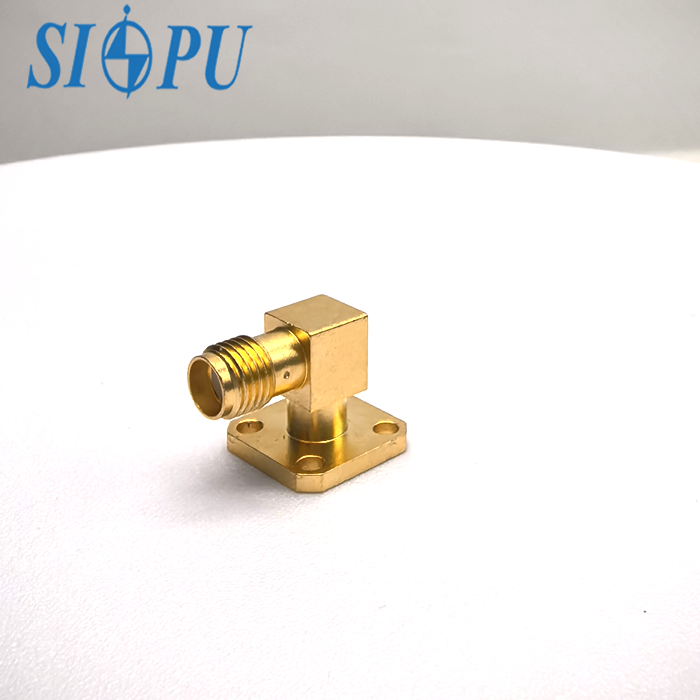

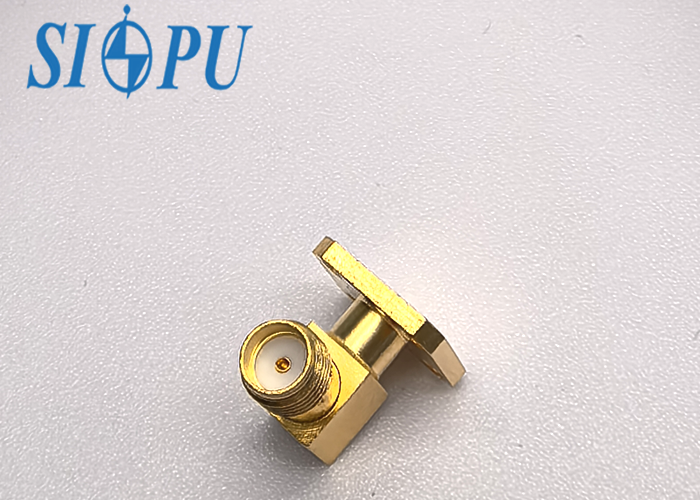

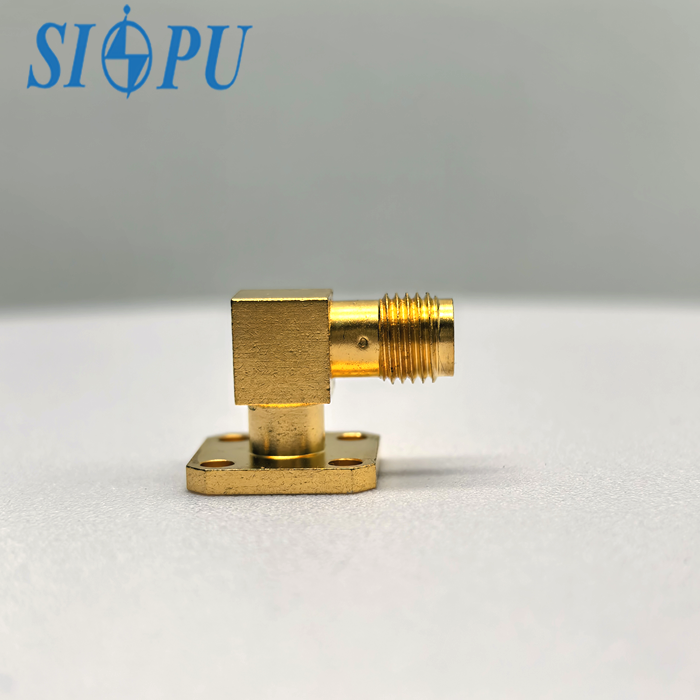

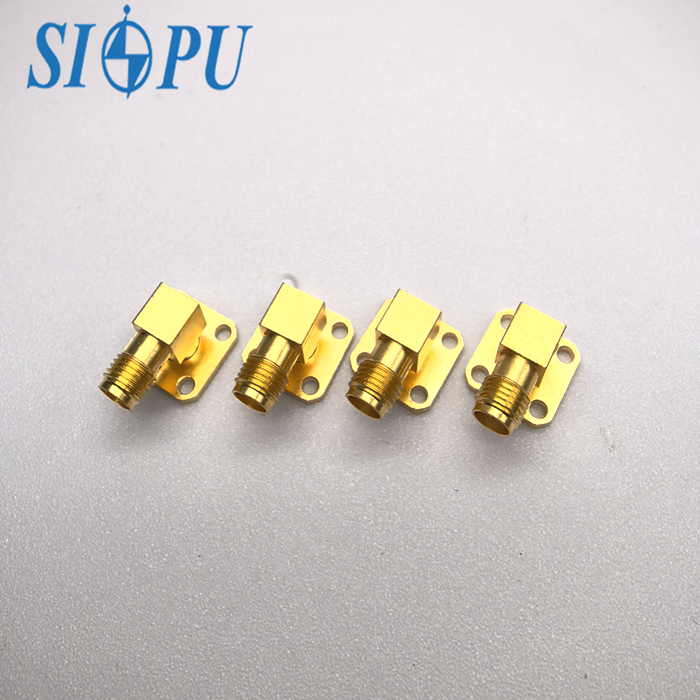

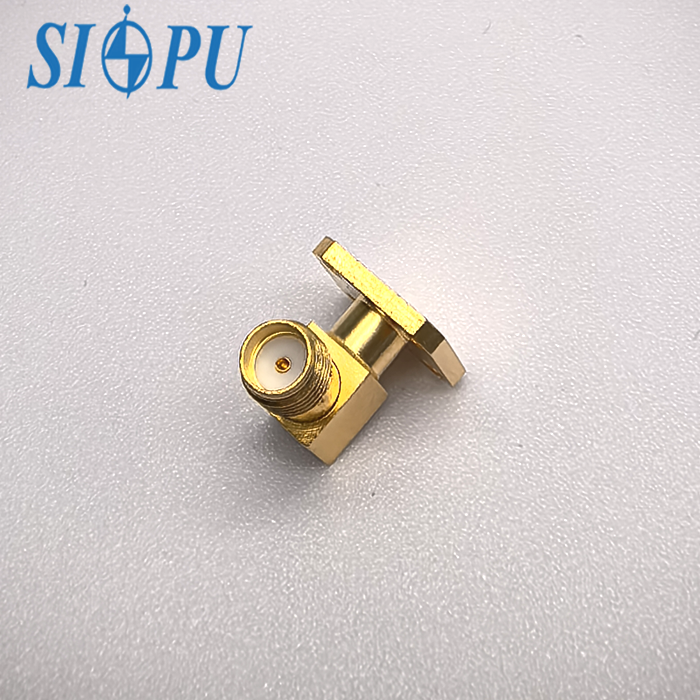

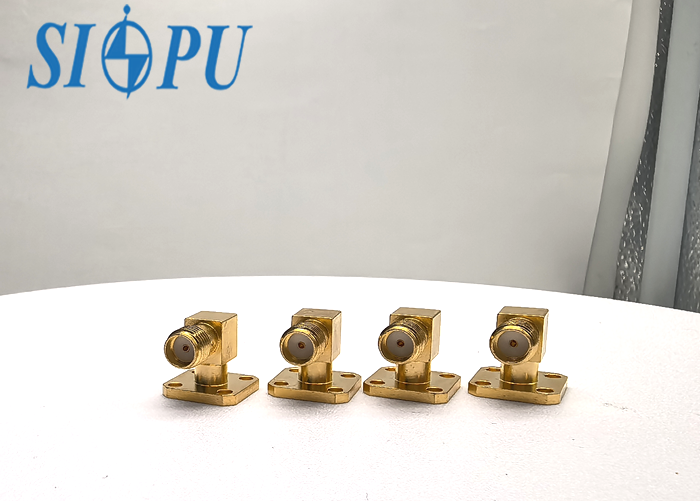

SMA Female RF Coaxial Flange Mount Microstrip Jack

SMA Female RF Coaxial Flange Mount Microstrip Jack

Model: SMA-KWFD5

Product Overview

The SMA series connector is a widely used small RF coaxial connector with a threaded coupling mechanism. It is designed for connecting cables or microstrip lines in RF circuits of digital communication systems and microwave equipment.

Product Features

• Flange Mounting with Screws: Ensures secure and stable installation.

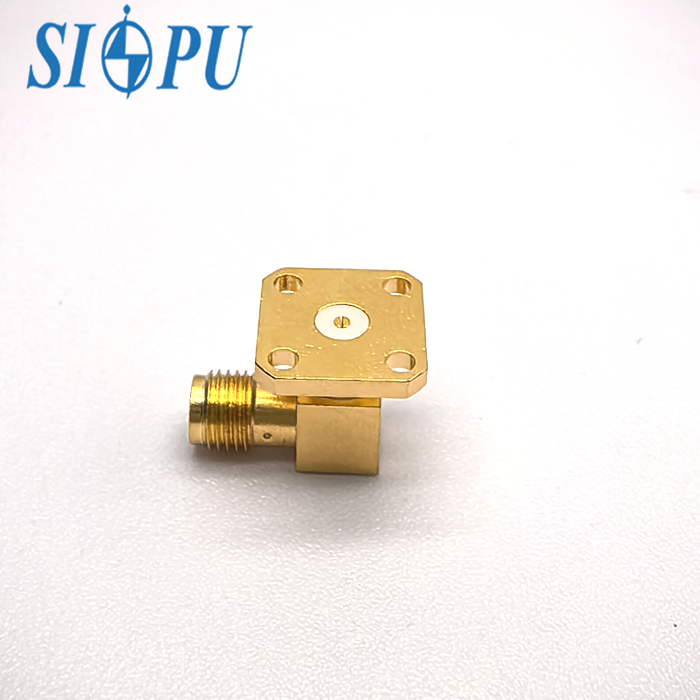

• Standard Flange Size: 12.7 × 12.7 mm flange for precise positioning.
• Plug-in Inner Conductor: Provides reliable electrical contact.
• Slotted Tail Design: Slot width 0.2 mm, depth 2.5 mm for specific installation or connection requirements.
• Wide Bandwidth: Suitable for high-frequency signal transmission.
• High Reliability: Stable performance in various applications.
• Long Service Life: Durable and wear-resistant design.
• Excellent Performance: Low signal loss and strong transmission efficiency.
