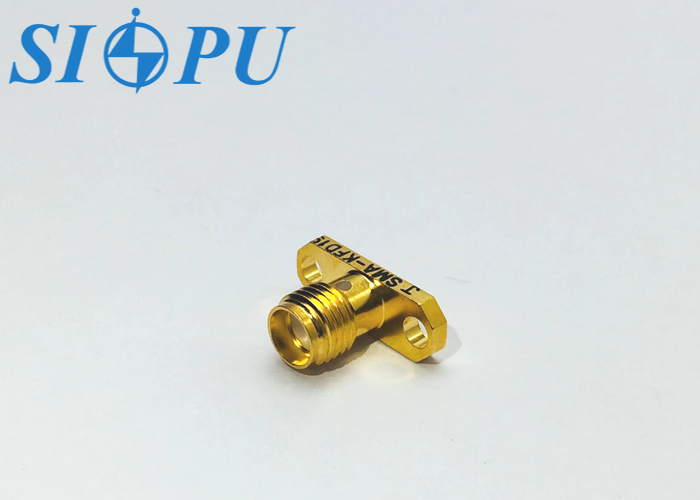

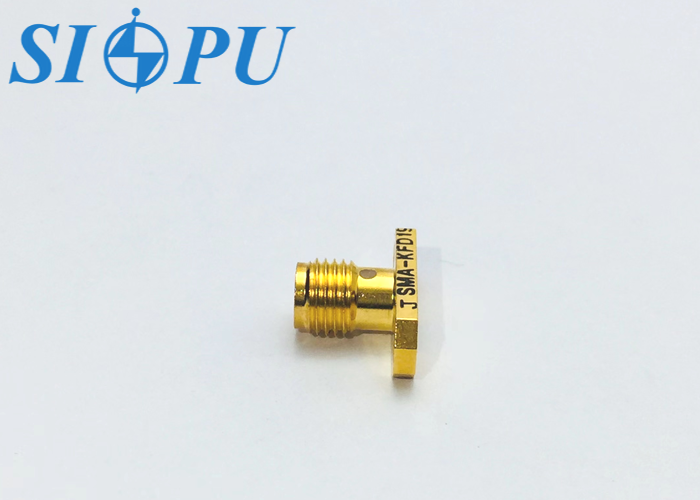

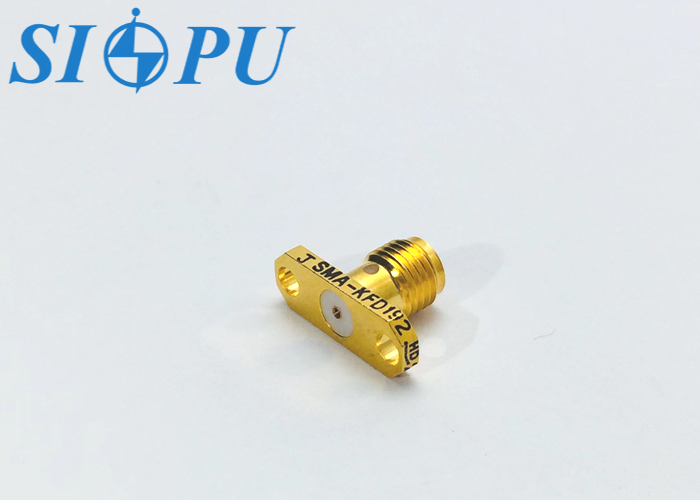

SMA Female RF Coaxial Connector Flange Mount Jack SMA-KFD192-1

SMA Female RF Coaxial Connector Flange Mount Jack SMA-KFD192-1

Regular price $4.05 USD
Regular price Sale price $4.05 USD
Sale Sold out
Quantity

SMA Female RF Coaxial Connector Flange Mount Jack

Model:SMA-KFD192-1

Product Overview

The SMA series connector is a widely used small RF coaxial connector with a threaded coupling mechanism. It is designed for connecting cables or microstrip lines in RF circuits of digital communication systems and microwave equipment.

Product Features

  • Threaded Coupling Design: Ensures secure and stable connection.
  • Two-Hole Flange Mounting: Provides firm and reliable installation.
  • Inner Conductor Mating Structure: Uses a plug-in contact design for stable electrical performance.
  • Precision Contact: ⌀0.8 mm female contact (elastic socket) with a depth of 2.4 mm.
  • High Performance: Features wide bandwidth and excellent RF performance.
  • Durability: High reliability and long service life.

Typical Applications

  • Wireless communication
  • Telecommunications
  • Network systems

🔧 Technical Specifications

Important Technical Parameters

Electrical property

Temperature range

-65~+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500 cycles

Material、Surface Treatment



Center conductor



Beryllium bronze,gold plating



Insulating medium



PTFE



Outer conductor



Brass,gold plating

Sealing ring

\

Product Specifications and Testing Indicators
