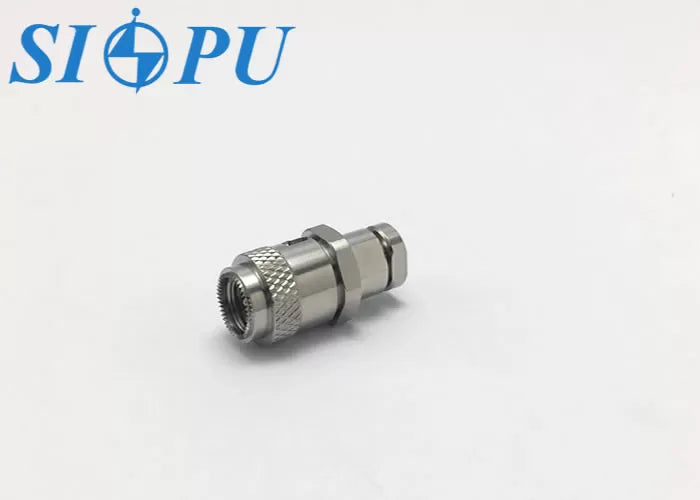

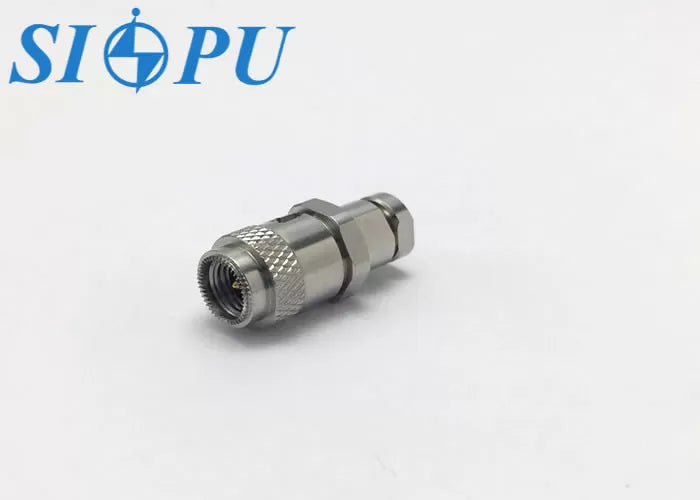

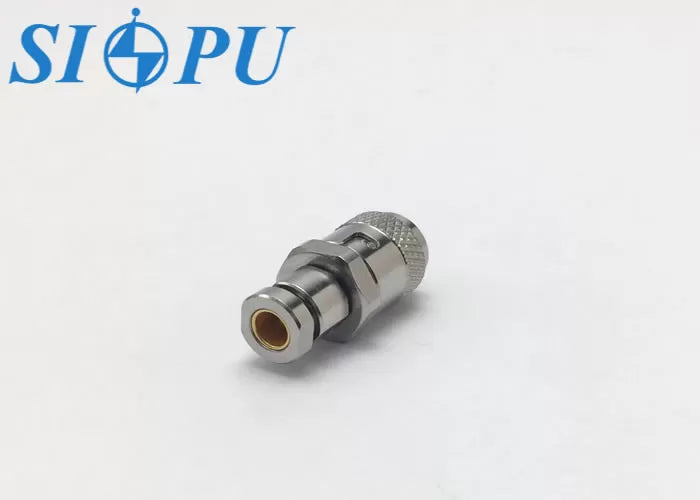

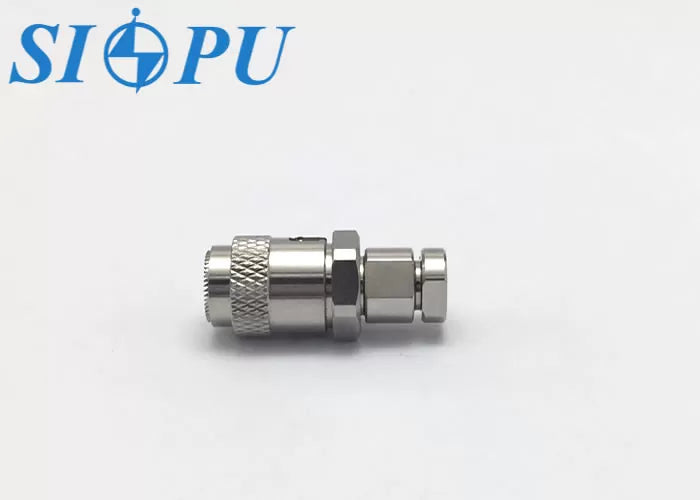

Self-Locking RF Connector – Axially Meshing, High Salt Spray, For UFB142A Cable
Model: SMA-J36-ZS
Product Overview
The SMA series connector is a compact, threaded RF connector widely used in microwave devices and digital communication systems. It is ideal for microstrip lines or coaxial cable connections in high-frequency circuits. Designed for harsh environments, this connector features strong corrosion resistance and has passed high salt spray testing.
Applications:
Networking equipment, wireless communication systems, telecommunications, and more.
Key Features:
- Compatible with UFB142A RF coaxial cable
- Self-locking (axial engagement) mechanism with SMA socket prevents sleeve rotation
- Wide frequency bandwidth and stable electrical performance
- Reliable connection with strong vibration resistance
- Easy to solder and install
- Excellent performance in demanding environments
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property |
Temperature range | -65～+125℃ | ||
|
Characteristic impedance |
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage |
1000V | VSWR | ≤1.05F(GHz)dB | |
|
Insulation resistance |
≥5000MΩ | Insertion loss |
≤0.05√F(GHz)dB |
|
|
Contact resistance |
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
Materials and Surface Treatment
| Center conductor | Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
stainless steel, passivating |
Sealing ring | Silicon rubber |
