SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable

Name: SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable
Brand: SIPU CONNECTORS
Price: 1.25 USD
Availability: InStock

$1.25 USD

Sale Sold out

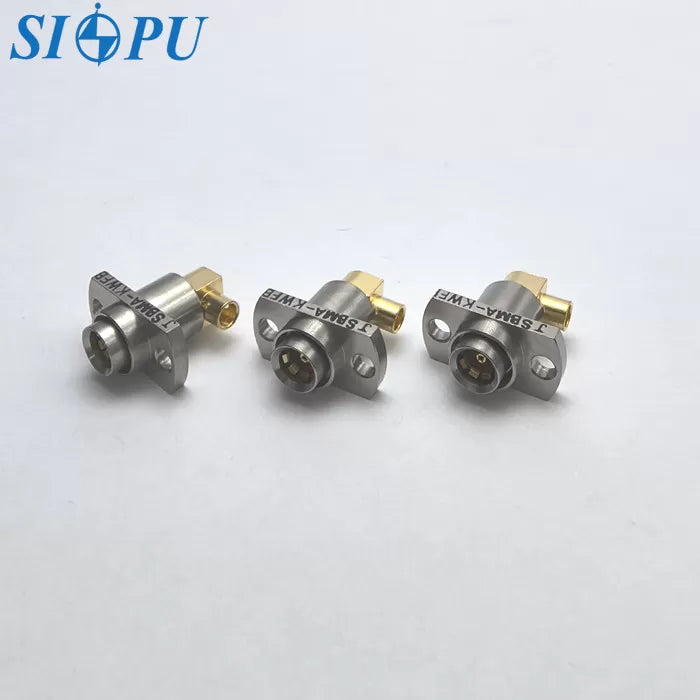

SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable

Model:SBMA-KWFB2G-1

Product Overview

The SBMA connector is a low-power blind-mate RF coaxial connector, serving as the miniaturized upgraded version of the BMA series. Its core advantages lie in the combination of compact size and floating flange design—the former meets the strict space requirements of high-density assemblies, while the latter provides a flexible connection solution for modular integration of complex systems, especially suitable for scenarios requiring rapid deployment and maintenance.

Application Scenarios

Specifically designed for blind-mate connections in cabinets, chassis, and various high-density modular components. It efficiently handles environments with limited internal space and dense connection points, ensuring stable and reliable signal transmission between modules.

Key Features

Two-hole floating flange mount: Compensates for installation errors through the floating structure, enhancing connection stability and adapting to assembly requirements under different working conditions.
Right-angle configuration: Optimizes wiring direction in confined spaces, reduces cable bending stress, and lowers the risk of signal loss.
Broad cable compatibility: Supports connections with #2 semi-flexible and semi-rigid cables, balancing wiring flexibility and structural stability.
Compact wideband design: Maintains wide frequency bandwidth performance in a small form factor, balancing space utilization and signal transmission quality.
Floating connection mechanism: Enables quick alignment in limited spaces; even with slight installation deviations, it can still ensure reliable mating, significantly reducing the difficulty of blind-mate operations.

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-55～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		675V	VSWR	≤1.06+0.015F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.08√F(GHz)dB
Contact resistance	Center conductor	≤8.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤3.0mΩ	Durability	500times
