Right-Angle Male RF Coaxial Connector – Solder Type For RG316/U Cable

Right-Angle Male RF Coaxial Connector – Solder Type For RG316/U Cable

Model:MCX-JW3-8

Product Overview

This MCX-type connector features a right-angle structure with a push-in self-locking design. Known for its compact size, light weight, and reliable electrical contact, it is widely used in microwave communication, GPS systems, weapon systems, and other high-frequency applications.

Applications

•     Base stations
•     Transmission systems
•     GPS modules and antennas
•     Instrumentation and RF equipment

Product Features

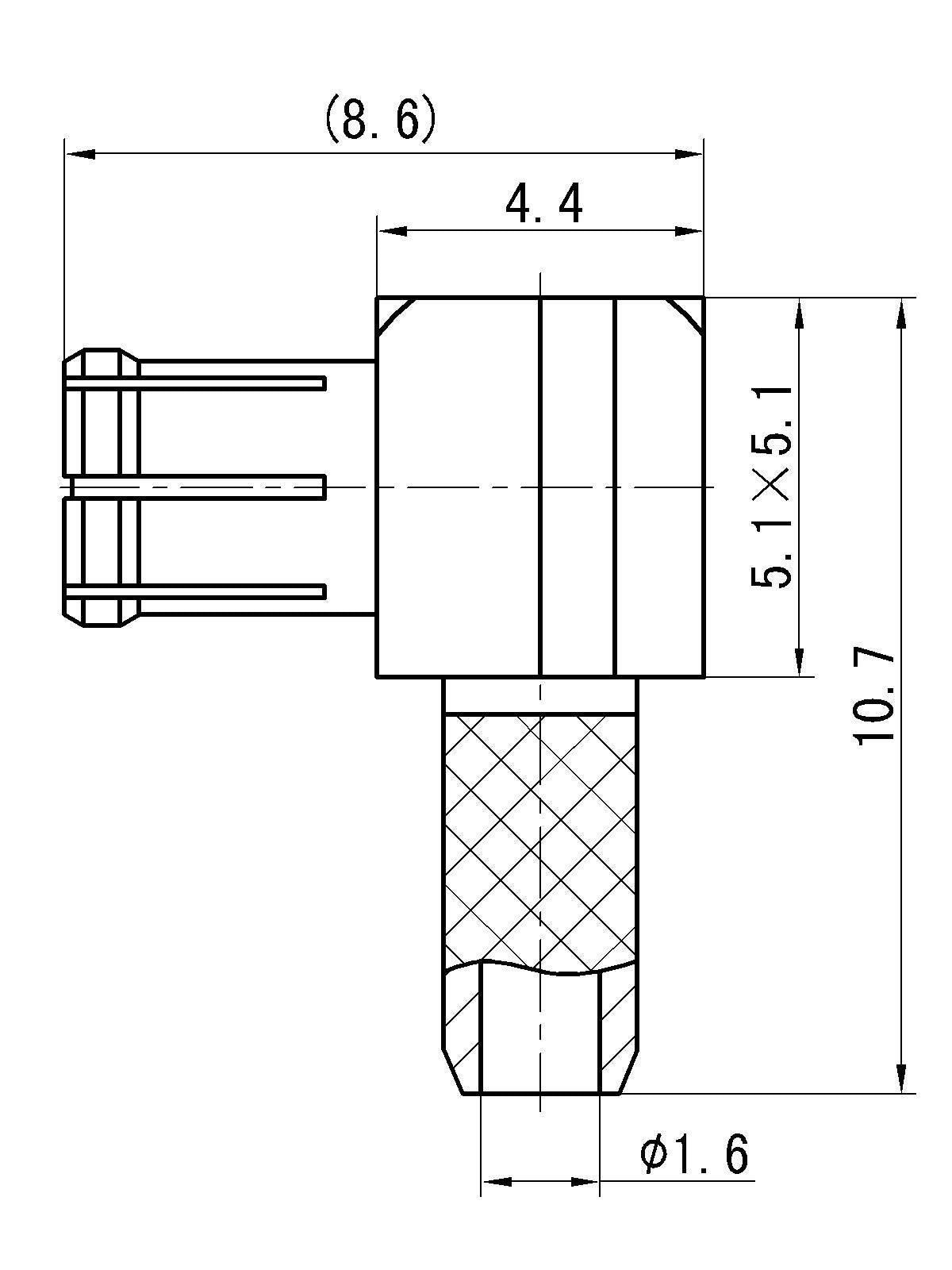

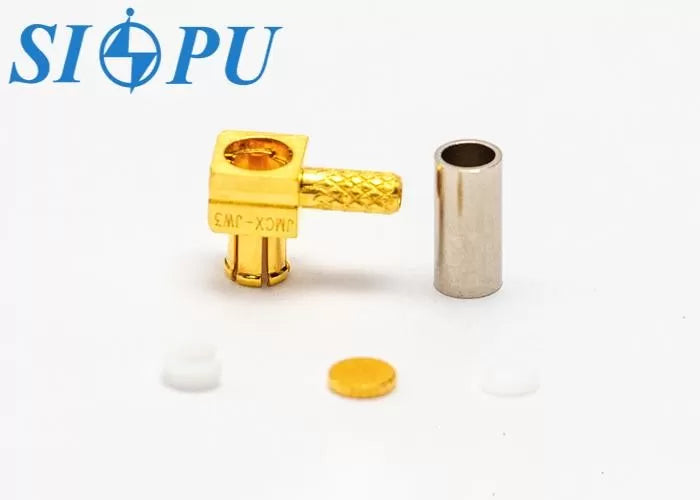

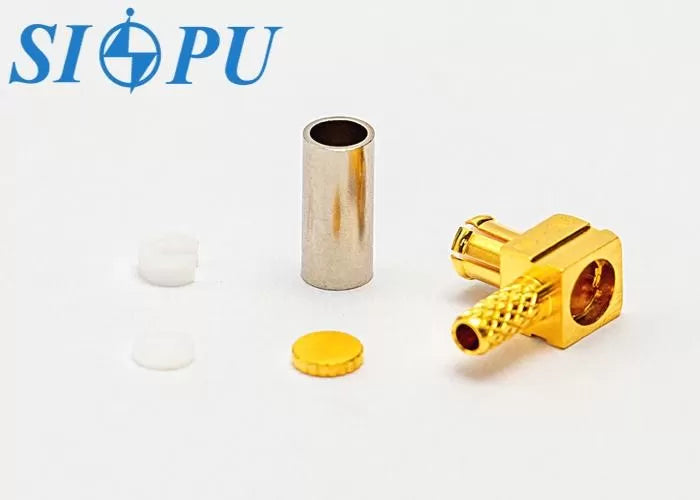

•     Right-angle (bent) male connector
•     Compatible with RG316/U coaxial cable
•     Solder termination for secure and easy assembly
•     Excellent electrical performance and signal stability
•     Compact and lightweight for high-density layouts

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-6GHz
Dielectric withstanding voltage		750V	VSWR	≤1.3
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
	Outer conductor	≤2.5mΩ	Durability	500Times

Materials and Surface Treatment

Center conductor	Brass, gold plating	Insulating medium	PTFE
Outer conductor	Beryllium copper, gold plating	/	/
