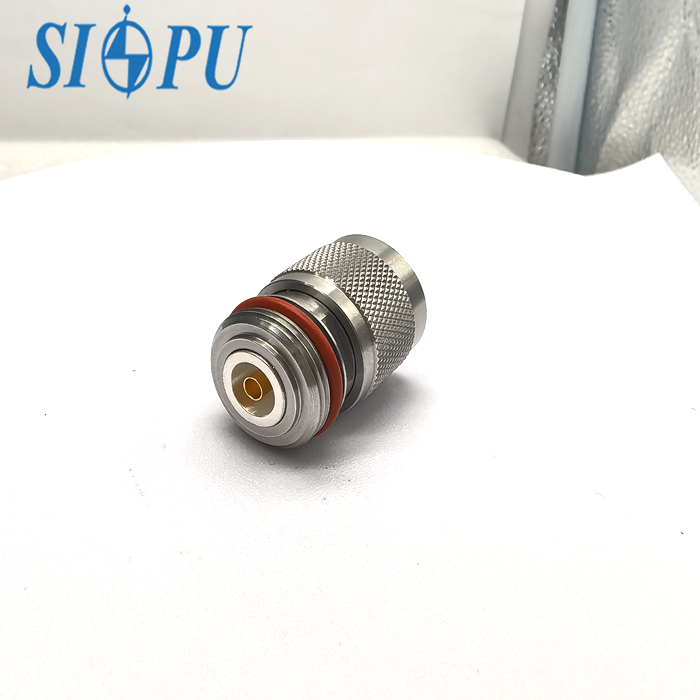

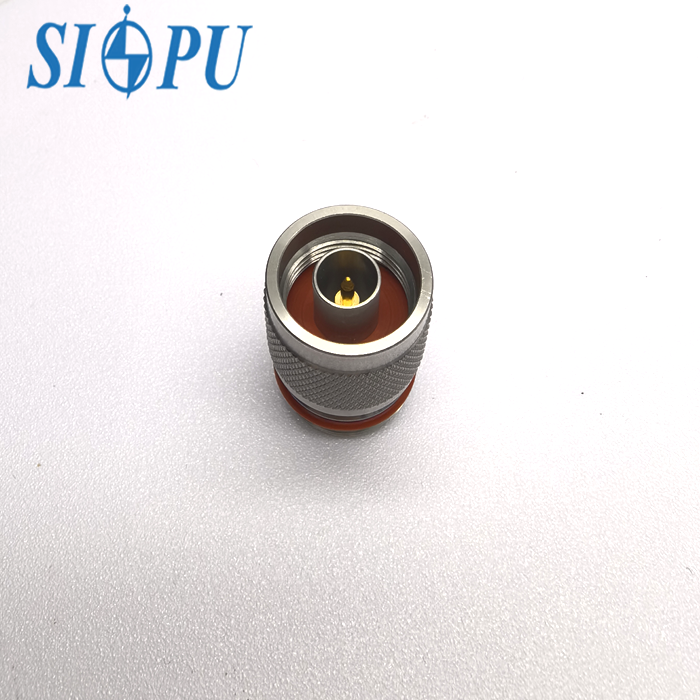

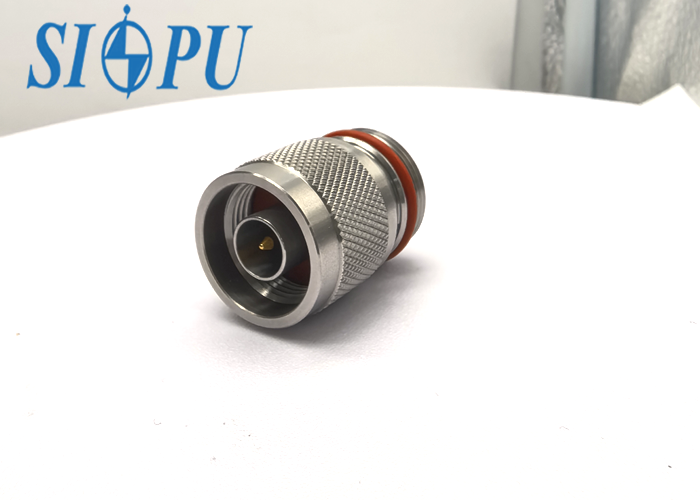

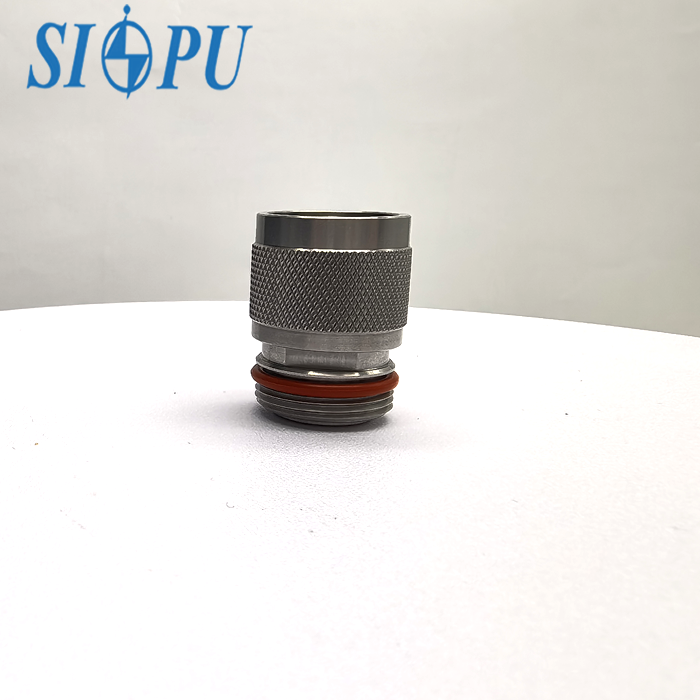

N-type Male RF Coaxial Connector, Threaded Mounting

N-type Male RF Coaxial Connector, Threaded Mounting

Regular price $2.39 USD
Regular price Sale price $2.39 USD
Sale Sold out
Quantity

N-type Male RF Coaxial Connector, Threaded Mounting

Model: N(m)-JD5A(G)

Product Overview

The N-type coaxial connector is a threaded RF connector widely used in wireless communication and sensing systems. Compared with other connector series, it can withstand higher power, making it suitable for high-performance RF applications.

Product Features

  • Threaded Mounting Structure: Ensures secure and stable connection.
  • Bulkhead Installation with Sealing Ring: Provides excellent waterproof performance.
  • Soldered Inner Conductor: Ensures reliable electrical connection.
  • Wide Bandwidth: Suitable for high-frequency signal transmission.
  • Strong Vibration Resistance: Performs well in harsh and dynamic environments.
  • High Reliability & Long Service Life: Designed for durable and stable operation.

Typical Applications

  • Ground transmission systems
  • Communication systems
  • Military and defense systems
  • Radio and wireless equipment

🔧 Technical Specifications

Important Technical Parameters

Electrical property

Temperature range

-65~+125℃

Characteristic impedance

50Ω

Frequency range

DC-11GHz

Dielectric withstanding voltage

1500V

VSWR

≤1.25

Insulation resistance

≥5000MΩ

Insertion loss

≤0.06√F(GHz)dB



Contact resistance

Center conductor

≤1.5mΩ

Mechanical property

Outer conductor

≤0.2mΩ

Durability

500 cycles

Material、Surface Treatment



Center conductor



Brass,gold plating



Insulating medium



PTFE



Outer conductor



Stainless steel,passivating



Sealing ring

Silicon rubber

Product Specifications and Testing Indicators
