SIPU CONNECTORS

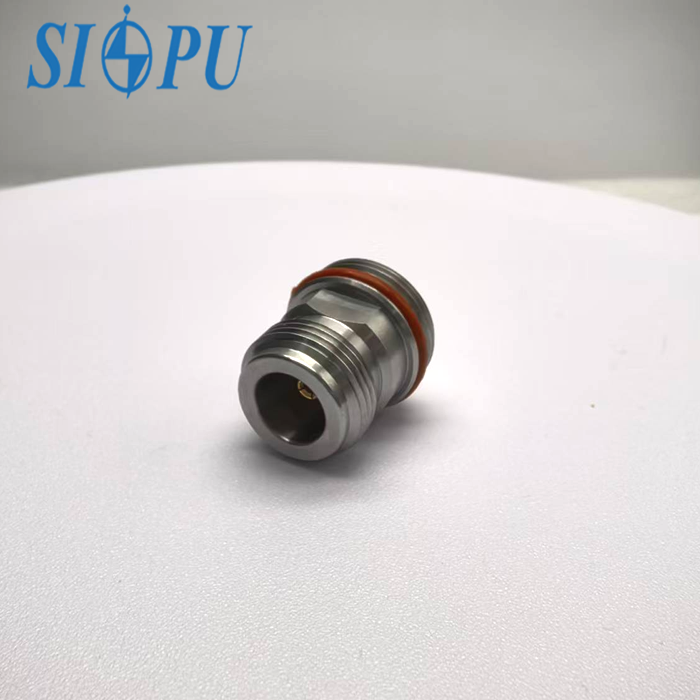

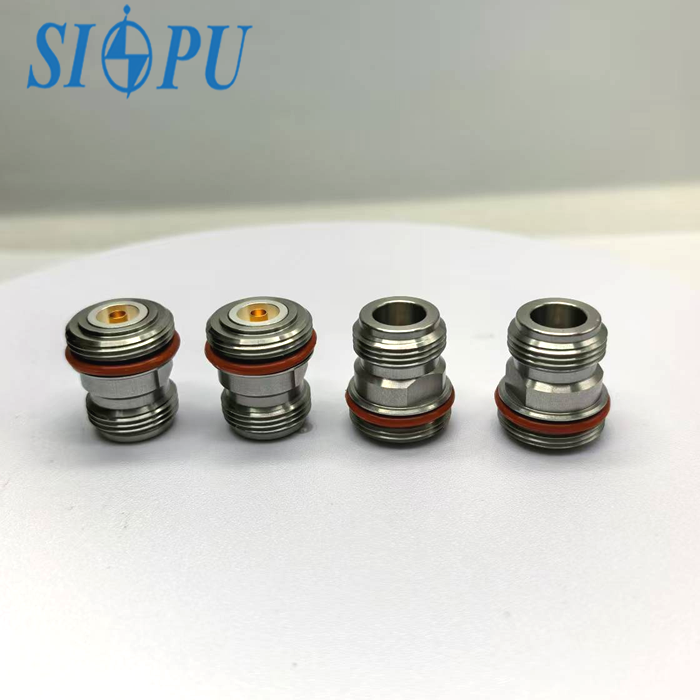

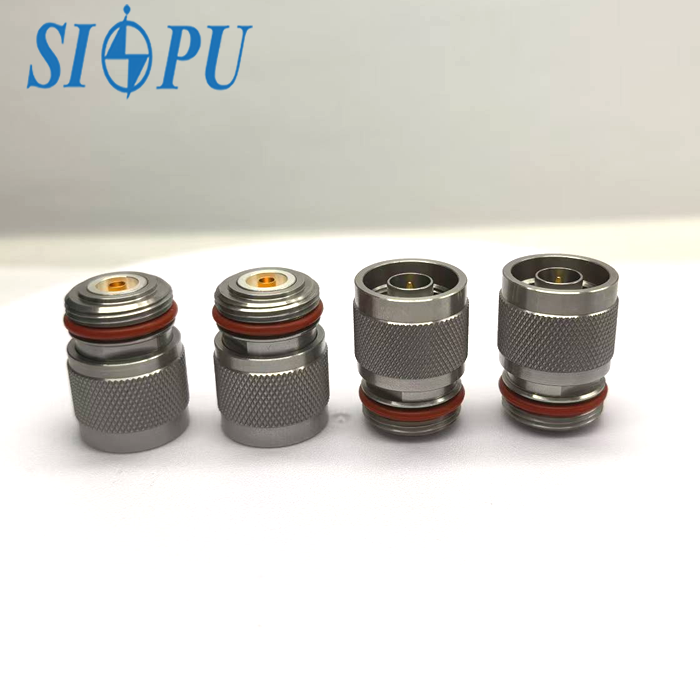

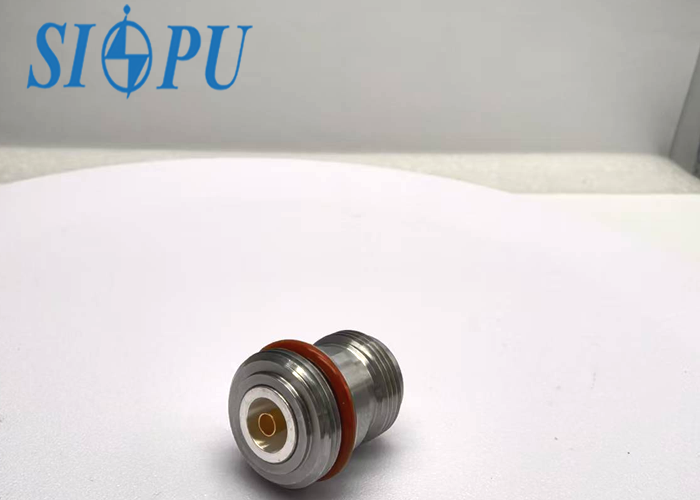

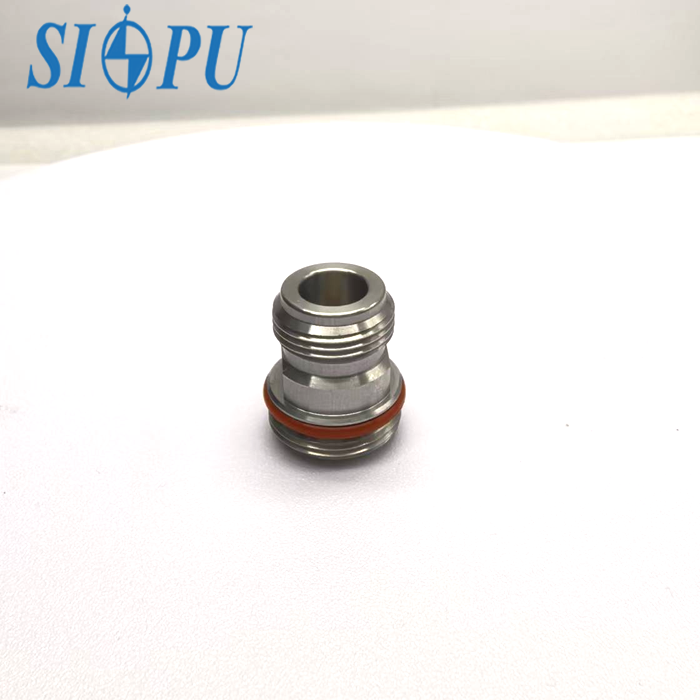

N-type Female RF Coaxial Connector with Threaded Mount and Sealing

N-type Female RF Coaxial Connector with Threaded Mount and Sealing

Regular price $2.96 USD
Regular price Sale price $2.96 USD
Sale Sold out
Quantity

N-type Female RF Coaxial Connector with Threaded Mount and Sealing

Model:N(m)-KD11A(G)

Product Overview

The N-type coaxial connector is a type of RF coaxial connector widely used in wireless communication and sensing systems. It typically features a threaded coupling mechanism and, compared with other connector series, is capable of handling higher power levels.

Product Features

  • Threaded Bulkhead Mounting: Ensures secure and stable installation.
  • Sealing Ring Design: Provides excellent watertight performance.
  • Soldered Inner Conductor: Ensures reliable electrical connectivity.
  • Wide Bandwidth: Suitable for high-frequency signal transmission.
  • Excellent Vibration Resistance: Performs reliably in demanding environments.
  • High Reliability & Long Service Life: Designed for durable, long-term use.

Typical Applications

  • Communication systems
  • Military and defense systems
  • Radio equipment
  • Ground transmission systems

🔧 Technical Specifications

Important Technical Parameters

Electrical property

Temperature range

-65~+125℃

Characteristic impedance

50Ω

Frequency range

DC-11GHz

Dielectric withstanding voltage

1500V

VSWR

≤1.25

Insulation resistance

≥5000MΩ

Insertion loss

≤0.06√F(GHz)dB



Contact resistance

Center conductor

≤1.5mΩ

Mechanical property

Outer conductor

≤0.2mΩ

Durability

500 cycles

Material、Surface Treatment



Center conductor



Beryllium bronze,gold plating



Insulating medium



PTFE



Outer conductor



Stainless steel,passivating



Sealing ring

Silicon rubber

Product Specifications and Testing Indicators
