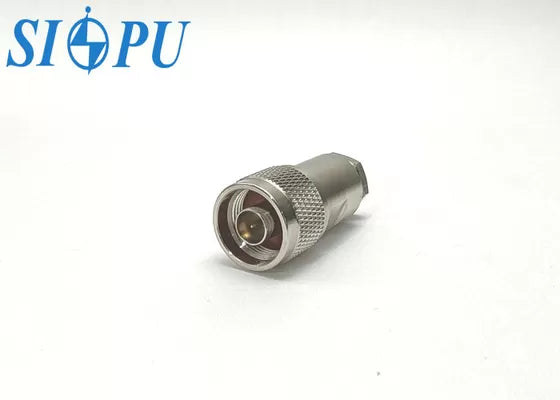

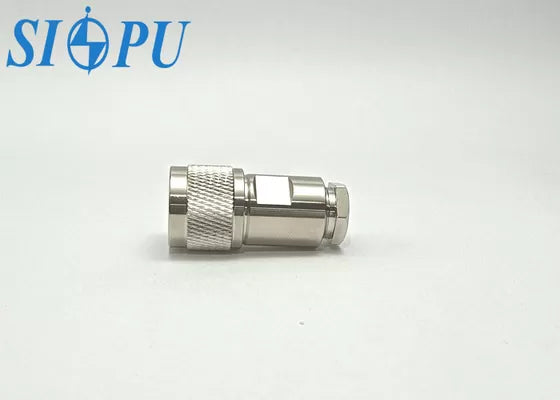

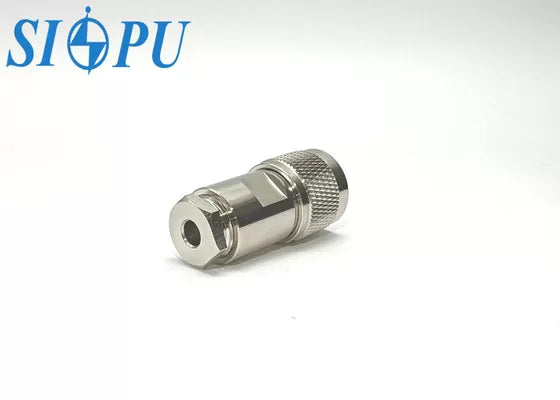

N Male Straight RF Connector for RG142/U Coaxial Cable
N Male Straight RF Connector for RG142/U Coaxial Cable
Couldn't load pickup availability

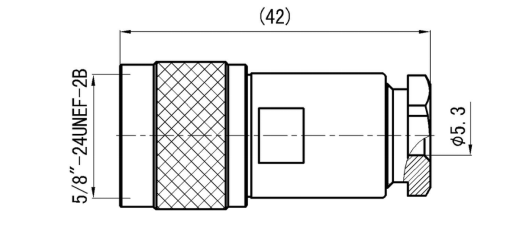

N Male Straight RF Connector for RG142/U Coaxial Cable
Model: N-J5
The N Male Straight RF Connector is a medium-power connector designed with a threaded coupling mechanism, compliant with MIL-C-39012 and IEC60169-16 standards. Known for its outstanding electrical performance and broad frequency bandwidth, it offers a secure and reliable connection and is fully compatible with internationally recognized counterparts.
Applications
Widely used in communications systems, radar equipment, broadcasting, and various wireless electronic devices.
Product Features
- Straight male N-type interface
- Compatible with RG142/U coaxial cable and similar specifications
- Reliable mechanical structure with threaded coupling
- Excellent electrical performance up to 11 GHz
- High durability and environmental resistance
🔧 Technical Specifications
|
Electrical property |
Temperature range |
-65～+125℃ |
||
|
Characteristic impedance |
50Ω |
Frequency range |
DC-11GHz | |
|
Dielectric withstanding voltage |
1500V |
VSWR |
≤1.3 | |
|
Insulation resistance |
≥5000MΩ |
Insertion loss |
≤0.06√F(GHz)dB |
|
|
Contact resistance |
Center conductor |
≤1.5mΩ |
Mechanical property |
|
|
Outer conductor |
≤0.2mΩ |
Durability |
500 times | |
⚙ Materials & Finish
|
Center conductor |
Brass, gold plating | Insulating medium | PTFE |
|
Outer conductor |
Brass, nickel plating | Sealing ring |
Silicon rubber |
