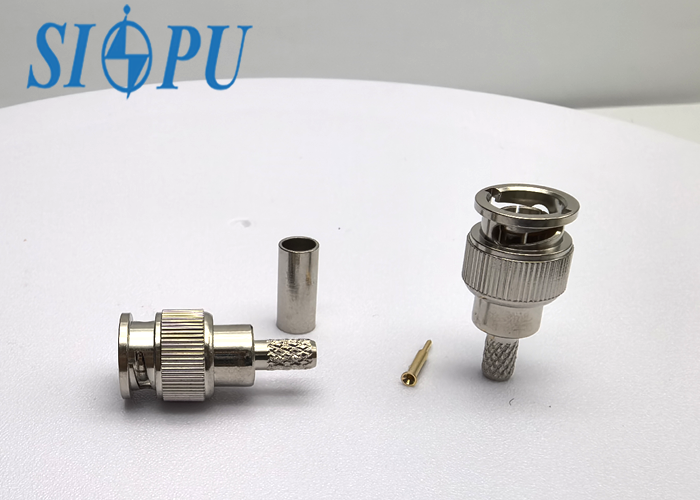

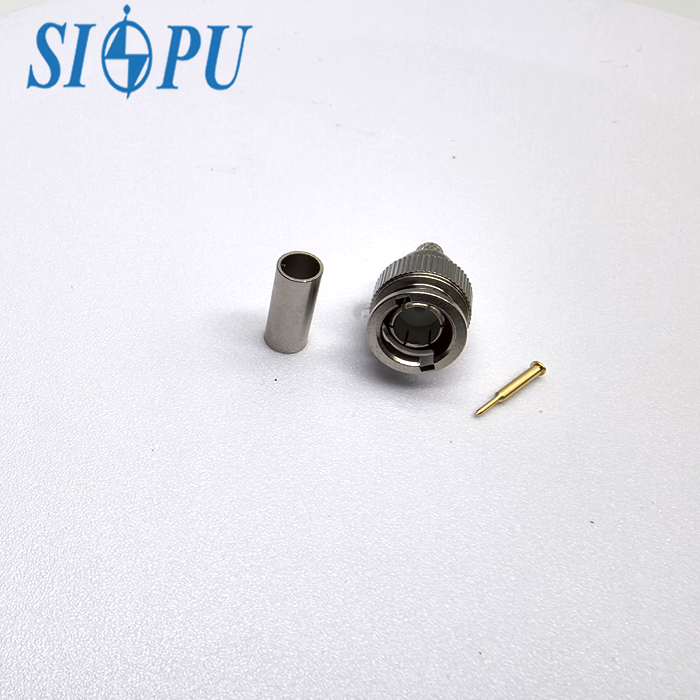

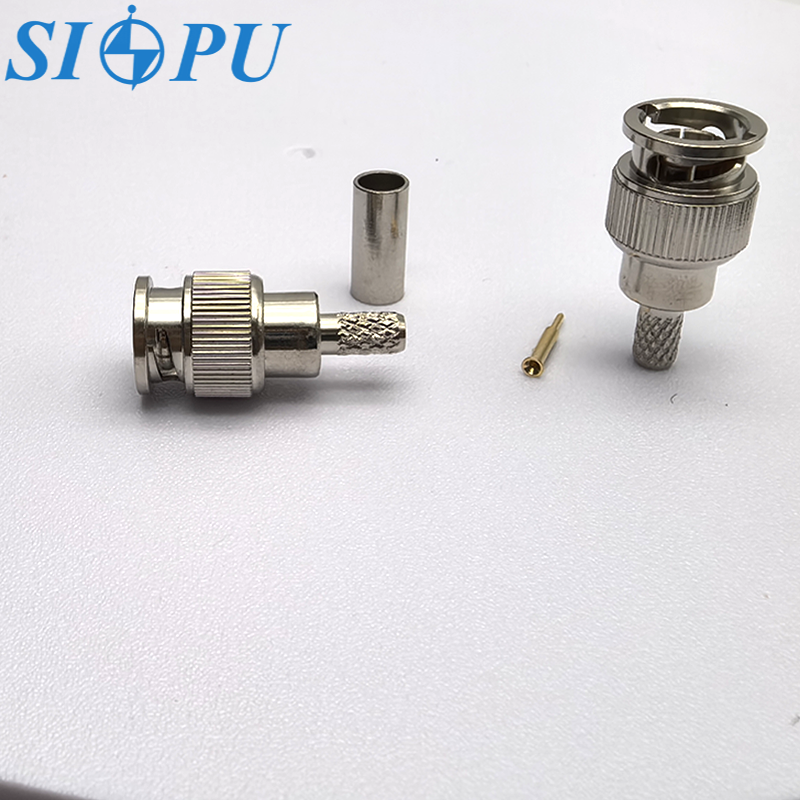

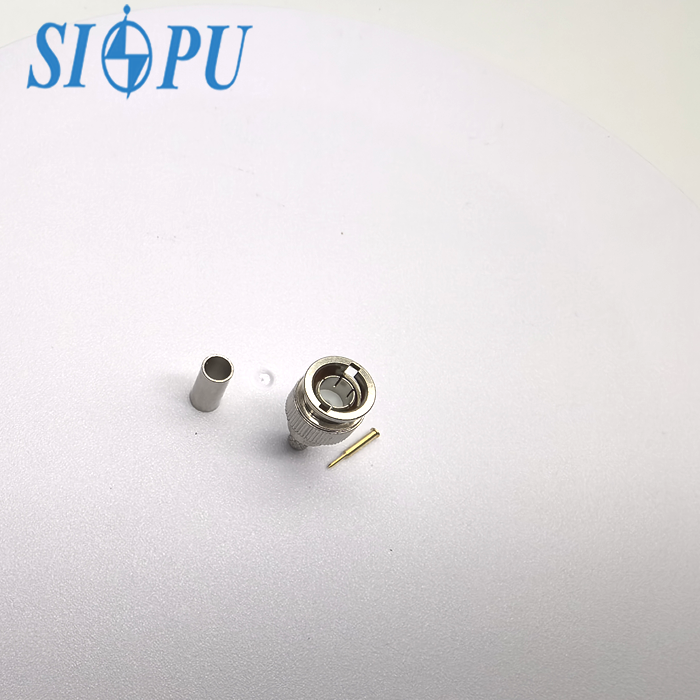

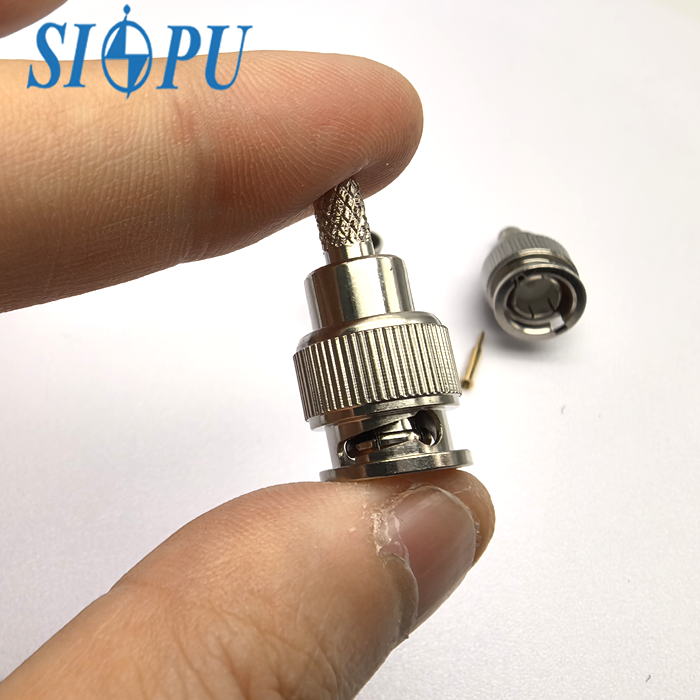

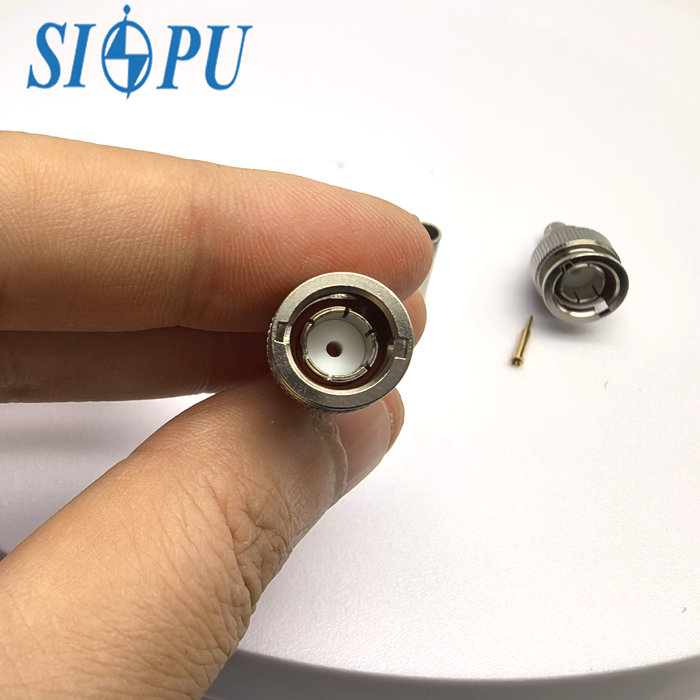

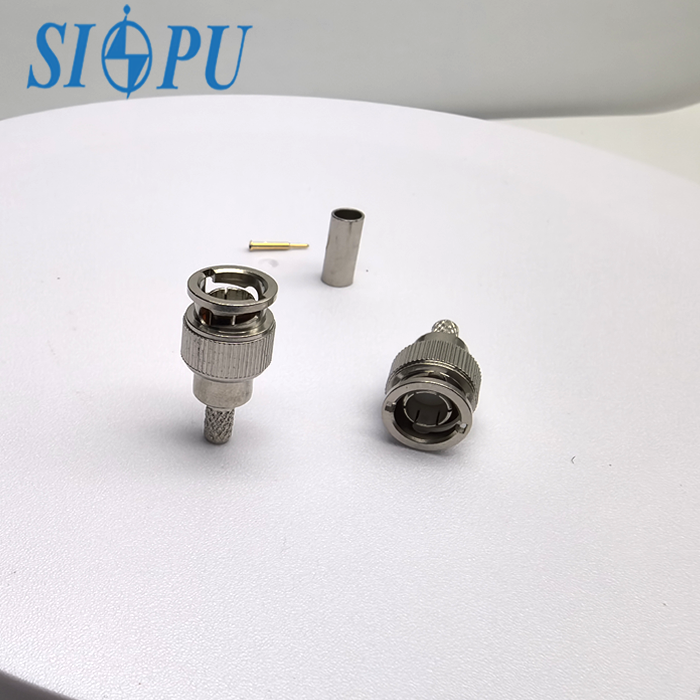

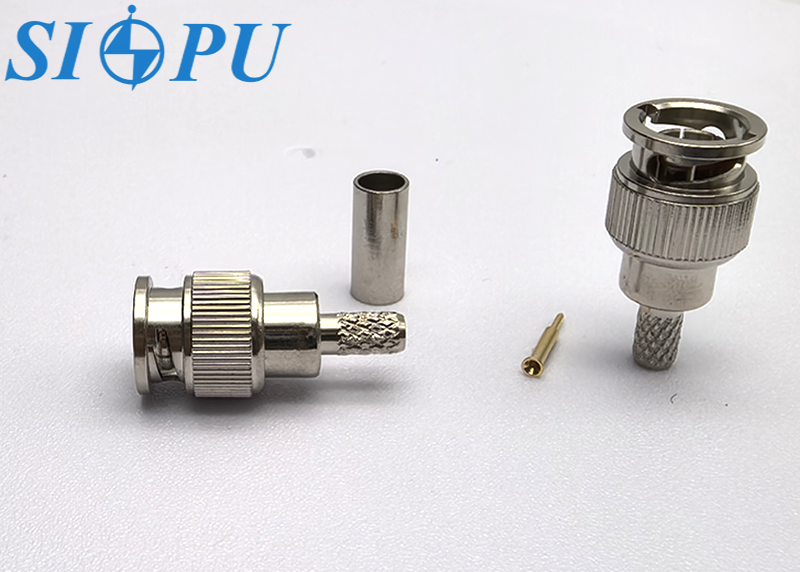

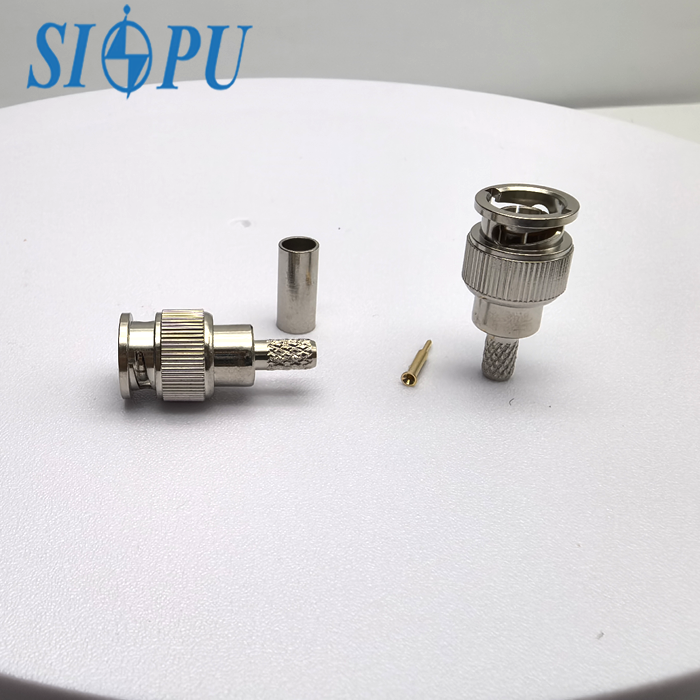

This Mini-BNC male crimp connector is designed for 75Ω coaxial cable applications including RG59 and RG62. It provides reliable signal transmission, stable impedance performance, and secure bayonet locking for broadcast video, telecommunications, and RF systems.
The connector is designed as a compatible alternative to Amphenol RF 031-70334, offering equivalent interface compatibility and cable fitment for standard Mini-BNC applications.
Product Features:
- 75Ω Mini-BNC male connector
- Compatible with RG59 and RG62 coaxial cable
- Bayonet locking mechanism for quick and secure mating
- Gold-plated center contact for reliable conductivity
- Stable signal transmission and low VSWR performance
- Suitable for broadcast, telecom, and RF applications
- Compatible alternative to Amphenol RF 031-70334
- Compatible Cable Types: Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S, RG59, RG62
Typical Applications:
- Broadcast and video transmission systems
- Telecommunications equipment
- RF test and measurement instruments
- Medical monitoring and portable diagnostic equipment
- Automotive communication and testing systems
- Industrial communication devices
- Aerospace and defense electronic systems
Technical Specifications
| Electrical property |
Temperature range |
-55～+165℃
|
| Characteristic impedance |
75 Ω
|
Frequency range |
DC - 1GHz |
| Dielectric withstanding voltage |
750 V |
VSWR |
≤ 1.3
|
| Insulation resistance |
≥ 5000 MΩ
|
Insertion loss |
/ |
| Contact resistance |
Center contact |
≤mΩ
|
Mechanical property |
| Outer contact |
≤mΩ
|
Durability |
≥ 500 mating cycles |
Material, Surface Treatment
|
Center contact
|
Brass, gold plated
|
Insulating medium
|
PTFE
|
|
Outer conductor
|
Bronze, nickel plated
|
Sealing ring
|
Silicon rubber
|
