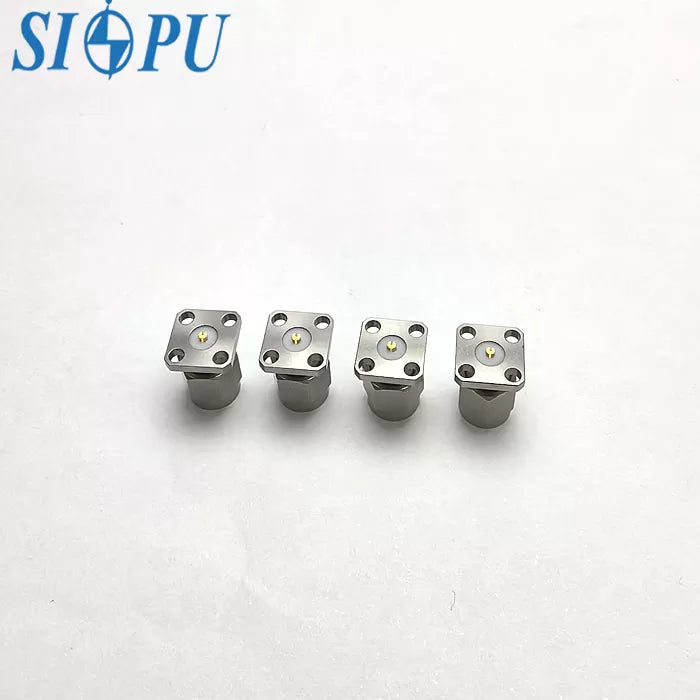

Model: SMA-JFD191G
Product Overview
SMA series connectors are widely used threaded coaxial connectors designed for secure, high-frequency signal connections. They are commonly employed in RF circuits of digital microwave devices and communication systems to connect microstrip lines or coaxial cables.
Applications:
Ideal for use in networking equipment, wireless communication systems, and telecommunication infrastructure.
Product Features:
- Threaded coupling for reliable connections
- Flange-mount design for easy and stable installation
- Wide frequency range with excellent electrical performance
- Compact size and long service life
- Optimized mounting pitch for more efficient space utilization compared to conventional products
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.05+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.05√F(GHZ)dB |
|
|
Contact resistance
|
Center conductor
|
≤3.0mΩ | Mechanical property | |
|
Outer conductor
|
≤2.0mΩ | Durability |
500times |
|
Materials and Surface Treatment
|
Center conductor
|
Brass, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Stainless steel, passivating | Sealing ring | Silicon rubber |
Product Structure Diagram
