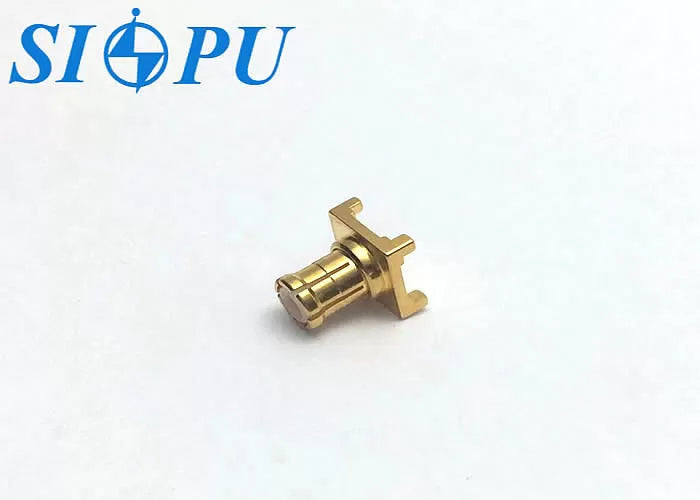

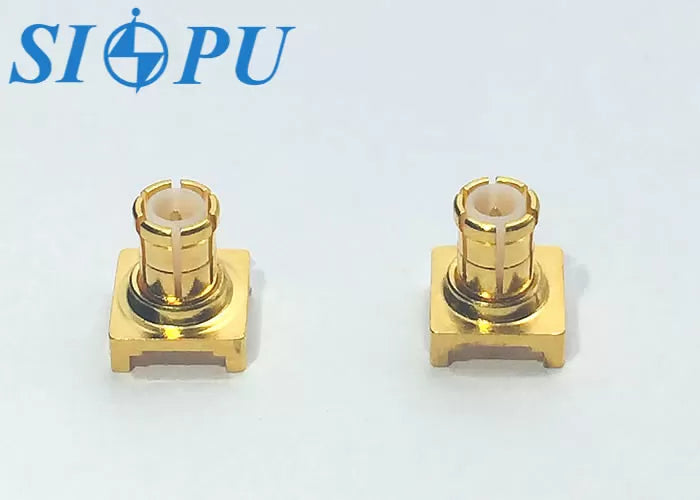

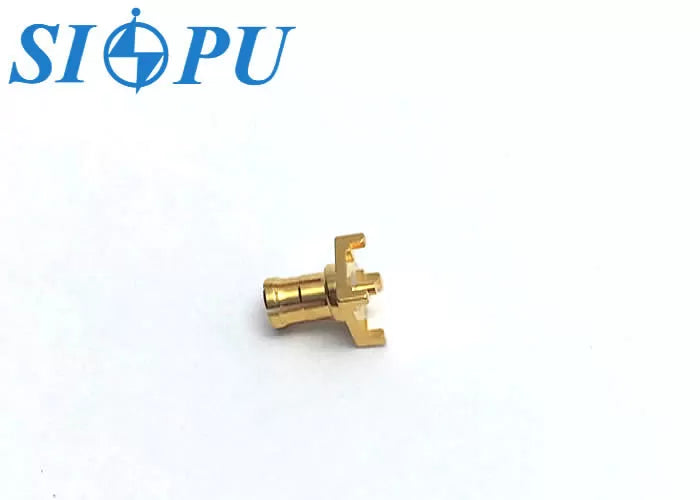

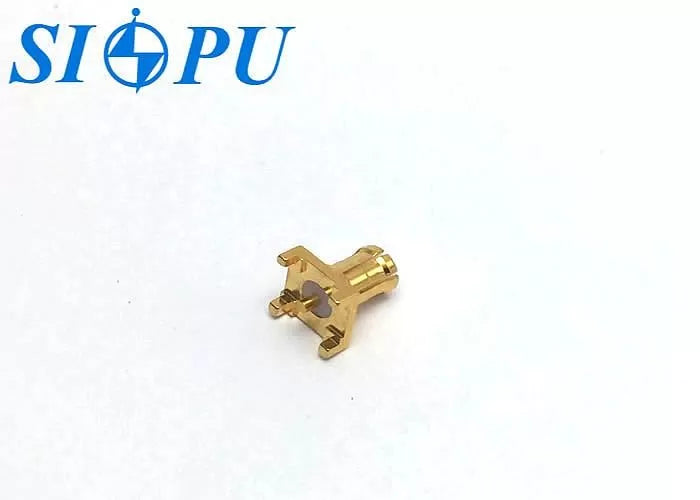

MCX Male RF Coaxial Connector – PCB Mount, Gold-Plated, Solder Type
MCX Male RF Coaxial Connector – PCB Mount, Gold-Plated, Solder Type
Couldn't load pickup availability
MCX Male RF Coaxial Connector – PCB Mount, Gold-Plated, Solder Type
Model:MCX-JHD-2
Product Overview
The MCX connector is a miniature RF coaxial connector featuring a push-in (snap-on) connection structure that enables quick and secure mating without threading. Designed for space-sensitive applications, it delivers reliable performance in a compact footprint.
Applications:
Ideal for use in:
- RF transmission systems
- GPS modules
- Antennas and base stations
- Communication terminals
- Test and measurement instrumentation
Product Features:
- Compact, lightweight design for high-density installations
- PCB solder-mount for firm board-level integration
- Fast push-on connection for quick assembly
- Excellent electrical performance and mechanical durability
- Commonly used in high-frequency circuits up to 6 GHz
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-6GHz | |
|
Dielectric withstanding voltage
|
750V |
VSWR |
≤1.35 | |
|
Insulation resistance
|
≥1000MΩ |
Insertion loss |
≤0.1√F(GHz)dB |
|
|
Contact resistance |
Center conductor |
≤5.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.5mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Brass, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass + Beryllium copper, gold plating |
/ | / |
