MCX Female RF Coaxial Connector – PCB Mount, Four-Leg Type
MCX Female RF Coaxial Connector – PCB Mount, Four-Leg Type
Couldn't load pickup availability
MCX Female RF Coaxial Connector – PCB Mount, Four-Leg Type

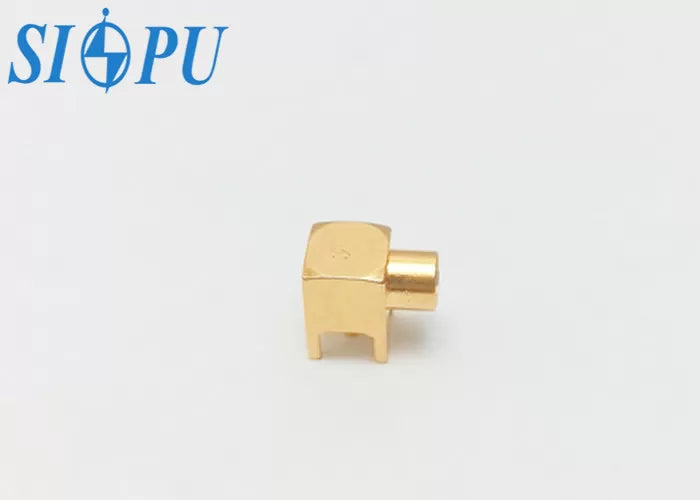

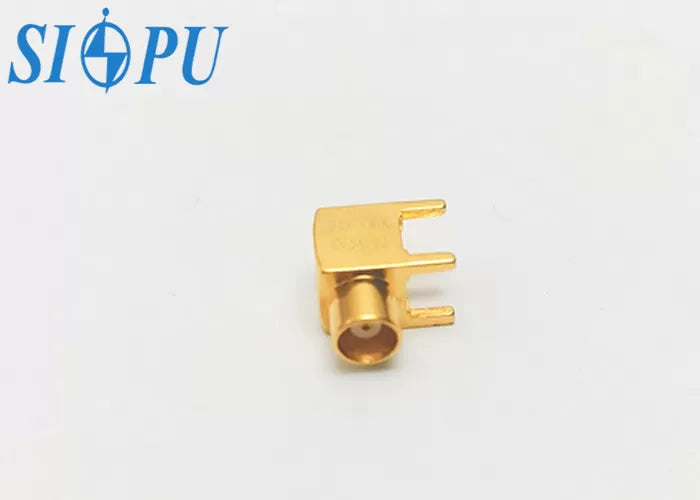

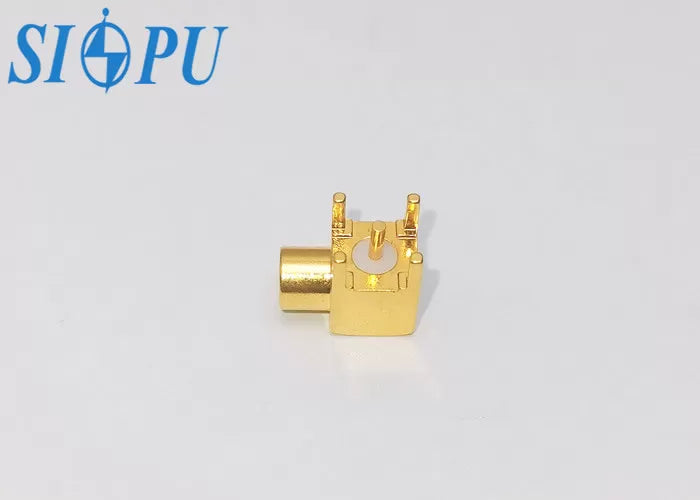

Model:MCX-KWHD1
Product Overview
The MCX series RF coaxial connectors feature a compact plug-in interface design, offering small size, light weight, excellent electrical performance, and high reliability. These connectors are ideal for applications where space is limited and quick connection is required.
Applications
- Communication base stations
- Radar systems
- Antennas
- RF instruments and modules
Product Features
- Right-angle (bent) structure
- Four-leg PCB mount for secure board installation
- Compact and lightweight design
- Quick plug-in and disconnect capability
- Suitable for high-density layouts with limited installation volume
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-6GHz | |
|
Dielectric withstanding voltage
|
750V |
VSWR |
≤1.4 | |
|
Insulation resistance
|
≥1000MΩ |
Insertion loss |
≤0.1√F(GHz)dB |
|
|
Contact resistance |
Center conductor |
≤5.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.5mΩ |
Durability |
500 Cycles | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium copper, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
/ | / |
Product Specifications
