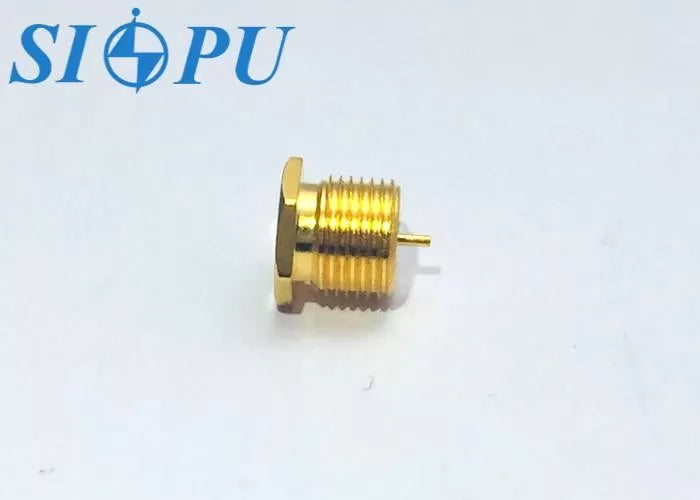

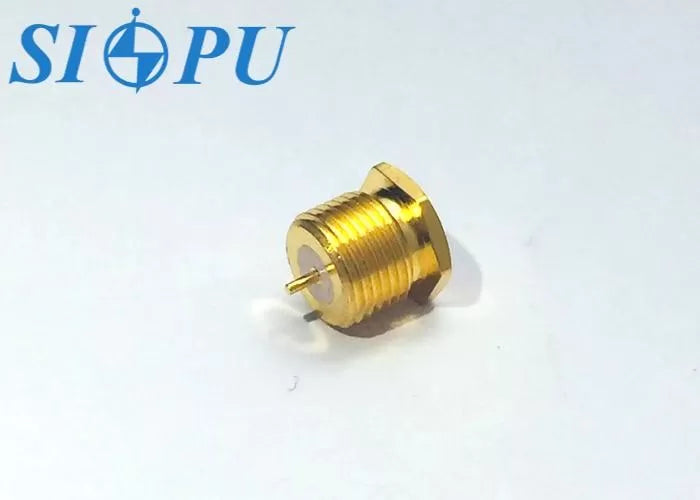

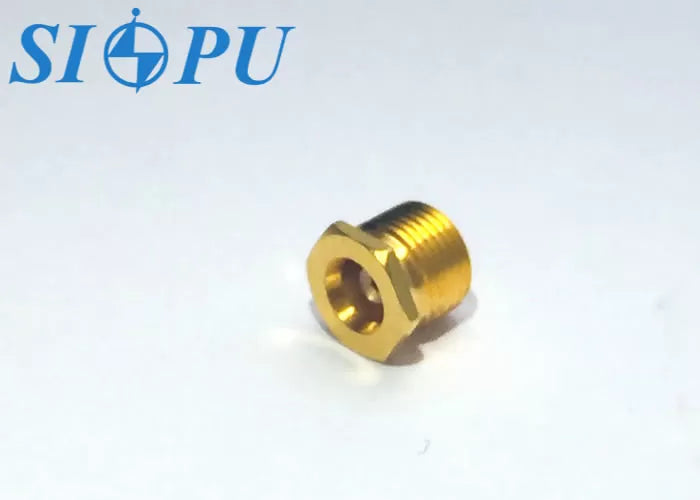

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
Couldn't load pickup availability
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
Model:MCX-KYD2-2
Product Overview
The MCX series RF coaxial connectors feature a compact plug-in interface design, offering small size, light weight, excellent electrical performance, and high reliability. These characteristics make them ideal for applications with strict space and weight constraints.
Applications
- Antennas
- Base station systems
- Instrumentation
- GPS modules
- Transmission systems
Product Features
- Threaded installation, typically mounted within a cavity
- Compact and lightweight for space-limited designs
- Easy and secure installation
- Superior electrical performance and connection reliability
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property |
Temperature range |
-55～+125℃ | ||
|
Characteristic impedance |
50Ω |
Frequency range |
DC-6GHz | |
|
Dielectric withstanding voltage |
750V |
VSWR |
≤1.35 | |
|
Insulation resistance |
≥1000MΩ |
Insertion loss |
≤0.1√F(GHz)dB | |
|
Contact resistance |
Center conductor |
≤5.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.5mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
/ | / |
Product Specifications
