MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
Couldn't load pickup availability

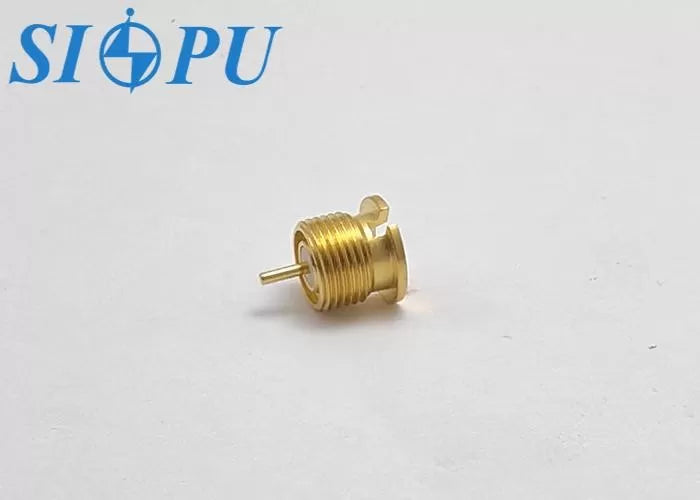

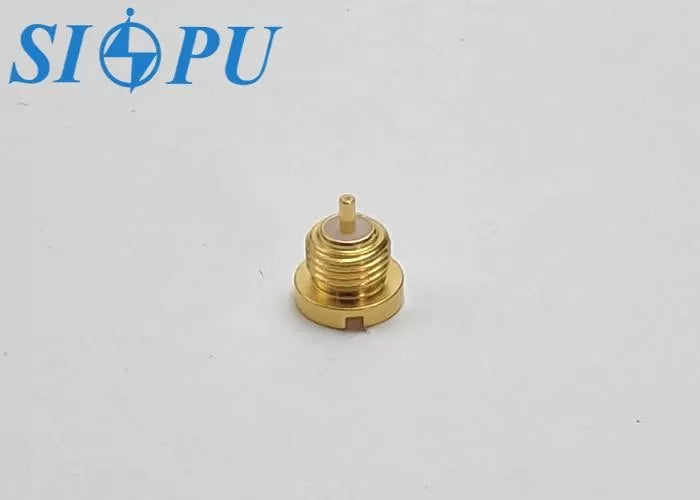

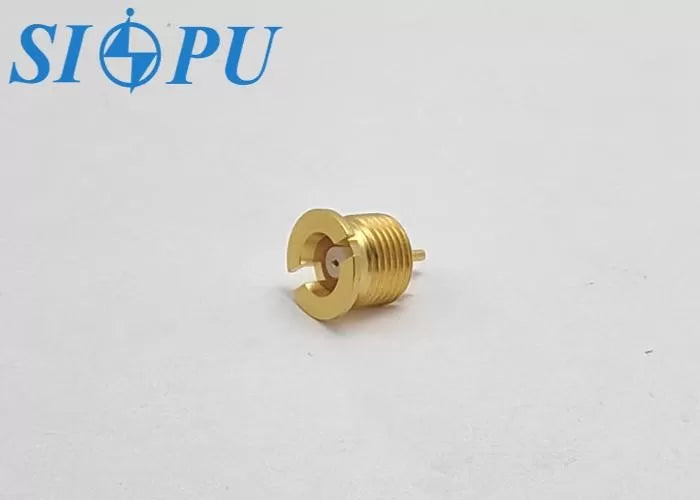

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
Model:MCX-KYD27
Product Overview
The MCX connector features a push-in connection structure, offering quick and convenient mating along with compact size, reliable contact, and excellent electrical performance. It is widely used in microwave communication, GPS systems, and military applications where space, speed, and performance are critical.
Applications
- Antennas
- Base stations
- GPS systems
- Instrumentation
- Weapon systems
Product Features
- Threaded mounting structure, typically installed within a cavity
- Compact and lightweight design
- Fast and secure connection
- Stable electrical performance in high-frequency environments
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-6GHz | |
|
Dielectric withstanding voltage
|
750V |
VSWR |
≤1.3 | |
|
Insulation resistance
|
≥1000MΩ |
Insertion loss |
≤0.1√F(GHz)dB |
|
|
Contact resistance |
Center conductor |
≤5.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.5mΩ |
Durability |
500Times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
/ | / |
Product Specifications
