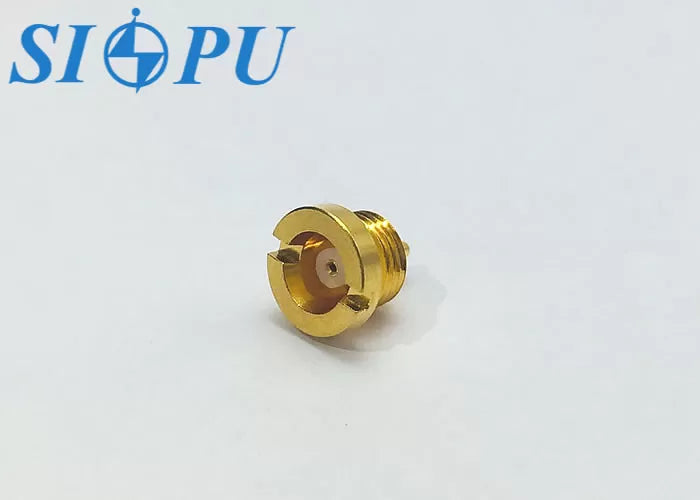

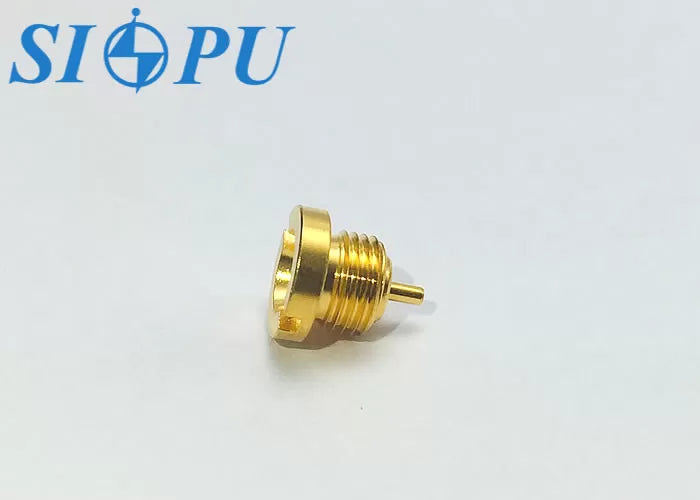

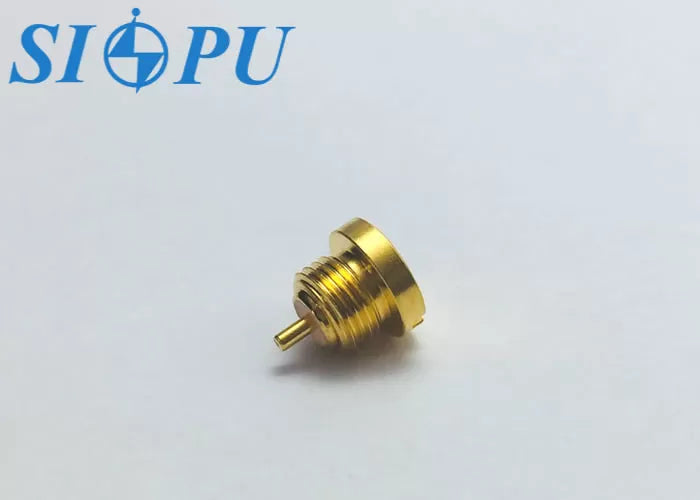

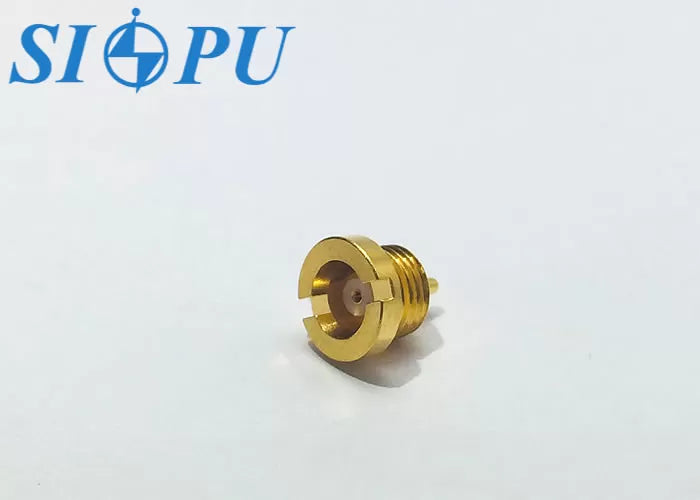

Model:MCX-KYD9
Product Overview
The MCX connector features a push-in coupling structure that enables quick and easy connections. With its compact size, light weight, and reliable performance, it is widely used in applications where installation space is limited and high-frequency signal integrity is required.
Applications
- Antennas
- Base station systems
- GPS modules
- Instrumentation
- Transmission systems
Product Features
- Threaded mounting, typically installed within a cavity
- Compact and lightweight design
- Easy and secure connection
- Excellent electrical performance in high-frequency applications
🔧 Technical Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-6GHz | |
|
Dielectric withstanding voltage
|
750V |
VSWR |
≤1.3 | |
|
Insulation resistance
|
≥1000MΩ |
Insertion loss |
≤0.1√F(GHz)dB |
|
|
Contact resistance |
Center conductor |
≤5.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.5mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating |
Insulating medium |
PTFE |
|
Outer conductor |
Brass, gold plating |
/ | / |
Product Specifications
