BNC Male To SMA Male RF Coaxial Adapter (BNC(J)–SMA(J))

BNC Male To SMA Male RF Coaxial Adapter (BNC(J)–SMA(J))

$0.78 USD
$0.78 USD
Sale Sold out

BNC Male To SMA Male RF Coaxial Adapter (BNC(J)–SMA(J))

Model:BNC/SMA-JJ

Product Overview

RF coaxial adapters of various specifications are essential components that ensure proper signal transfer between connectors of the same or different series. They typically serve as bridging elements to enable seamless interconnection across diverse RF systems.

Application Scope:
Commonly used for system conversion and connection in applications such as video signal transmission, test cables, and electronic testing instruments.

Product Features:

  •     Interfaces: BNC female to SMA female
  •     Excellent electrical performance with minimal insertion loss
  •     Bayonet and threaded coupling mechanisms ensure secure and stable connections
  •     Strong environmental resistance for demanding operating conditions
  •     High reliability and long service life
  •     Ideal for hybrid RF systems requiring inter-series connectivity

🔧 Technical Specifications

Important Technical Parameter



Electrical property



 Temperature range -65～+125℃



Characteristic impedance



 50Ω Frequency range DC-4GHz



Dielectric withstanding voltage



 1000V VSWR ≤1.3



Insulation resistance



 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB



Contact resistance



 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment



Center conductor



 Brass, gold plating Insulating medium PTFE



Outer conductor



 Brass, nickel plating Sealing ring Silicon rubber

Product Appearance

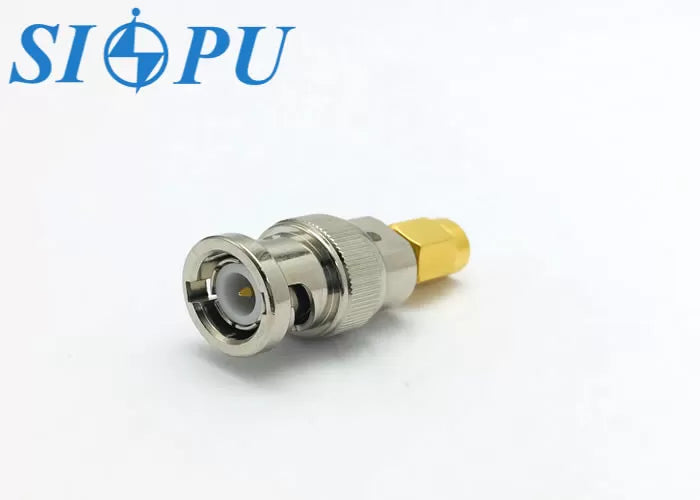

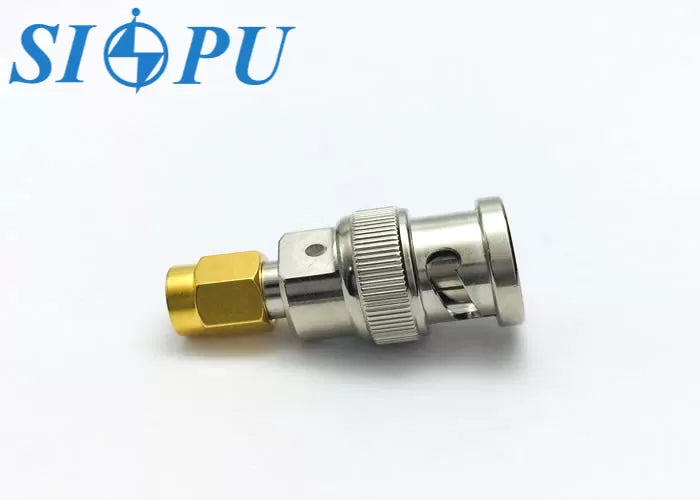

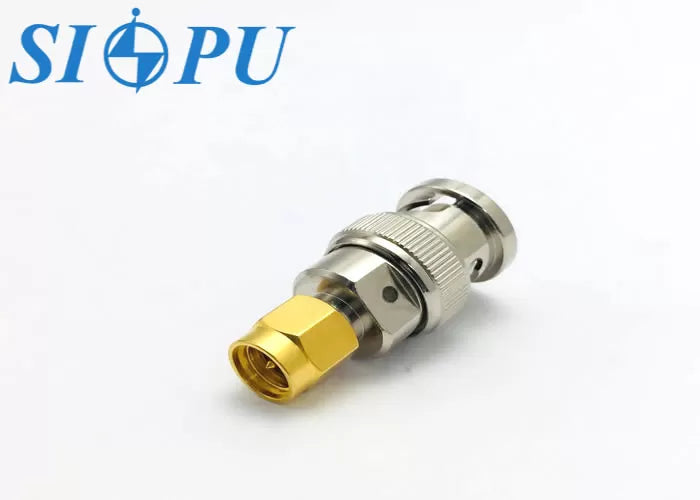

BNC Male to SMA Male RF Coaxial Adapter (BNC(J)–SMA(J)) 0
