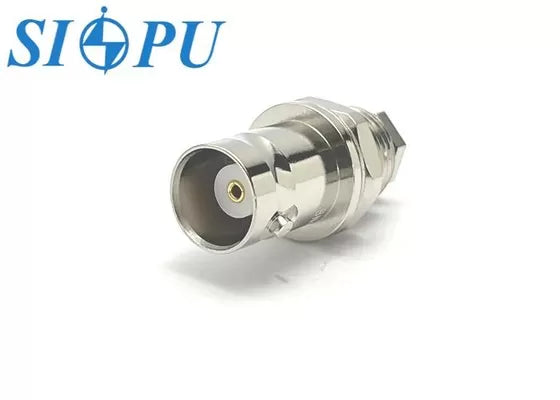

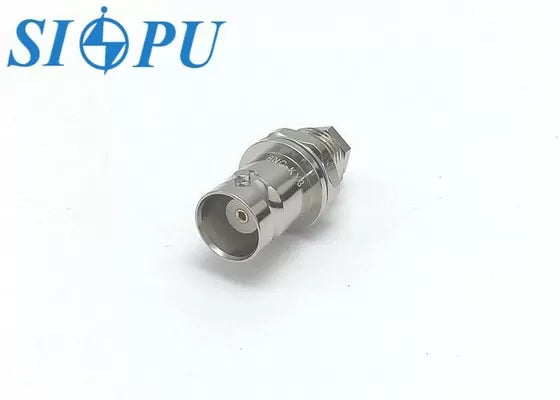

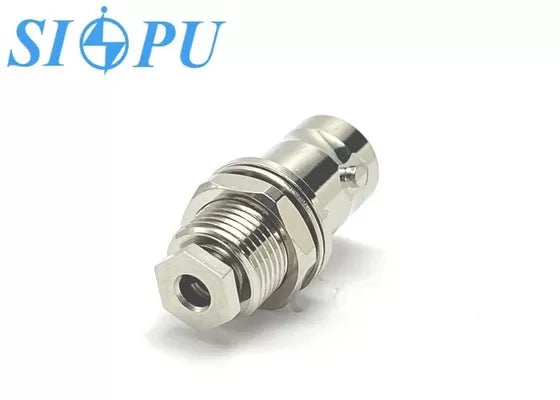

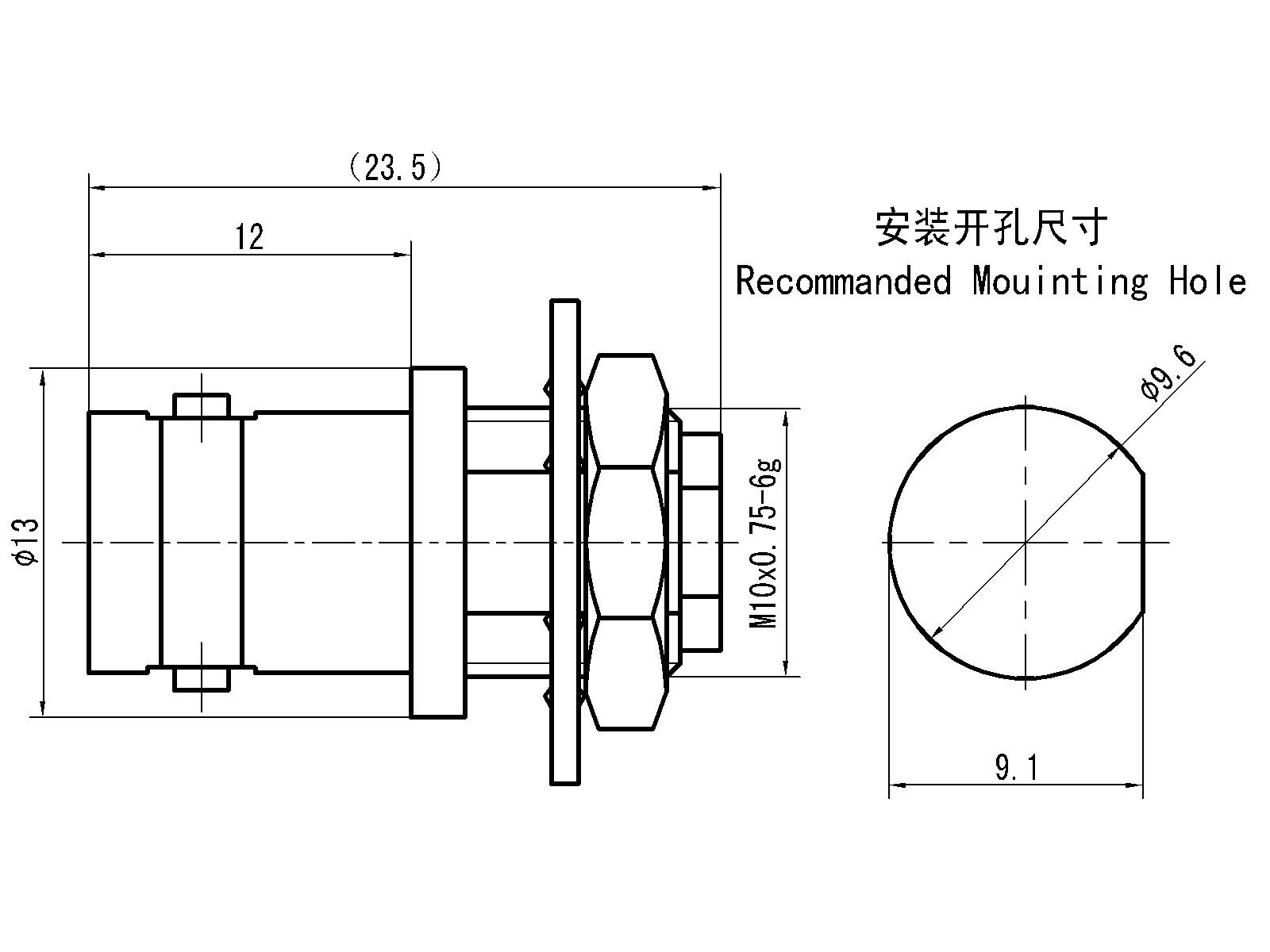

BNC Female RF Coaxial Connector – Thread Mount, for RG316/U Cable

BNC Female RF Coaxial Connector – Thread Mount, for RG316/U Cable

Model: BNC-KY3-1

The BNC series is a bayonet-style RF coaxial connector, developed and manufactured in accordance with MIL-C-39012/16–24 standards. It features quick connect/disconnect capability and reliable electrical contact, making it fully interchangeable with similar international products. This series is particularly well-suited for applications requiring frequent connection and disconnection.

Applications:
Widely used in electronic instruments, radio equipment, and the transmission of analog or digital video signals.

Product Features:

• Thread-mounted female connector
• Compatible with RG316/U coaxial cable
• Bayonet coupling mechanism for fast and secure connection
• Reliable electrical contact with good vibration resistance
• Ideal for compact, mobile, or frequently accessed RF systems

🔧 Technical Specifications

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-4GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
	Outer conductor	≤0.2mΩ	Durability	500times

⚙ Materials & Finish

Center conductor	Beryllium bronze, gold plating	Insulating medium	PTFE
Outer conductor	Brass, nickel plating	/	/
