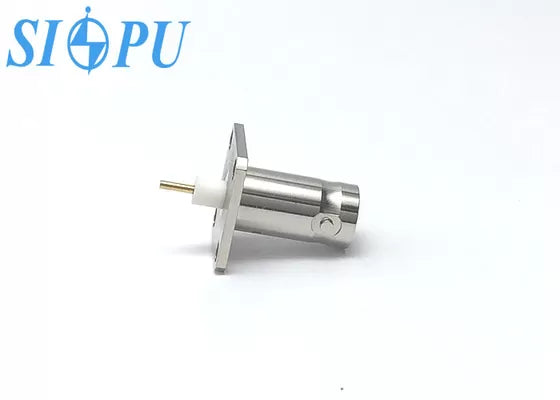

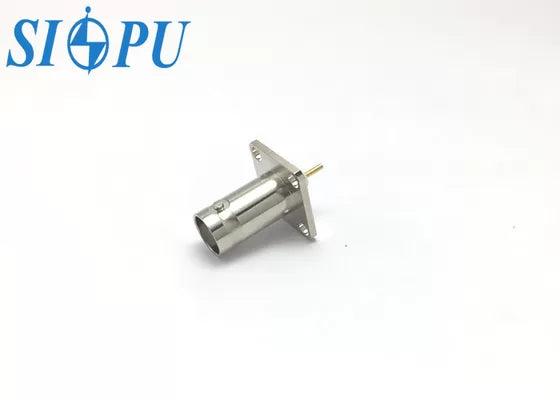

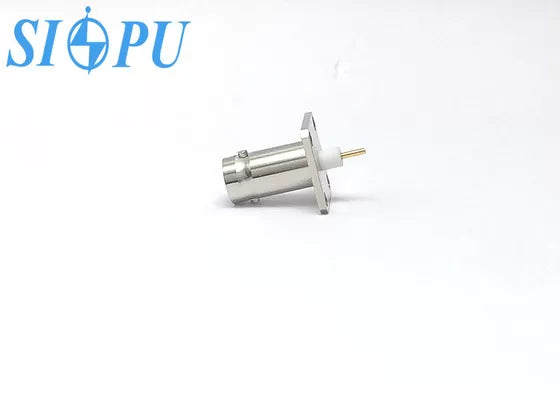

BNC Female RF Coaxial Connector – Microstrip, Flange Mounted
BNC Female RF Coaxial Connector – Microstrip, Flange Mounted
Regular price
$3.40 USD
Regular price
Sale price
$3.40 USD
Quantity
Couldn't load pickup availability

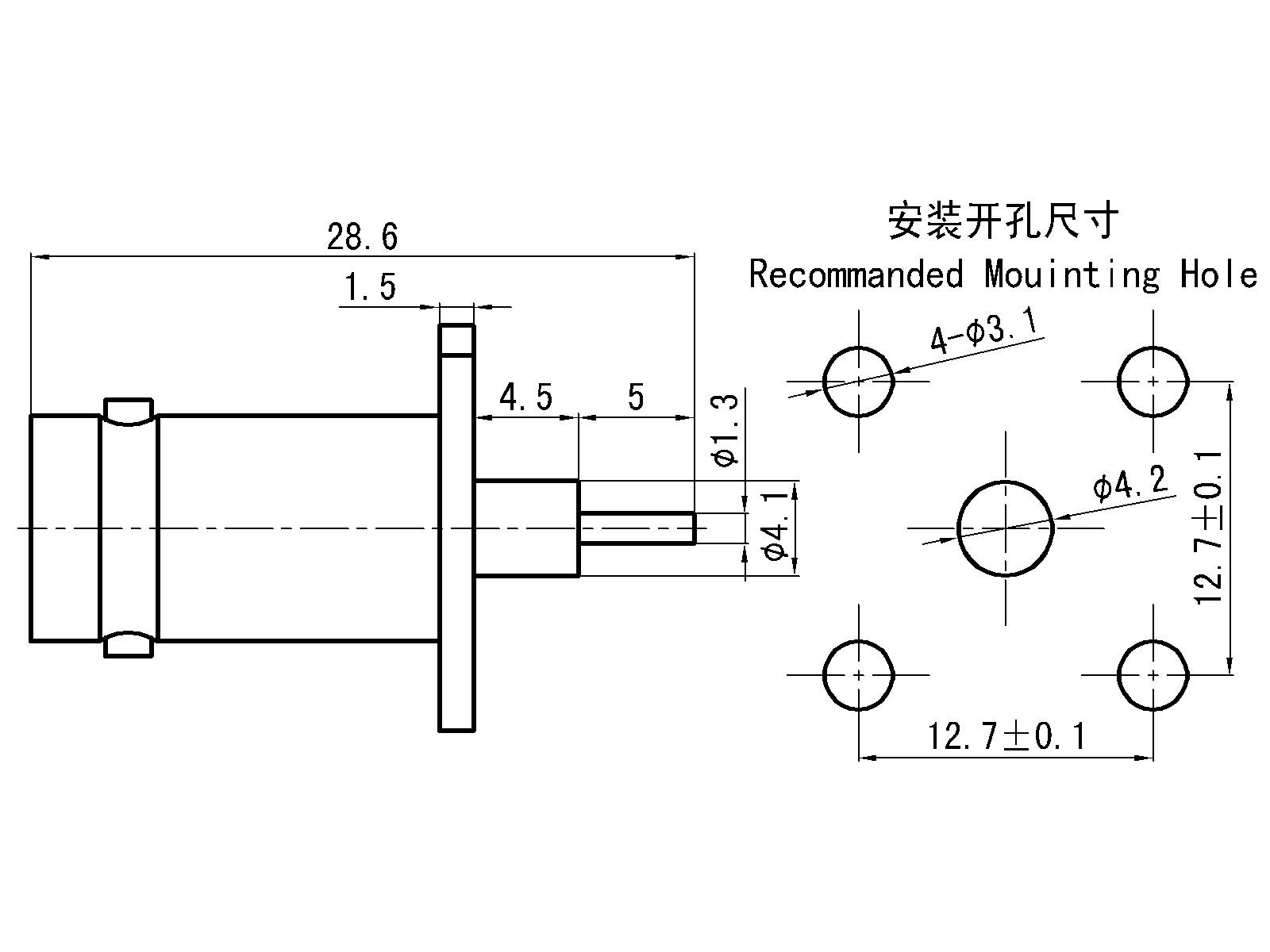

BNC Female RF Coaxial Connector – Microstrip, Flange Mounted
Model: BNC-50KFD13
The BNC series is a bayonet-style RF coaxial connector developed in accordance with MIL-C-39012/16-24 standards and is interchangeable with similar international products. It is known for fast, secure connections and reliable electrical contact.
Applications
Widely used in wireless transmission systems, electronic instrumentation, and analog or digital video signal transmission.
Product Features
- Four-hole flange-mounted microstrip socket
- Quick bayonet coupling mechanism for fast and secure connection
- Reliable contact with excellent vibration resistance
- Suitable for compact PCB integration and stable signal performance
🔧 Technical Specifications
|
Electrical property |
Temperature range | -55～+165℃ | ||
|
Characteristic impedance |
50Ω | Frequency range | DC-4GHz | |
|
Dielectric withstanding voltage |
1500V | VSWR | ≤1.3 | |
|
Insulation resistance |
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
| Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
⚙ Materials & Finish
|
Center conductor |
Bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor |
Brass, nickel plating | / | / |
