BNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable
BNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable
Regular price
$3.40 USD
Regular price
Sale price
$3.40 USD
Quantity
Couldn't load pickup availability

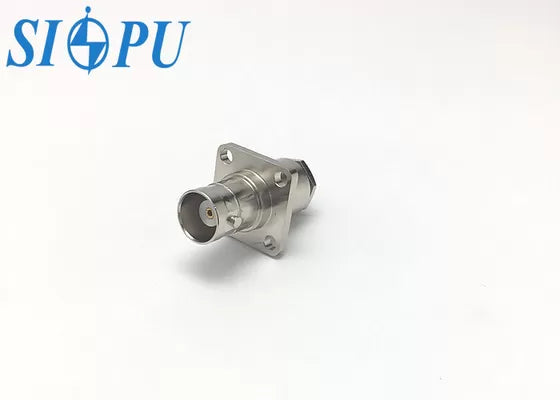

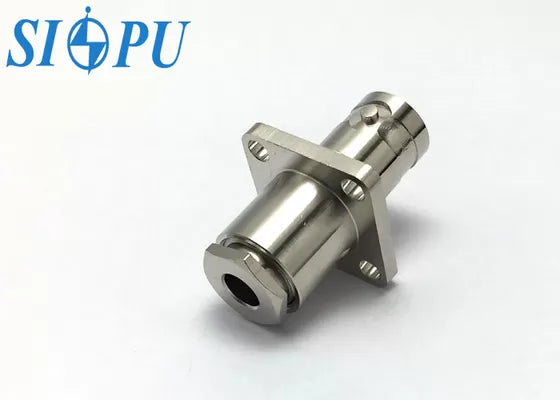

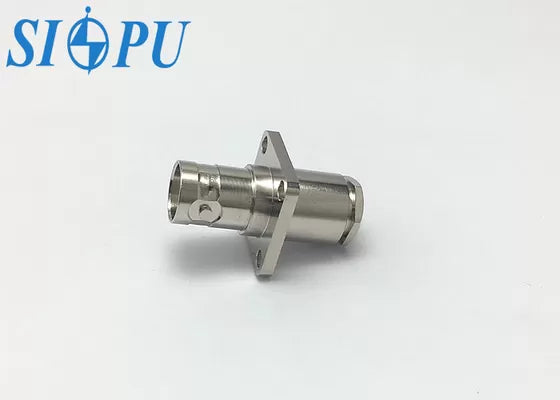

BNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable
Model: BNC-KF3
The BNC connector is a low-power, bayonet-style RF coaxial interface designed for quick and secure connections. Its easy connect/disconnect mechanism makes it ideal for applications requiring frequent reconnections.
Applications:
Widely used in electronic instrumentation, radio systems, and both analog and digital video signal transmission.
Key Features:

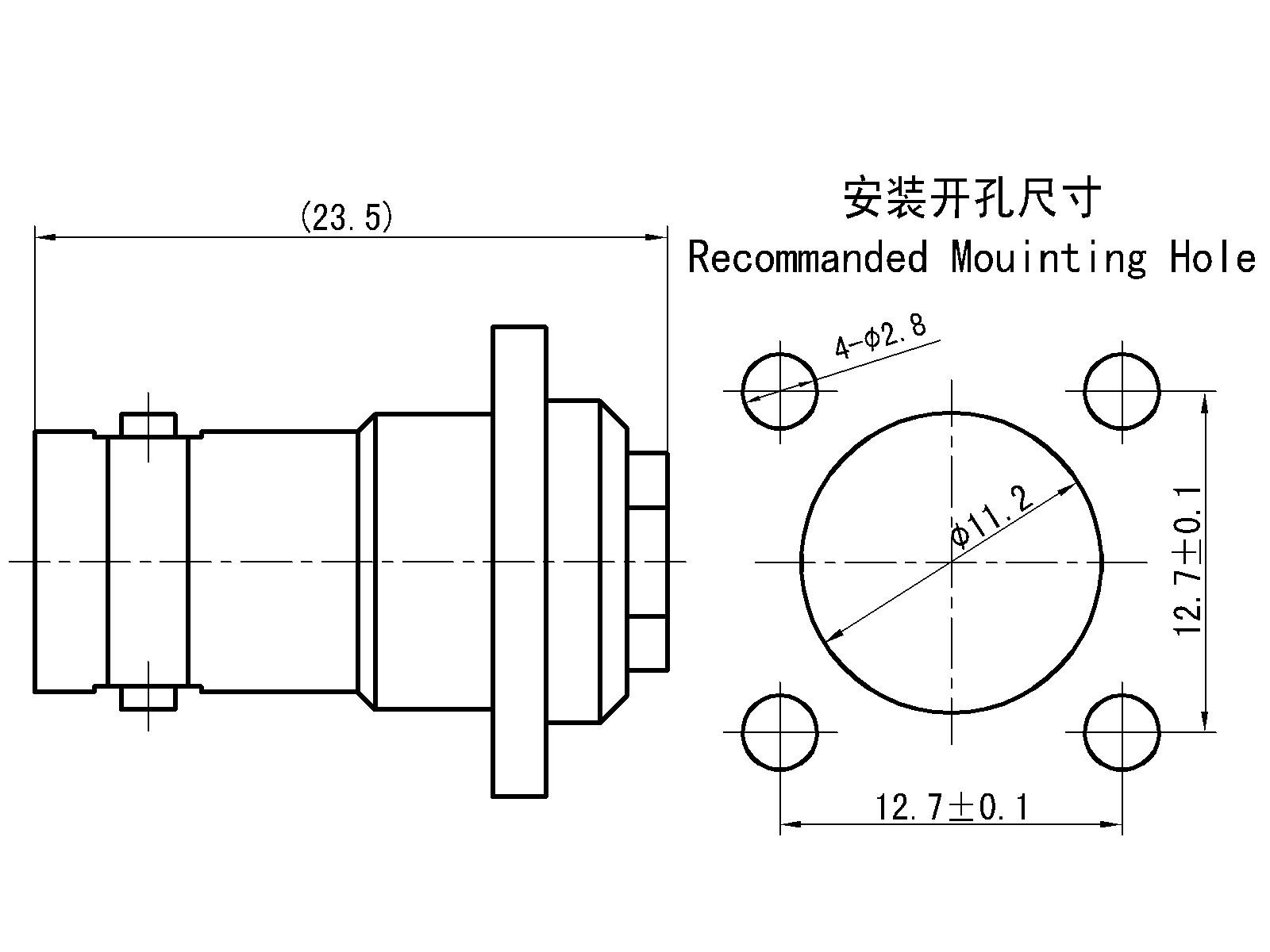

- Four-hole flange-mounted design
- Compatible with RG316/U coaxial cable
- Secure and reliable contact
- Excellent vibration resistance
- Quick and efficient mating/unmating
🔧 Technical Specifications
|
Electrical property |
Temperature range | -55～+165℃ | ||
|
Characteristic impedance |
50Ω | Frequency range | DC-4GHz | |
|
Dielectric withstanding voltage |
1500V | VSWR | ≤1.3 | |
|
Insulation resistance |
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
| Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
⚙ Materials & Finish
|
Center conductor |
Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor |
Brass, nickel plating | / | / |
