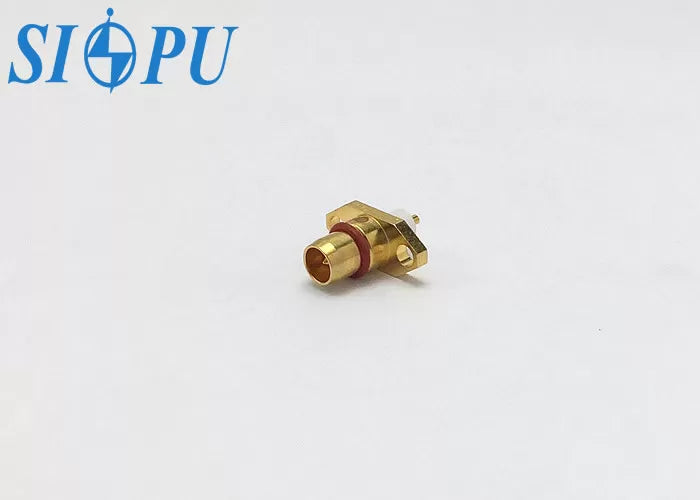

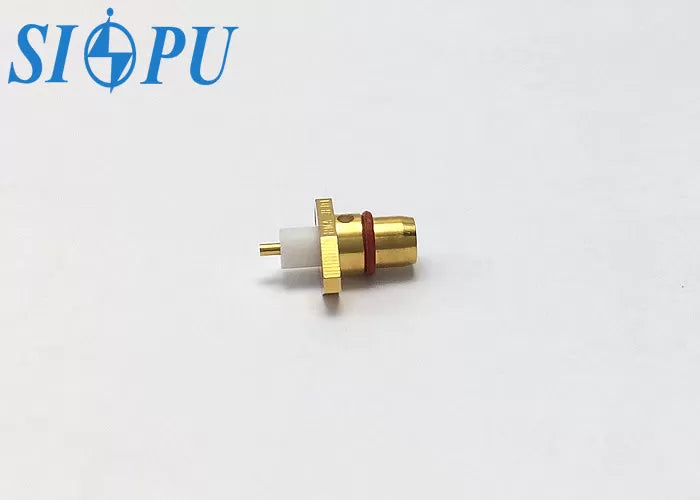

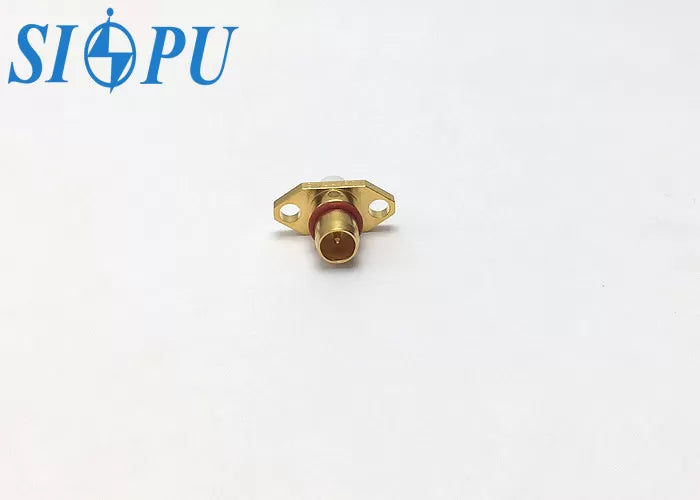

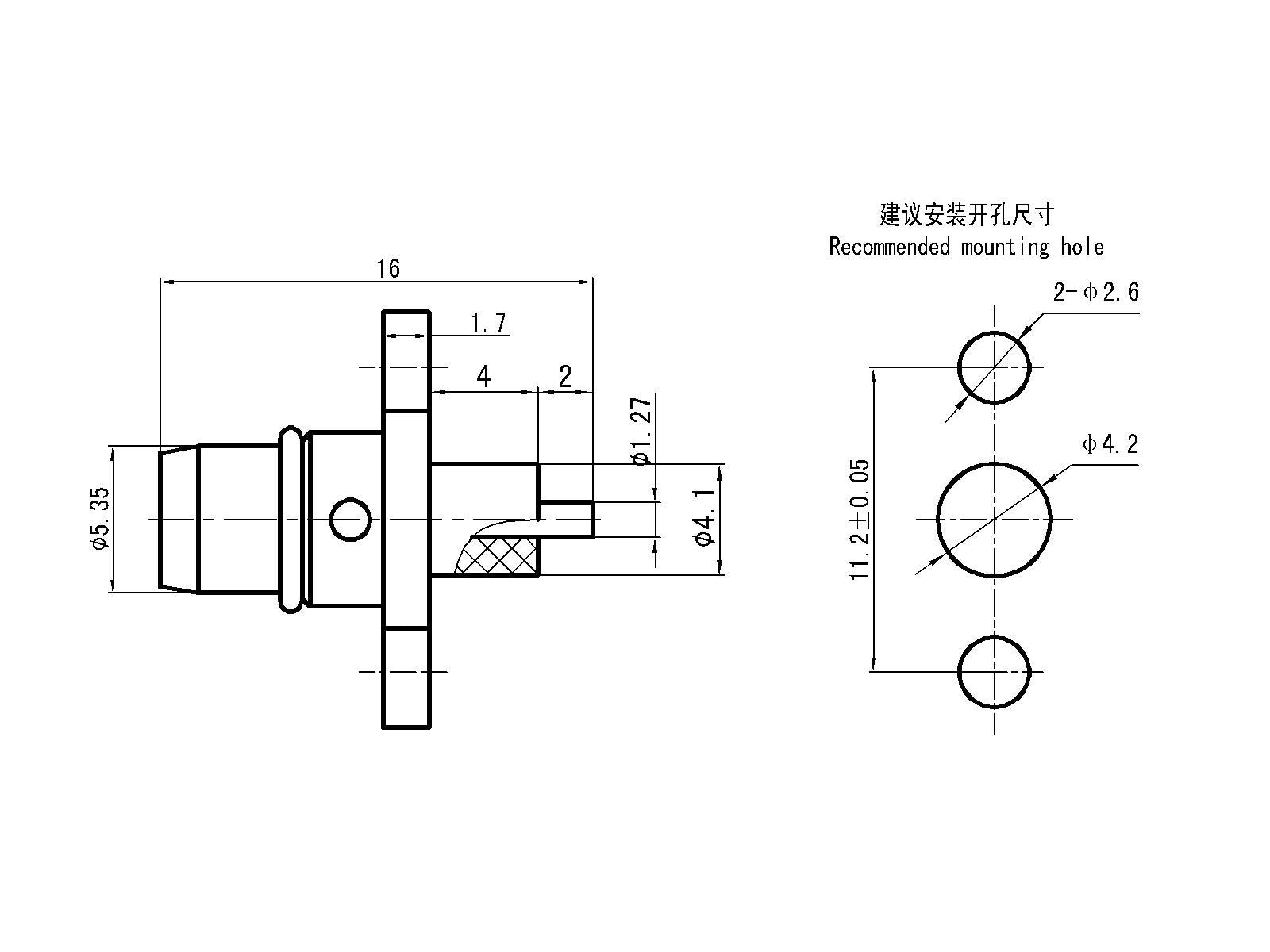

BMA RF Coaxial Connector – Straight Microstrip Type, Two-Hole Flange Mount

Model:BMA-JFD1

Product Overview

The BMA series RF coaxial connector, also known as a blind-mate connector, is designed for high-frequency microwave circuit interconnections. It is especially well-suited for blind mating between chassis and cabinet modules in compact, modular systems. The connector complies with IEC 61169-33 standards, ensuring reliable performance and system compatibility.

Applications

Modular radar systems
Cabinet-to-chassis interconnections
Wireless communication equipment
High-frequency microwave subsystems

Product Features

Straight microstrip interface
Two-hole flange mount for secure installation
Blind-mate slide-on design for fast and easy docking
Operating frequency up to 18 GHz
Compact size with superior electrical performance

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-55～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.15+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.08√F(GHz)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Sealing ring

Silicon rubber

Product Specifications BMA RF Coaxial Connector – Straight Microstrip Type, Two-Hole Flange Mount 0
