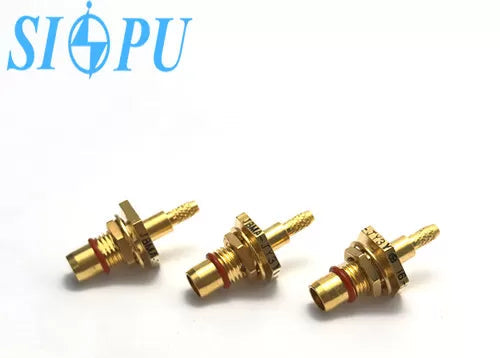

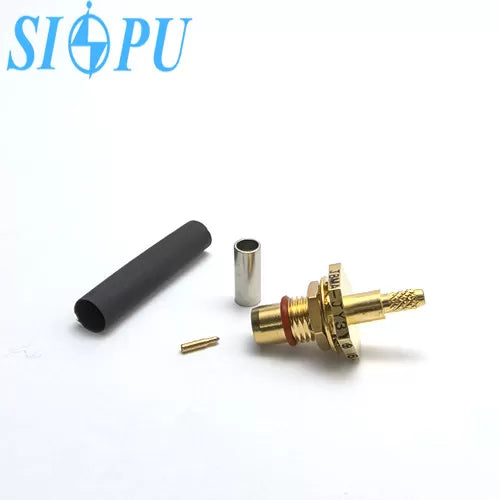

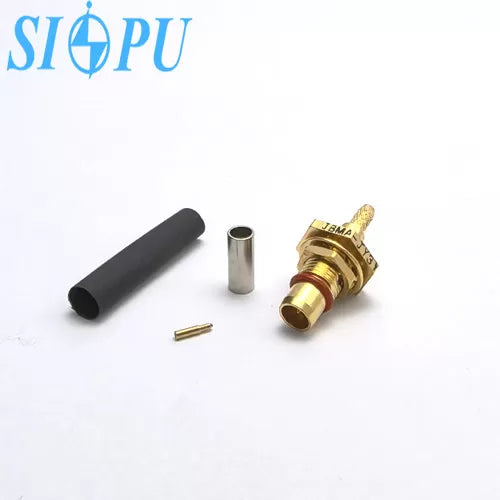

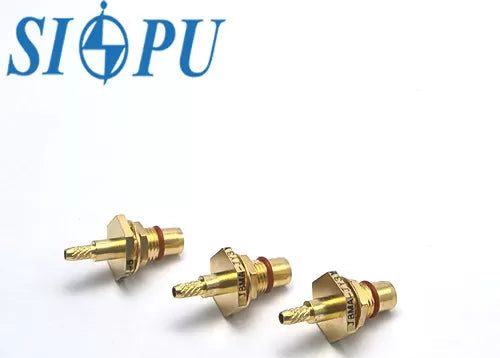

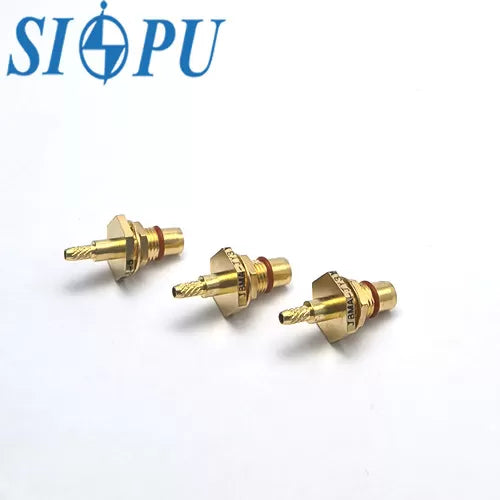

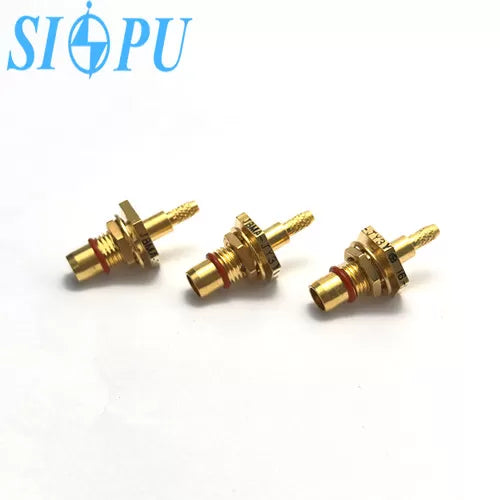

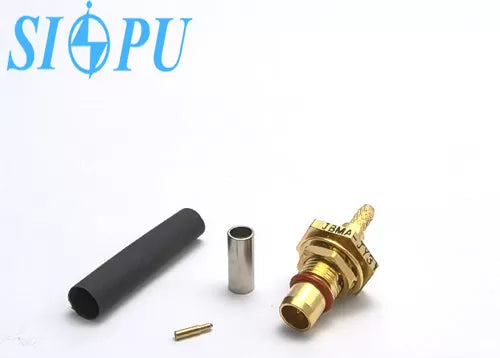

BMA Male RF Coaxial Connector – Threaded Mount, Compatible With RG316/U Cable

Name: BMA Male RF Coaxial Connector – Threaded Mount, Compatible With RG316/U Cable
Brand: SIPU CONNECTORS
Price: 0.88 USD
Availability: InStock

$0.88 USD

Sale Sold out

BMA Male RF Coaxial Connector – Threaded Mount, Compatible With RG316/U Cable

Model:BMA-JY3Y

Product Overview

The BMA series is a blind-mate, slide-on RF coaxial connector known for its compact size and high reliability. It features a spring-loaded contact structure that ensures stable mechanical engagement and excellent electrical performance. This connector is ideal for modular system integration where quick, alignment-free mating is required.

Application Scope

Module-to-module connections in chassis and cabinets
Radar and microwave communication systems
Aerospace and defense equipment

Product Features

Straight male BMA connector
Threaded mount for secure installation
Compatible with 2# flexible cable RG316/U
Compact design with wide bandwidth capability
Quick and easy blind docking with reliable contact

🔧 Technical Specifications

Important Technical Parameters

Electrical property			Temperature range	-55～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.15+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	/
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Sealing ring

Silicon rubber

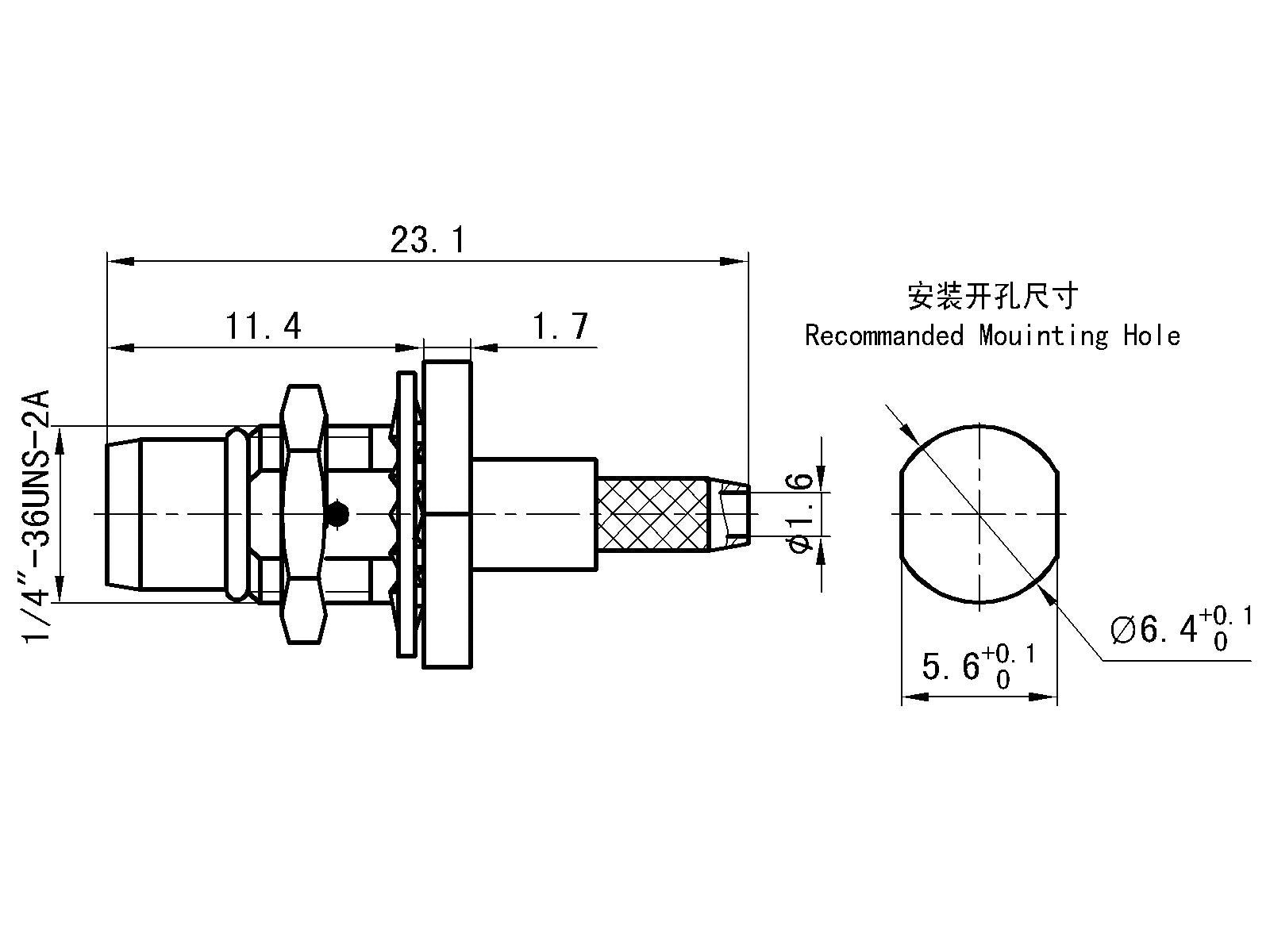

Product Specifications BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable 0
